1.产 品 资 料 介 绍：
ACS800-01-0020-3 逆变器产品特点
开头
- 搭载 DTC 直接转矩控制，转矩响应速度快，启停运行平稳无冲击
- 三相 380-415V 标准输入，重载 / 轻载多电流档位适配不同负载
- 内置 EMC 滤波器与直流电抗器，抑制谐波，降低电网干扰
- 集成制动斩波器，惯性负载快速减速，无需额外制动单元
- 0-300Hz 宽调频区间，可适配高速主轴、精密传送设备电机
- 模块化拓展插槽，可加装编码器、现场总线模块拓展功能
- 标配丰富数字 / 模拟 I/O 通道，便捷对接传感器与主控系统
- IP21 整机防护等级，防尘防溅，适配普通车间安装环境
- 内置多功能保护回路，过流、过压、过热、缺相自动停机告警
- 自带可视化操作面板，参数设置、故障代码读取直观简单
- 内置简易 PLC 可编程功能，可独立完成基础工艺逻辑控制
- 整机运行效率高达 98%，长期工作能耗低，节约用电成本
- 宽温运行设计，-15℃至 50℃环境稳定输出，高温自动降容保护
- 壁挂紧凑机身，轻量化结构，现场安装布线占用空间小
- 符合 CE、UL、RoHS 多重标准，满足设备整机合规出厂要求
结尾
ACS800-01-0020 -3逆变器 产品英文
ACS800-01-0020-3 Inverter Product Features
beginning
ACS800-01-0020-3 is an ABB industrial wall mounted inverter equipped with DTC direct torque control technology. It has a power of 15kW and is suitable for various industrial motors. It has precise speed regulation and complete protection, and is suitable for long-term continuous driving conditions on production lines.
Equipped with DTC direct torque control, the torque response speed is fast, and the start stop operation is smooth without impact
Three phase 380-415V standard input, suitable for different loads with multiple current levels for heavy/light loads
Built in EMC filter and DC reactor to suppress harmonics and reduce power grid interference
Integrated brake chopper, fast deceleration of inertial load, no need for additional braking unit
0-300Hz wide frequency range, suitable for high-speed spindles and precision transmission equipment motors
Modular expansion slot, capable of adding encoders and fieldbus module expansion functions
Equipped with rich digital/analog I/O channels as standard, convenient for connecting sensors and the main control system
IP21 overall protection level, dustproof and splash proof, suitable for installation environment in ordinary workshops
Built in multifunctional protection circuit, automatic shutdown alarm for overcurrent, overvoltage, overheating, and phase loss
Equipped with a visual operation panel, parameter settings and fault code reading are intuitive and simple
Built in simple PLC programmable function, capable of independently completing basic process logic control
The overall operating efficiency of the machine is as high as 98%, with low long-term energy consumption, saving electricity costs
Wide temperature operation design, stable output in -15 ℃ to 50 ℃ environment, automatic capacity reduction protection at high temperature
Wall mounted compact body, lightweight structure, small space occupation for on-site installation and wiring
Compliant with multiple standards including CE, UL, and RoHS, meeting the factory compliance requirements for the entire equipment
ending
ACS800-01-0020-3 inverter has strong control performance, flexible expansion, and comprehensive protection. It is a universal and reliable driving unit for assembly lines, fans, and precision transmission equipment.

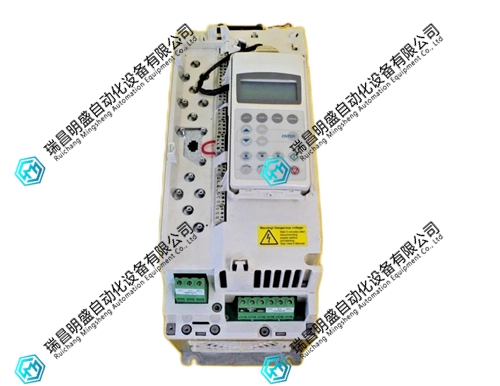

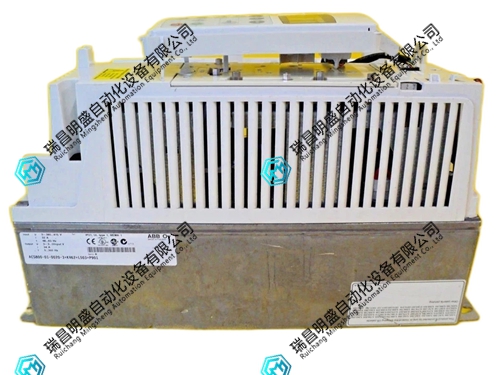

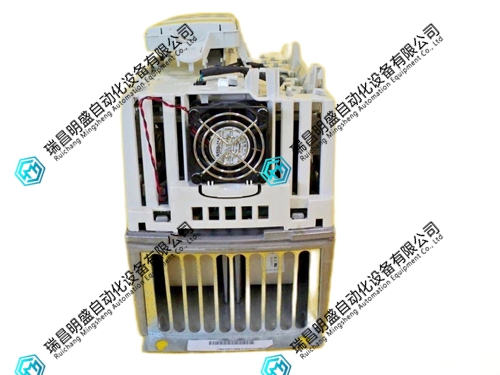

ACS800-01-0020 -3逆变器 产品展示
