1.产 品 资 料 介 绍：
ADLINK CPCI-6503VED 单板计算机产品特点
- 标准 6U CompactPCI 架构，适配工业标准机箱背板
- 搭载低功耗嵌入式处理器，长时间运行发热量低
- 板载大容量 DDR3 内存，数据运算缓存充足稳定
- 双路千兆以太网口，满足多设备高速数据交互
- 集成 VGA+LVDS 双显示输出，可双屏同步工作
- 多路 RS232/485 串口，适配各类工业外设通讯
- 自带 SATA 存储接口，可加装 SSD 本地存数据
- 前置 USB2.0 拓展口，调试外设插拔便捷
- 支持配套后置 RTM 转接板，简化机柜内部布线
- 宽温工业级设计，高低温车间工况连续运行
- 整机加固 PCB 与锁紧拉手，抗震抗冲击能力强
- 内置 SEMA 设备管理功能，远程监控整机状态
- 支持 Windows、Linux、VxWorks 多工业操作系统
- 可选防潮三防涂层，适配粉尘潮湿生产环境
- 模块化插拔结构，故障快速更换，缩短维修时长ADLINK CPCI-6503VED 单板计算机为工控、测试设备专用主控板，算力均衡、拓展性强、环境适应性优异。
ADLINK CPCI-6503VED 单板计算机 产品英文
ADLINK CPCI-6503VED Single Board Computer Product Features
Standard 6U CompactPCI architecture, compatible with industrial standard chassis backboards
Equipped with a low-power embedded processor, it generates low heat during long-term operation
Onboard large capacity DDR3 memory, sufficient and stable data operation cache
Dual Gigabit Ethernet ports meet the high-speed data exchange needs of multiple devices
Integrated VGA+LVDS dual display output, capable of dual screen synchronous operation
Multi channel RS232/485 serial port, compatible with various industrial peripheral communication
Comes with SATA storage interface, can be equipped with SSD for local data storage
Front USB 2.0 expansion port, easy to debug and plug in peripherals
Support supporting rear RTM adapter board to simplify internal wiring of the cabinet
Wide temperature industrial grade design, continuous operation of high and low temperature workshop conditions
The whole machine is reinforced with PCB and locking handle, with strong seismic and impact resistance
Built in SEMA device management function, remote monitoring of the overall machine status
Supports multiple industrial operating systems including Windows, Linux, and VxWorks
Optional moisture-proof three proof coating, suitable for dusty and humid production environments
Modular plug-in structure, quick replacement of faults, and shortened maintenance time
ADLINK CPCI-6503VED single board computer is a dedicated main control board for industrial control and testing equipment, with balanced computing power, strong scalability, and excellent environmental adaptability.

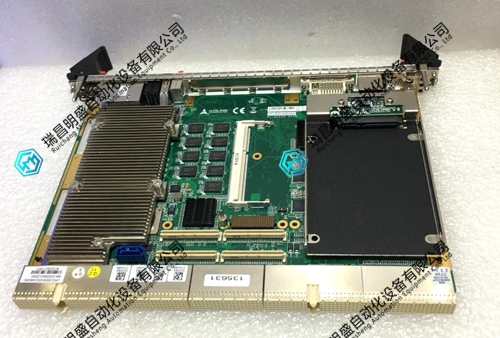

ADLINK CPCI-6503VED 单板计算机 产品展示
