1.产 品 资 料 介 绍：
HP DMC-2142-DC24 运动控制板
- 四轴独立运动控制通道，伺服、步进电机可混合搭配驱动
- DC24V 直流供电规格，适配半导体设备机柜标准供电回路
- 32 位高速运算芯片，伺服闭环刷新周期短，定位响应迅速
- 内置 PID 加前馈调节算法，平台启停无抖动，重复精度高
- 支持直线、圆弧插补、电子凸轮、电子齿轮多种运动模式
- 大容量非易失存储，可存储多组运动程序，断电不丢失参数
- 八路隔离数字输入输出，可对接限位、传感器、触发信号
- 兼容正交、SSI 多类编码器，高速位置反馈无信号失真
- 多任务并行运行，可同时执行 8 套独立运动控制程序
- 金属屏蔽板体，隔绝射频、变频器干扰，适配无尘车间
- 配套专用调试软件，波形观测、参数整定操作简单直观
- 丰富开发 API 接口，支持工控程序二次开发自动化逻辑
- 集成过流、过压、超行程多重硬件保护，故障自动停机
- 标准插槽式安装，设备内部拆装替换便捷，检修省时
- 工业宽温元器件，长期连续满载运行稳定，适配精密检测设备HP DMC-2142-DC24 运动控制板多轴同步性能稳定，是半导体、精密自动化设备专用运动控制备件
HP DMC-2142-DC24 运动控制板 产品英文
HP DMC-2142-DC24 Motion Control Board
Four axis independent motion control channel, servo and stepper motors can be mixed and driven together
DC24V DC power supply specification, suitable for semiconductor equipment cabinet standard power supply circuit
32-bit high-speed computing chip, short servo closed-loop refresh cycle, fast positioning response
Built in PID and feedforward adjustment algorithm, platform start stop without shaking, high repeatability accuracy
Supports multiple motion modes including linear interpolation, circular interpolation, electronic cam, and electronic gear
Large capacity non-volatile storage, capable of storing multiple sets of motion programs without losing parameters during power outages
Eight isolated digital inputs and outputs, capable of docking with limit switches, sensors, and trigger signals
Compatible with orthogonal and SSI encoders, high-speed position feedback without signal distortion
Multi task parallel operation, capable of executing 8 independent motion control programs simultaneously
Metal shielding plate body, isolated from RF and frequency converter interference, suitable for dust-free workshops
Equipped with specialized debugging software, waveform observation and parameter tuning are simple and intuitive to operate
Rich development API interfaces, supporting secondary development of industrial control programs and automation logic
Integrated overcurrent, overvoltage, and overtravel multiple hardware protections, automatic shutdown in case of faults
Standard slot installation, easy internal disassembly and replacement of equipment, time-saving maintenance
Industrial wide temperature element device, stable long-term continuous full load operation, suitable for precision testing equipment
The HP DMC-2142-DC24 motion control board has stable multi axis synchronization performance and is a specialized motion control spare part for semiconductor and precision automation equipment

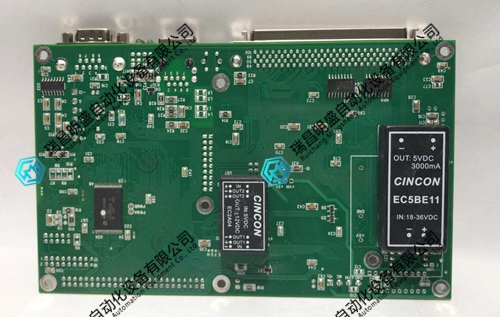

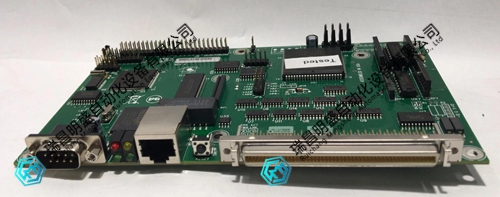

HP DMC-2142-DC24 运动控制板 产品展示
