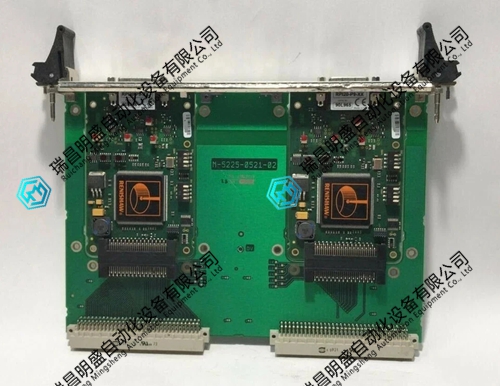

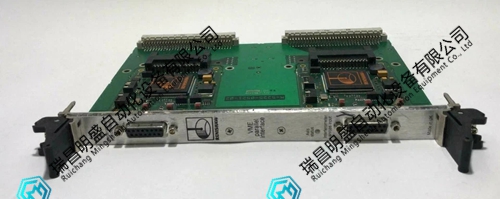

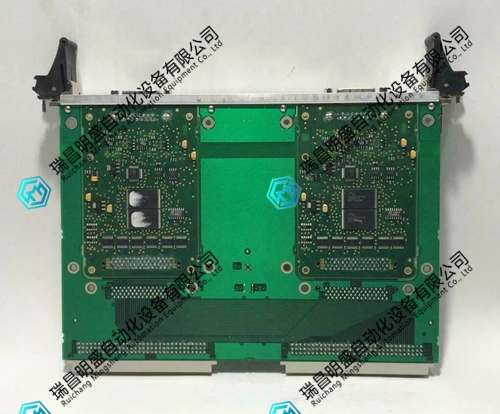

# RENSHAW M-5225-0521-02 并行接口板
RENSHAW M-5225-0521-02 是光栅读数头配套信号转接板，用于机床数控系统位置信号并行传输。
1. 适配雷尼绍光栅系统，M-5225-0521-02 线路匹配
2. 多路并行信号同步传输，位置反馈延迟低
3. 信号隔离电路，屏蔽机床伺服电磁干扰
4. 镀金信号触点，长期插拔接触稳定不丢脉冲
5. 兼容增量式光栅读数头，细分信号转换精准
6. 过压、静电防护，保护光栅与数控主板
7. 强弱电分区走线，减少脉冲信号串扰失真
8. 工业耐温基材，车间高低温工况稳定工作
9. 标准插槽直插结构，拆装更换简单快捷
10. 支持多轴光栅信号集中转接，布线简洁
11. 实时脉冲自检，快速排查断线、接触故障
12. 低脉冲损耗，保证机床定位重复精度
13. 紧凑型板体，控制柜狭小空间易安装
14. 抗震加固孔位，设备切削震动不偏移参数
15. 出厂脉冲全通道检测，输出性能统一
综上，RENSHAW M-5225-0521-02 并行接口板信号传输稳定、抗干扰能力强，是精密加工机床光栅检测核心转接备件。
RENSHAW M-5225-0521-02 并行接口板 产品英文
#RENSHAW M-5225-0521-02 Parallel Interface Board
RENSHAW M-5225-0521-02 is a signal adapter board for grating reading heads, used for parallel transmission of position signals in machine tool CNC systems.
1. Compatible with Renishaw grating system, M-5225-0521-02 line matching
2. Synchronized transmission of multiple parallel signals with low position feedback delay
3. Signal isolation circuit, shielding machine tool servo electromagnetic interference
4. Gold plated signal contacts, stable contact without losing pulse after long-term plugging and unplugging
5. Compatible with incremental grating reading heads, precise subdivision signal conversion
6. Overvoltage and static protection, protecting gratings and CNC motherboards
7. Strong and weak current zoning routing to reduce pulse signal crosstalk distortion
8. Industrial temperature resistant substrate, stable operation under high and low temperature conditions in the workshop
9. Standard slot direct insertion structure, easy and fast disassembly and replacement
10. Support centralized conversion of multi axis grating signals, with simple wiring
11. Real time pulse self-test for quick troubleshooting of wire breakage and contact faults
12. Low pulse loss ensures the repeatability accuracy of machine tool positioning
13. Compact board body, easy to install in narrow space of control cabinet
14. Seismic reinforcement hole position, equipment cutting vibration without displacement parameters
15. Factory pulse full channel detection, unified output performance
In summary, the RENSHAW M-5225-0521-02 parallel interface board has stable signal transmission and strong anti-interference ability, making it a core adapter spare for precision machining machine tool grating detection.
