Kawasaki TS220-D511S控制器组件

Kawasaki TS220-D511S控制器组件

1.产 品 资 料 介 绍：

Kawasaki TS220-D511S控制器组件  产品英文介绍

Kawasaki TS220-D511S controller component, specifically designed to support the TS220 series clean wafer handling robotic arm, responsible for the entire robotic arm motion logic and servo scheduling.

1. Integrated multi axis servo scheduling, synchronously controlling the rotation, lifting, and telescopic axes to ensure smooth wafer loading and unloading trajectories;

2. Equipped with a dedicated motion algorithm for clean robots, it can automatically optimize acceleration and deceleration curves to reduce the risk of silicon wafer vibration and debris;

3. Complete safety interlock logic, connect machine door interlock and emergency stop signals, and quickly lock the mechanical arm in abnormal states;

4. Equipped with exclusive KRET control software, the point program can be quickly edited and backed up, making it convenient for production line debugging and maintenance;

5. Compatible with SEMI communication protocol, real-time interaction with EFEM controller through network port, reporting robot status and alarm information.

1. Controllable number of axes: up to 5 axes linked together;

2. Communication interface: Ethernet+digital I/O;

3. Input power supply: single-phase AC200V;

4. Supporting robotic arm model: TS220 series wafer robot;

5. Working environment temperature: 5-40 ℃.

1. Complete control of wafer handling robot in semiconductor EFEM unit;

2. Control of wafer transfer between FOUP and pre aligner;

3. Movement scheduling of front-end loading and unloading robotic arms for etching and deposition equipment;

4. Collaborative positioning of robotic arms for wafer pre alignment process;

5. Program management and status monitoring of dust-free automation unit robots.

This TS220-D511S is the brain of the TS220 robotic arm, which performs the entire wafer handling operation and safety protection. It is the core control spare part of semiconductor front-end equipment

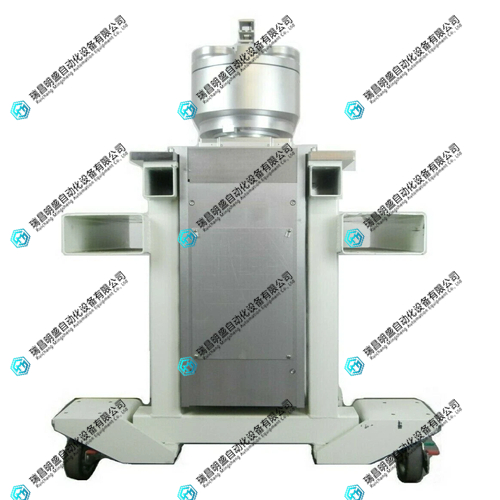

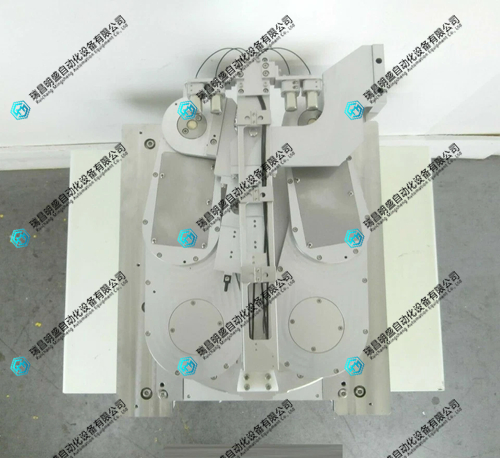

Kawasaki TS220-D511S控制器组件  产品展示
