TEL PDS-BX04E2954 印刷电路板 产品英文介绍

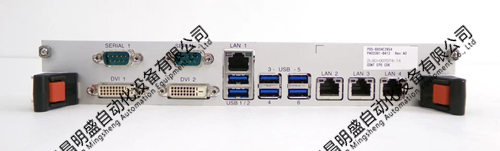

TEL PDS-BX04E2954 Printed Circuit Board
Product Features:
1. Multi layer high-density PCB wiring ensures low signal transmission delay and stable transmission and reception of various sensing signals on the machine
2. The original components are welded and undergo high and low temperature aging tests before leaving the factory, with strong anti-interference ability in the electromagnetic environment of the cavity
3. On board multi-channel I/O signal processing, which can synchronously collect and feedback device action and status information
4. The surface of the board is protected against corrosion, which can withstand a small amount of process gas erosion in the workshop and extend its service life
5. Standard board size and interface definition, easy on-site plugging and replacement, no need to modify the original machine circuit
Product Parameters:
1. Material model: PDS-BX04E2954
2. Board type: multi-layer signal control PCB board
3. Working voltage: 24V DC
4. Signal interface: Multiple sets of digital I/O ports
5. Compatible equipment: TEL semiconductor etching process machine
Application fields:
1. TEL etching machine cavity signal acquisition and logic control
2. Signal transmission and processing of wafer carrier stage motion status
3. Summary of pressure and temperature sensor signals in the process chamber
4. Control of machine interlock safety circuit signals
5. Replacement and maintenance of spare parts for TEL etching equipment control board
This TEL PDS-BX04E2954 printed circuit board is a signal control board for etching machines, responsible for signal interaction between various sensors and actuators, ensuring the orderly operation of the entire process. By checking the model, it can be directly replaced on the machine.
