KLA Tencor 710-611538-000 电源模块
1.产 品 资 料 介 绍：
中文资料：
KLA Tencor 710-611538-000 电源模块 是专为 KLA Tencor 检测和量测设备设计的一款高可靠性电源组件，主要用于为设备内部的控制板、接口板、图像处理单元及运动平台等模块提供稳定的直流供电。该电源模块是710系列系统中的核心基础部件，常用于精密仪器系统中对电压、电流、滤波和保护性能要求极高的场合。
一、产品概况
产品型号：710-611538-000
类型：电源模块（Power Supply Module）
制造商：KLA Tencor
应用范围：供电与稳压，适配710系列控制系统内部模块
二、主要功能
多路直流输出供电
提供多种电压等级（如 +5V, +12V, -12V, +24V 等），适用于各类数字/模拟电路。
支持驱动控制板、传感器接口、电机控制器、摄像头模块等部件。
高稳定性与电压精度
保证在满载与负载波动下电压输出稳定，确保检测系统数据可靠性。
保护机制完善
具备过压、过流、短路、温度过高等保护功能，提升系统运行安全性。
电磁兼容设计（EMC）
抗干扰能力强，有助于降低信号噪声，提高图像和测量系统稳定性。
三、产品应用领域
1. 晶圆检测系统（Wafer Inspection）
为运动平台控制器、图像采集卡、激光控制系统供电。
稳定供电可避免检测图像抖动与误触发。
2. 光学量测系统（Metrology Equipment）
为干涉仪模块、Z轴控制板、反馈回路等提供稳压支持。
3. 自动化处理平台
支持晶圆搬运单元、机械臂控制模块和安全联锁电路的供电需求。
4. 图像采集与处理系统
保证图像采集卡、信号放大器、同步触发模块的电力连续性。
英文资料：
The KLA Tencor 710-611538-000 power module is a high reliability power component designed specifically for KLA Tencor detection and measurement equipment. It is mainly used to provide stable DC power supply for internal modules such as control boards, interface boards, image processing units, and motion platforms. This power module is the core basic component of the 710 series system, commonly used in precision instrument systems with extremely high requirements for voltage, current, filtering, and protection performance.
1、 Product Overview
Product model: 710-611538-000
Type: Power Supply Module
Manufacturer: KLA Tencor
Application scope: Power supply and voltage regulation, compatible with internal modules of 710 series control systems
2、 Main functions
Multi channel DC output power supply
Provide multiple voltage levels (such as+5V,+12V, -12V,+24V, etc.), suitable for various digital/analog circuits.
Support components such as drive control board, sensor interface, motor controller, camera module, etc.
High stability and voltage accuracy
Ensure stable voltage output under full load and load fluctuations, and guarantee the reliability of detection system data.
Improved protection mechanism
Equipped with protection functions such as overvoltage, overcurrent, short circuit, and high temperature, it enhances the safety of system operation.
Electromagnetic Compatibility Design (EMC)
Strong anti-interference ability helps to reduce signal noise and improve the stability of image and measurement systems.
3、 Product application areas
1. Wafer Inspection System
Power supply for the motion platform controller, image acquisition card, and laser control system.
Stable power supply can avoid detecting image jitter and false triggering.
2. Optical Measurement System (Metrology Equipment)
Provide voltage stabilization support for interferometer modules, Z-axis control boards, feedback loops, etc.
3. Automated processing platform
Support the power supply requirements for wafer handling units, robotic arm control modules, and safety interlock circuits.
4. Image acquisition and processing system
Ensure the power continuity of the image acquisition card, signal amplifier, and synchronous triggering module.

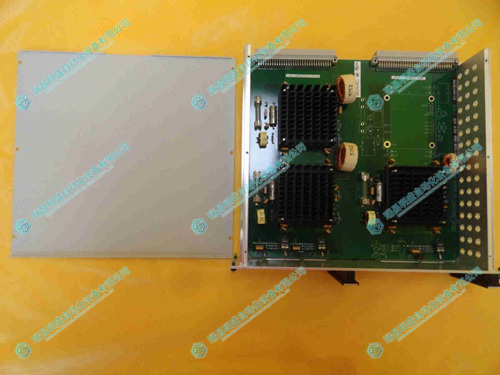

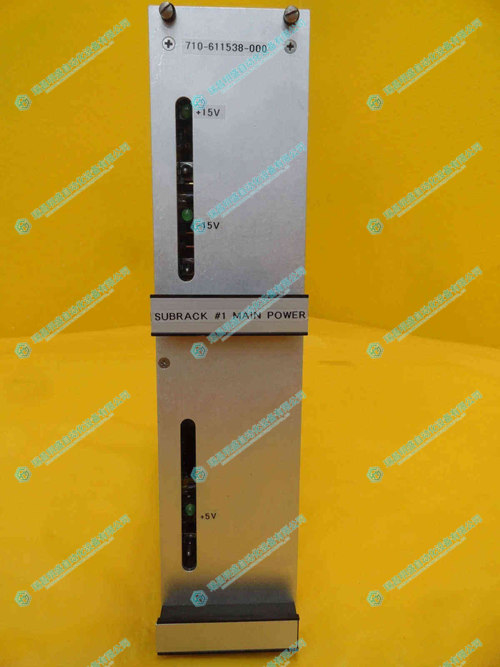

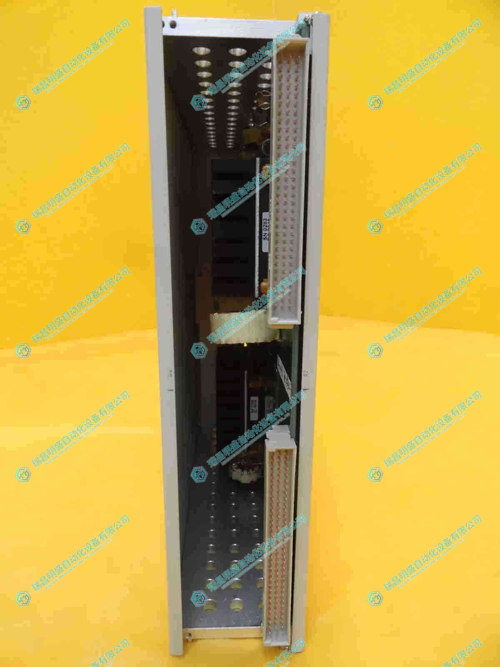

2.产 品 展 示
