1.产 品 资 料 介 绍：
- 6U 单高 VME 架构，单插槽占用，兼容标准 VME 背板。
- 16 路单端（SE）或 8 路差分（DI）模拟输入，可扩展至 32SE/16DI。
- 12 位 A/D 分辨率，线性度 ±0.5 LSB，保证采集精度。
- 输入范围：单极性 0–10V；双极性 ±5V、±10V。
- 板载电阻选增益：1、10、100、1000 四档，无需软件编程。
- 输入阻抗 ≥10 MΩ，最大输入电压 20V，共模电压 14V。
- 共模抑制比 ≥60dB，抗现场电磁干扰能力强。
- 采样吞吐量最高 20 kHz，满足中高速采集需求。
- 占用 1KB VME 短 I/O 地址空间，基址跳线可选。
- 支持中断触发转换，状态 / 控制寄存器可配置转换模式。
- 电源：+5V@1.6A（典型）/1.9A（最大），无额外辅助电源。
- 工作温度 0–65℃，存储 -40–80℃，适应工业环境。
- 兼容 Analog Devices 3B 系列信号调理模块，适配多种传感器。
- 支持单通道随机转换与多通道扫描，编程灵活。
- 广泛用于工业自动化、过程控制、数据采集、测试测量等场景。

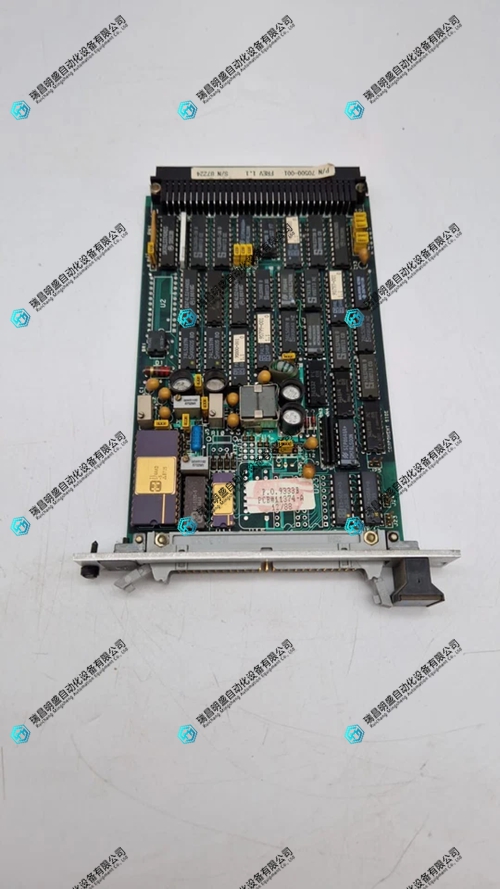

Xycom XVME-500/1处理器模块 英文资料：
XVME-500/1 is a classic 6U single high VME bus 12 bit analog input module from Xycom. It adopts a resistor selected gain design and is specifically designed for industrial high-precision analog signal acquisition.
6U single high VME architecture, single slot occupancy, compatible with standard VME backboards.
16 single ended (SE) or 8-differential (DI) analog inputs, expandable to 32SE/16DI.
12 bit A/D resolution, linearity ± 0.5 LSB, ensuring acquisition accuracy.
Input range: Unipolar 0-10V; Bipolar ± 5V, ± 10V.
On board resistor selection gain: 1, 10, 100, 1000 four levels, no software programming required.
Input impedance ≥ 10 M Ω, maximum input voltage 20V, common mode voltage 14V.
Common mode rejection ratio ≥ 60dB, strong resistance to on-site electromagnetic interference.
The maximum sampling throughput is 20 kHz, which meets the requirements of medium and high-speed data acquisition.
Occupy 1KB of VME short I/O address space, with optional base jumper.
Support interrupt triggered transitions, with configurable transition modes for status/control registers.
Power supply:+ 5V@1.6A (Typical)/1.9A (maximum), no additional auxiliary power supply.
Working temperature 0-65 ℃, storage -40-80 ℃, suitable for industrial environments.
Compatible with Analog Devices 3B series signal conditioning modules and compatible with various sensors.
Supports single channel random conversion and multi-channel scanning, with flexible programming.
Widely used in industrial automation, process control, data acquisition, testing and measurement scenarios.
