1.产 品 资 料 介 绍：
- 采用 6U VME 标准架构，单插槽占用，兼容 VMEbus A16/D08 (O) 规范。
- 8 路独立 D/A 输出通道，每通道可独立跳线配置输出模式。
- 12 位 D/A 分辨率，总误差 ≤ ±0.5 LSB，单调性有保证。
- 电压输出范围：0–5V、0–10V、±2.5V、±5V、±10V（单 / 双极性）。
- 电流输出范围：4–20mA 标准工业电流环。
- 每通道 300V 光电隔离，数字逻辑与模拟回路完全隔离，抗干扰极强。
- 板载独立 DC/DC 隔离电源，无需外部辅助电源。
- 每通道独立增益 / 偏置校准，可软件 / 硬件调零。
- 转换时间 42μs，电压稳定时间 8μs、电流 30μs，响应快速。
- 占用 1KB VME 短 I/O 地址空间，基址通过板载开关配置。
- 支持 VME 中断，含状态 / 控制寄存器与 LED 状态指示。
- 电源：+5V±5%，典型 2.6A（4–20mA 满负载）。
- 工作温度 0–65℃，存储 -40–85℃，湿度 5%–95%（非冷凝）。
- 尺寸 160mm×233.4mm，适配标准 VME 机箱。
- 典型应用：工业过程控制、阀门驱动、仪表校准、分布式控制系统、电力监控。

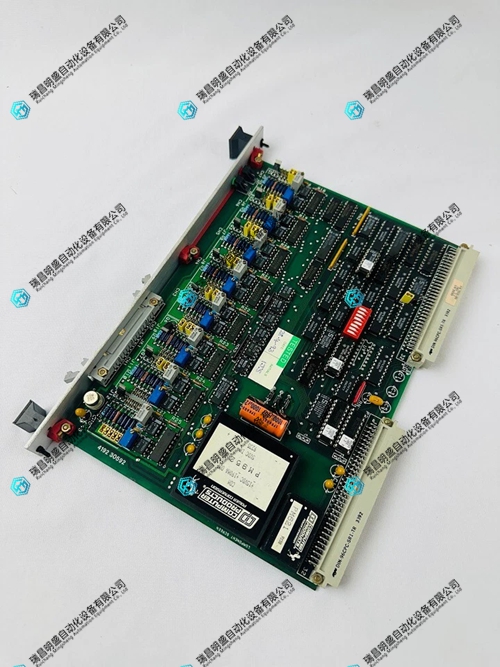

XYCOM XVME-530隔离模拟输出模块 英文资料：
XVME-530 is a classic 6U VME bus 8-channel 12 bit isolated analog output module from Xycom. Each channel is independently optically isolated and has dual voltage/current modes, designed specifically for strong interference industrial control scenarios.
Adopting 6U VME standard architecture, single slot occupancy, compatible with VMEbus A16/D08 (O) specifications.
8 independent D/A output channels, each channel can be configured with independent jumper to output mode.
12 bit D/A resolution, total error ≤ ± 0.5 LSB, guaranteed monotonicity.
Voltage output range: 0-5V, 0-10V, ± 2.5V, ± 5V, ± 10V (single/bipolar).
Current output range: 4-20mA standard industrial current loop.
Each channel has 300V optoelectronic isolation, completely isolating digital logic and analog circuits, with extremely strong anti-interference ability.
Onboard independent DC/DC isolated power supply, no external auxiliary power supply required.
Each channel has independent gain/bias calibration and can be zeroed by software/hardware.
Conversion time 42 μ s, voltage stabilization time 8 μ s, current 30 μ s, fast response.
Occupy 1KB of VME short I/O address space, with the base address configured through onboard switches.
Supports VME interrupts, including status/control registers and LED status indicators.
Power supply:+5V ± 5%, typical 2.6A (4-20mA full load).
Working temperature 0-65 ℃, storage -40-85 ℃, humidity 5% -95% (non condensing).
Size 160mm × 233.4mm, compatible with standard VME chassis.
Typical applications: industrial process control, valve actuation, instrument calibration, distributed control systems, power monitoring.
XVME-530 has the core advantages of high isolation, multi-channel, and dual-mode output, making it the preferred module for analog output and strong interference environment control in VME systems.
