XYCOM XVME-682印刷电路板

1.产 品 资 料 介 绍：

XYCOM XVME-682 印刷电路板（VMEbus PC/AT 处理器模块）

1. 采用双板结构（CPU 板 + I/O 板）、双槽 6U VME 外形，占用 2 个 VME 插槽，兼容 P1/P2 总线接口。
2. 搭载Intel 80286 处理器，主频软件可选 6/8/10MHz，支持80287 浮点协处理器（8MHz，可选）。
3. 板载双端口 DRAM，标配 1MB，最大可扩展至 4MB，满足工控程序运行需求。
4. 集成Phoenix ROM BIOS，兼容 IBM PC/AT 标准，可运行 DOS、VRTX 等实时 / 通用操作系统。
5. 内置EGA/CGA/MDA/Hercules 图形控制器，支持本地单色 / 彩色显示输出。
6. 提供SA450/ST506 硬盘接口、软驱接口，兼容传统机械存储设备。
7. 配备2 路 RS-232 串口（8250/NS16450 兼容）、1 路 Centronics 并口，基础 I/O 全面。
8. 集成Motorola 146818A 实时时钟（RTC），带电池备份，保障系统时间同步。
9. 支持VMEbus 主 / 从模式，兼容 A32/A24/A16 地址与 D32/D16 数据传输，总线通信稳定。
10. 板载128KB EPROM（CPU 板，2 个插座）、64KB EPROM（I/O 板，1 个插座），固化系统固件。
11. 工业级环境设计，工作温度 0℃~65℃、存储 - 40℃~85℃，湿度 5%~95% 无凝露。
12. 前面板集成状态 LED，实时显示 CPU、总线与 I/O 运行状态，便于现场调试诊断。
13. 支持P3 扩展接口（可选），可外接子卡扩展 I/O、通信与专用功能模块。
14. 内置硬件复位与看门狗机制，保障工业场景系统异常自动恢复，连续运行可靠。
15. 适用于工业自动化、DCS/PLC 控制、数据采集、测试测量、军事嵌入式系统等传统工控领域。

XYCOM XVME-682印刷电路板  英文资料：

XYCOM XVME-682 Printed Circuit Board (VMEbus PC/AT Processor Module)

XVME-682 is a dual slot 6U VMEbus dual board structure PC compatible processor module launched by XYCOM, with 80286 architecture as the core, integrating VME bus industrial reliability and PC software ecology, focusing on high compatibility, strong scalability and industrial stability, suitable for traditional industrial control, embedded real-time and data acquisition scenarios.

Adopting a dual board structure (CPU board+I/O board), dual slot 6U VME shape, occupying 2 VME slots, compatible with P1/P2 bus interfaces.

Equipped with Intel 80286 processor, the frequency software can choose 6/8/10MHz, and supports 80287 floating-point coprocessor (8MHz, optional).

Onboard dual port DRAM, standard 1MB, expandable up to 4MB, meets the requirements of industrial control program operation.

Integrated Phoenix ROM BIOS, compatible with IBM PC/AT standards, capable of running real-time/general-purpose operating systems such as DOS and VRTX.

Built in EGA/CGA/MDA/Hercules graphics controller, supporting local monochrome/color display output.

Provide SA450/ST506 hard drive interface and floppy drive interface, compatible with traditional mechanical storage devices.

Equipped with 2 RS-232 serial ports (compatible with 8250/NS16450) and 1 Centronics parallel port, with comprehensive basic I/O.

Integrated Motorola 146818A Real Time Clock (RTC) with battery backup to ensure system time synchronization.

Supports VMEbus master/slave mode, compatible with A32/A24/A16 addresses and D32/D16 data transmission, stable bus communication.

Onboard 128KB EPROM (CPU board, 2 sockets), 64KB EPROM (I/O board, 1 socket), with system firmware fixed.

Industrial grade environmental design, working temperature of 0 ℃~65 ℃, storage of -40 ℃~85 ℃, humidity of 5%~95%, no condensation.

The front panel integrates status LED, which displays the real-time running status of CPU, bus, and I/O, facilitating on-site debugging and diagnosis.

Supports P3 expansion interface (optional), which can be connected to external daughter cards to expand I/O, communication, and specialized functional modules.

Built in hardware reset and watchdog mechanism, ensuring automatic recovery of industrial scene system abnormalities and reliable continuous operation.

Suitable for traditional industrial control fields such as industrial automation, DCS/PLC control, data acquisition, testing and measurement, military embedded systems, etc.

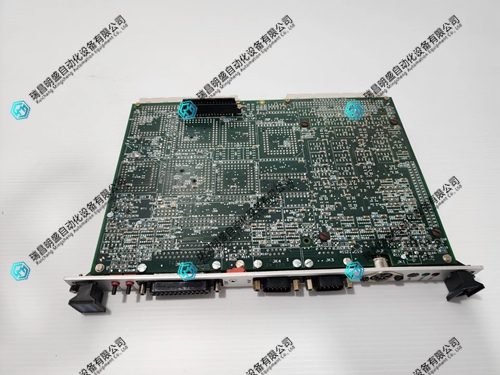

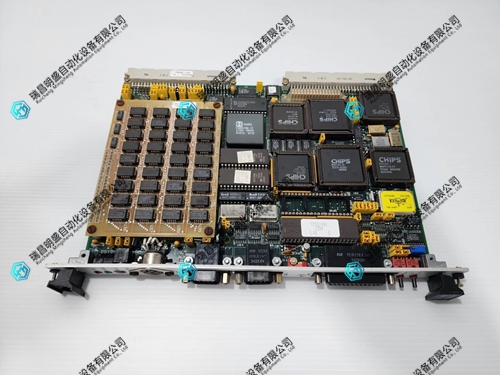

XYCOM XVME-682印刷电路板   产品展示
