Xycom XVME-976 工业计算扩展模块

1.产 品 资 料 介 绍：

Xycom XVME-976 工业计算扩展模块

核心特性

1. 兼容 VMEbus 标准（IEEE 1014），可无缝集成至 VMEbus 系统。
2. 提供 1 个 PC/104 扩展站点，兼容标准 PC/104 模块（以太网、串口、并口等）。
3. 提供 1 个 PMC 扩展站点，支持 IEEE P1386 标准，可扩展高速数据采集、通信、FPGA 等功能。
4. 适配 Xycom XVME-654/655/689/690 等 VME 处理器模块，可直接或通过转接板连接。
5. 板载直流稳压器，为 PMC 站点提供 3.3V 稳定供电。
6. PC/104 信号（除数据线外）均经缓冲，保障信号完整性。
7. 支持跳线自定义信号路由，适配不同扩展需求。
8. 工业级设计，宽温、抗振、高可靠，满足恶劣工况运行。
9. 安装配置简便，支持快速系统功能扩展。
10. 支持第三方 ATM、FDDI、SCSI 等扩展模块，丰富系统接口能力。
11. 6U 标准机械尺寸，适配标准 VME 机箱。
12. 提供板间连接器，实现与处理器模块的稳定电气连接。
13. 支持单 / 双插槽配置，适配不同系统空间需求。
14. 兼容多种实时操作系统，适配工业控制场景。
15. 具备完善的电源管理与信号保护，提升系统稳定性。

Xycom XVME-976 工业计算扩展模块   英文资料：

Xycom XVME-976 Industrial Computing Expansion Module

Xycom XVME-976 is an industrial grade expansion carrier module with 6U VME bus standard, designed to provide flexible I/O and function expansion for VMEbus systems. It is compatible with PC/104 and PMC expansion modules, suitable for harsh industrial environments, and is the core expansion component of VME architecture control systems.

Core Features

Compatible with the VMEbus standard (IEEE 1014), it can be seamlessly integrated into the VMEbus system.

Provide 1 PC/104 expansion site, compatible with standard PC/104 modules (Ethernet, serial port, parallel port, etc.).

Provide one PMC expansion site that supports IEEE P1386 standard and can expand high-speed data acquisition, communication, FPGA and other functions.

Compatible with VME processor modules such as Xycom XVME-654/655/689/690, which can be connected directly or through an adapter board.

Onboard DC regulator provides stable 3.3V power supply for PMC sites.

The PC/104 signal (except for the data line) is buffered to ensure signal integrity.

Support custom signal routing with jumper cables to adapt to different expansion requirements.

Industrial grade design, wide temperature range, anti vibration, high reliability, to meet harsh operating conditions.

Easy installation and configuration, supporting rapid system function expansion.

Support third-party ATM, FDDI, SCSI and other expansion modules to enrich system interface capabilities.

6U standard mechanical size, compatible with standard VME chassis.

Provide inter board connectors to achieve stable electrical connection with the processor module.

Support single/dual slot configuration to adapt to different system space requirements.

Compatible with multiple real-time operating systems and suitable for industrial control scenarios.

Equipped with comprehensive power management and signal protection to enhance system stability.

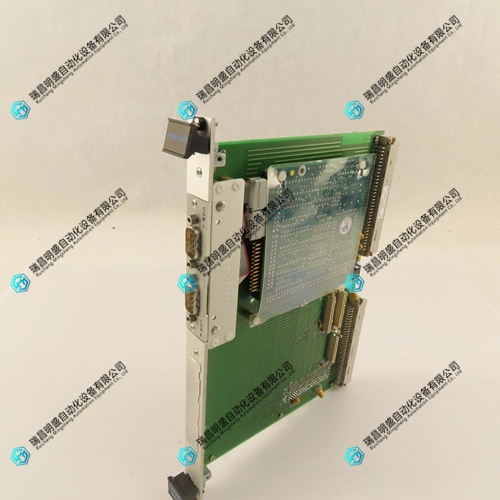

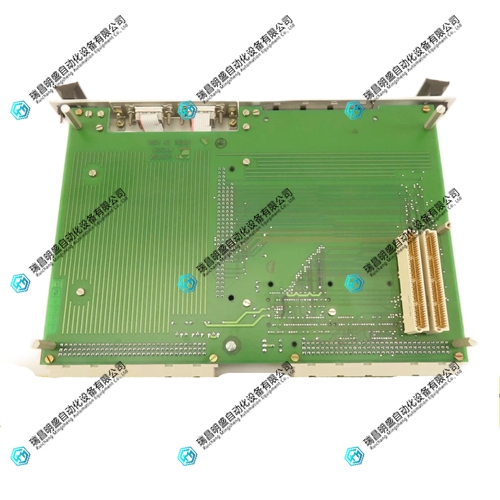

Xycom XVME-976 工业计算扩展模块    产品展示
