IMEC11控制器模块

IMEC11控制器模块

1.产 品 资 料 介 绍：

IMEC11控制器模块产品特点（15条）

1. 8路模拟输入通道，兼容4-20mA无源与1-5VDC有源信号，直连工业传感器无需转换模块。

2. 12位逐次逼近型AD转换器+自主校准，测量精度±0.1%FS，微小信号识别优于同级产品。

3. FSK高频通信（9600bps），以太网+RS485双接口冗余，适配不同传输场景。

4. 输入/输出/电源三重隔离（1500VAC），强效抵御工业现场干扰。

5. 24VDC宽压供电（19.2-28.8VDC），具备反接、过压双重保护。

6. -40℃至85℃宽温运行，高温性能衰减≤5%，适配极端工况。

7. 250欧姆标准输入阻抗，信号响应延迟≤100ms，保障控制时效。

8. 256KB高速缓存，支持数据循环存储与断点续传，避免数据丢失。

9. 双色LED指示，直观反馈运行、通信状态及故障类型，运维便捷。

10. 兼容ABB系统，模块化设计可直嵌原有控制柜，升级无需重构逻辑。

11. IP30防护+B级绝缘材质，耐受工业2级污染环境，防尘防潮。

12. 支持上位机远程校准调试，无需拆卸模块，降低维护成本。

13. 净重499g，DIN导轨安装，紧凑结构适配控制柜密集布局。

14. 自适应滤波电路，抑制高频干扰，保障数据稳定一致。

15. 通过UL、CE认证，符合多行业标准，应用场景广泛。

IMEC11控制器模块 英文资料：

IMEC11 controller module product features (15 items)

1. 8 analog input channels, compatible with 4-20mA passive and 1-5VDC active signals, directly connected to industrial sensors without the need for conversion modules.

2. A 12 bit successive approximation AD converter with self calibration, with a measurement accuracy of ± 0.1% FS, and superior recognition of small signals compared to similar products.

3. FSK high-frequency communication (9600bps), Ethernet+RS485 dual interface redundancy, adapt to different transmission scenarios.

4. Triple isolation of input/output/power supply (1500VAC), effectively resisting interference from industrial sites.

5. 24VDC wide voltage power supply (19.2-28.8VDC), with dual protection against reverse connection and overvoltage.

6. Operating at a wide temperature range of -40 ℃ to 85 ℃, with a high-temperature performance degradation of ≤ 5%, suitable for extreme working conditions.

7. 250 ohm standard input impedance, signal response delay ≤ 100ms, ensuring control timeliness.

8. 256KB high-speed cache, supporting data loop storage and breakpoint retransmission to avoid data loss.

9. Dual color LED indicator provides intuitive feedback on operation, communication status, and fault types, making maintenance and operation convenient.

10. Compatible with ABB systems, modular design can be directly embedded into existing control cabinets, and upgrades do not require logic reconstruction.

11. IP30 protection+B-class insulation material, resistant to industrial level 2 pollution environment, dustproof and moisture-proof.

12. Support remote calibration and debugging of the upper computer, without the need to disassemble modules, reducing maintenance costs.

13. Net weight 499g, DIN rail installation, compact structure suitable for dense layout of control cabinets.

14. Adaptive filtering circuit to suppress high-frequency interference and ensure stable and consistent data.

15. Through UL and CE certification, it meets multiple industry standards and has a wide range of application scenarios.

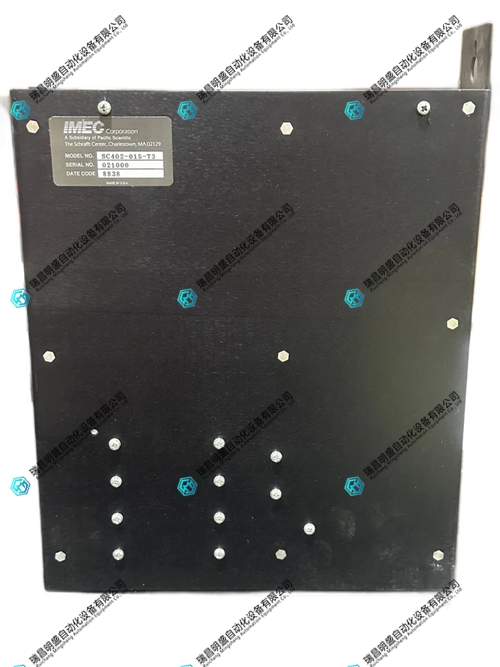

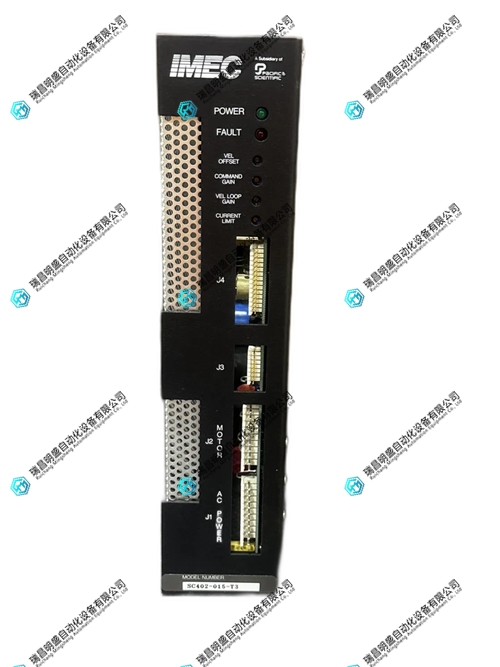

IMEC11控制器模块  产品展示
