BDFC-01C 风扇控制板

ABB BDFC-01C 风扇控制板

1.产 品 资 料 介 绍：

中文资料：

BDFC-01C 风扇控制板 是一款工业级风扇控制模块，常用于电力电子系统、变频器、伺服驱动器或工业控制柜中，对冷却风扇进行智能控制与保护。该控制板由多家工业自动化企业制造，属于通用型/定制型电子辅助模块。

一、产品概述

BDFC-01C 控制板主要用于自动检测控制设备的温度或负载情况，进而启停冷却风扇，延长风扇寿命、降低能耗，并防止控制柜内温升过高造成系统失效。其控制方式可能基于继电器、PWM 或电压输出，适配多种风扇供电方式（DC 或 AC）。

二、主要功能

1. 温控启停：根据热敏电阻或热敏器件（NTC/PTC）反馈自动控制风扇运行；

2. 多通道输出：可控制多组风扇的启停状态，支持并联风扇负载；

3. 软启动与延时保护：降低风扇启动电流冲击，支持延时启动/关闭；

4. 故障检测：如风扇失速、堵转、电压异常报警；

5. 通信支持（部分型号）：支持 TTL、485 或模拟量信号上报；

6. 多种控制模式：可选定时控制、温度触发控制、手动强制启动。

三、技术规格（典型）

• 输入电源：12VDC / 24VDC（可定制）

• 控制输出：继电器触点、PWM 或 MOS 管驱动

• 控制通道数：2~4 路（视型号而定）

• 支持风扇类型：DC 无刷风扇（常见 12V、24V）

• 温度传感器：NTC 热敏电阻接口（通常为 10KΩ）

• 工作温度：-20°C ~ +70°C

• PCB 尺寸：可定制（常见为 80mm x 50mm）

• 安装方式：螺丝孔固定 / DIN 导轨

四、典型应用领域

• 变频器、电源模块的散热系统

• 电机驱动器（伺服、步进）辅助冷却

• 工业控制柜内热管理系统

• 通信基站或 UPS 内部冷却系统

• 工业加热/焊接设备

英文资料：

The BDFC-01C fan control board is an industrial grade fan control module commonly used in power electronic systems, frequency converters, servo drives, or industrial control cabinets to intelligently control and protect cooling fans. This control board is manufactured by multiple industrial automation companies and belongs to the general/customized electronic auxiliary module category.

1、 Product Overview

The BDFC-01C control board is mainly used to automatically detect the temperature or load situation of control equipment, thereby starting and stopping the cooling fan, extending the fan life, reducing energy consumption, and preventing system failure caused by excessive temperature rise in the control cabinet. Its control method may be based on relays, PWM, or voltage output, adapted to multiple fan power supply methods (DC or AC).

2、 Main functions

Temperature control start stop: automatically control the fan operation based on feedback from thermistor or thermistor device (NTC/PTC);

Multi channel output: can control the start and stop status of multiple sets of fans, supporting parallel fan loads;

Soft start and delay protection: reduces the impact of fan starting current, supports delayed start/stop;

Fault detection: such as fan stall, stalling, abnormal voltage alarm;

Communication support (some models): Supports TTL, 485, or analog signal reporting;

Multiple control modes: optional timed control, temperature triggered control, manual forced start.

3、 Technical specifications (typical)

Input power supply: 12VDC/24VDC (customizable)

Control output: relay contacts, PWM or MOS tube drive

Number of control channels: 2-4 channels (depending on the model)

Supported fan types: DC brushless fan (commonly 12V, 24V)

Temperature sensor: NTC thermistor interface (usually 10K Ω)

Working temperature: -20 ° C~+70 ° C

PCB size: customizable (commonly 80mm x 50mm)

Installation method: screw hole fixation/DIN rail

4、 Typical application areas

Cooling system for frequency converter and power module

Motor driver (servo, stepper) auxiliary cooling

Industrial control cabinet internal thermal management system

Communication base station or UPS internal cooling system

Industrial heating/welding equipment

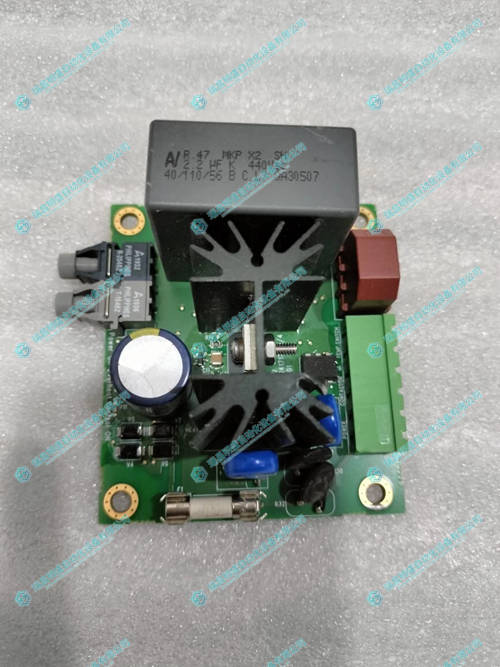

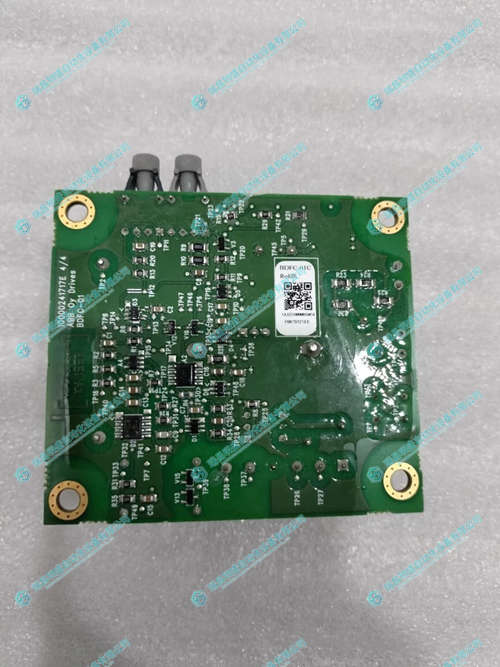

2.产      品      展      示
