AMAT Applied Materials 0100-90311接口模块
1.产 品 资 料 介 绍：
- 设备适配：匹配 AMAT 半导体工艺设备（如蚀刻、沉积机台），作为主控单元与外设的信号枢纽，适配传感器、执行器及控制模块等设备连接需求。
- 工艺兼容：聚焦半导体洁净车间环境，适配真空抽排、气体输送等工序的信号传输，支持与 AMAT SmartFactory 良率管理系统联动。
- 核心功能：实现数字 / 模拟信号的双向转换与传输，承担控制指令下发、设备状态数据回传功能，保障多组件协同运行。
- 传输性能：支持 RS-232/RS-485 串行接口与以太网口，RS-485 通信距离可达 1000 米，以太网速率 10/100Mbps 自适应，波特率 300-115200bps 可调。
- 协议兼容：支持 Modbus RTU 主从应答协议，兼容 TCP、UDP、HTTP 等网络协议，可接入 AMAT 设备 PLC 系统实现远程监控。
- 运行稳定：内置信号隔离电路（隔离电压≥1000VDC），抗干扰能力强，平均无故障时间（MTBF）超 5000 小时，适配工业级连续运行需求。
- 防护设计：外壳采用工业级阻燃材质，具备防静电（ESD）、防电磁干扰（EMI）设计，适应半导体车间复杂电磁环境。
- 安装适配：紧凑型结构（尺寸约 90×50×18mm），支持 DIN35mm 导轨式安装，接线端子带防呆设计，避免误接损坏模块。
- 维护便利：配备状态指示灯（电源、通信、故障），支持通过 Windows 配置软件调试参数，提供 API 函数库便于二次开发。
- 认证：通过 UL 工业设备安全认证、CE 电磁兼容认证，符合 RoHS 2.0 环保标准，适配全球晶圆厂合规要求。
- 环境耐受：工作温度 - 20-60℃（相对湿度 5%-95%，无冷凝），存储温度 - 40-85℃，支持 24VDC 宽压输入（±10%）及过流保护。
- 安全机制：内置信号故障检测功能，异常时自动切断输出并发送报警信号，防止错误信号导致工艺中断。
AMAT Applied Materials 0100-90311接口模块 英文资料：
1. Adaptation scenarios and functions (0100-90311)
Equipment adaptation: Match AMAT semiconductor process equipment (such as etching and deposition machines) as a signal hub between the main control unit and peripherals, and adapt to the connection requirements of sensors, actuators, and control modules.
Process compatibility: Focusing on the semiconductor clean room environment, adapting to signal transmission for vacuum pumping, gas transportation and other processes, supporting linkage with AMAT SmartFactory yield management system.
Core function: Implement bidirectional conversion and transmission of digital/analog signals, undertake control command issuance and equipment status data feedback functions, and ensure the coordinated operation of multiple components.
2. Accuracy and Performance (0100-90311)
Transmission performance: Supports RS-232/RS-485 serial interface and Ethernet port, with a communication distance of up to 1000 meters for RS-485, adaptive Ethernet speed of 10/100Mbps, and adjustable baud rate of 300-115200bps.
Protocol compatibility: Supports Modbus RTU master-slave response protocol, compatible with TCP, UDP, HTTP and other network protocols, and can be connected to AMAT device PLC system for remote monitoring.
Stable operation: Built in signal isolation circuit (isolation voltage ≥ 1000VDC), strong anti-interference ability, mean time between failures (MTBF) exceeding 5000 hours, suitable for industrial grade continuous operation requirements.
3. Structure and Protection (0100-90311)
Protection design: The shell is made of industrial grade flame-retardant material, with anti-static (ESD) and electromagnetic interference (EMI) design, suitable for the complex electromagnetic environment of semiconductor workshops.
Installation adaptation: Compact structure (size approximately 90 × 50 × 18mm), supporting DIN35mm rail installation, with foolproof design of wiring terminals to avoid module damage caused by misconnection.
Easy maintenance: equipped with status indicator lights (power, communication, fault), supports debugging parameters through Windows configuration software, and provides API function libraries for secondary development.
4. Compliance and Assurance (0100-90311)
Certification: Passed UL industrial equipment safety certification, CE electromagnetic compatibility certification, compliant with RoHS 2.0 environmental standards, and adaptable to global wafer fab compliance requirements.
Environmental tolerance: Operating temperature -20-60 ℃ (relative humidity 5% -95%, no condensation), storage temperature -40-85 ℃, supporting 24VDC wide voltage input (± 10%) and overcurrent protection.
Security mechanism: Built in signal fault detection function, automatically cuts off output and sends alarm signals when abnormal, preventing process interruption caused by incorrect signals.

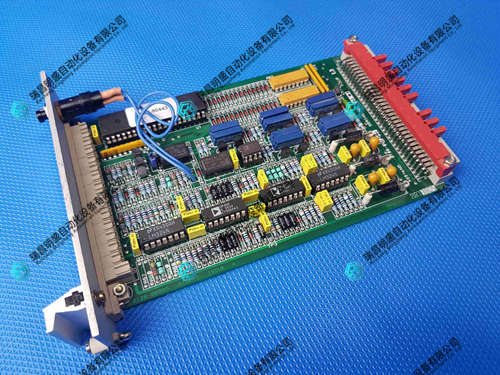

AMAT Applied Materials 0100-90311接口模块 产品展示
产品视频
