IC697CMM711通信处理器模块

IC697CMM711通信处理器模块

1.产 品 资 料 介 绍：

1. 单槽宽度设计，适配 90-70 系列所有标准机架。
2. 搭载 12MHz 80C186 微处理器，独立处理通信任务。
3. 配备 2 个独立串口，支持 RS-232/RS-422/RS-485 灵活切换。
4. 支持 SNP/SNP-X 协议，可做主站或从站。
5. 支持 CCM 协议，兼容主站、从站、对等（Peer）三种模式。
6. 支持 Modbus RTU 协议，仅可配置为从站。
7. 双端口可任意组合 9 种协议模式（如 CCM/RTU、SNP/SNP 等）。
8. 无硬件跳线，全软件配置，简化现场调试。
9. 支持 9.6Kbps、19.2Kbps 等常用波特率，满足工业现场需求。
10. 具备模块运行、端口 1、端口 2 三个状态 LED，便于诊断。
11. 支持热插拔，在线维护不影响系统运行。
12. 工作温度 - 40℃~+85℃，适应严苛工业环境。
13. 可读写 PLC 的 % I、% Q、% R、% AI 等各类数据区。
14. 支持多机联网、远程监控、数据采集与设备联动。
15. 广泛用于化工、电力、冶金、制造等分布式控制系统。

IC697CMM711通信处理器模块 英文资料：

IC697CMM711 is a single slot communication coprocessor from GE Fanuc 90-70 series, designed specifically for PLC and multi device, multi protocol networking. It features dual serial ports, multi protocol, and software configuration, greatly reducing the communication burden on the CPU.

Single slot width design, compatible with all standard racks of the 90-70 series.

Equipped with a 12MHz 80C186 microprocessor, it independently processes communication tasks.

Equipped with 2 independent serial ports, supporting flexible switching between RS-232/RS-422/RS-485.

Supports SNP/SNP-X protocol and can be used as a master or slave station.

Supports CCM protocol and is compatible with three modes: master, slave, and peer.

Supports Modbus RTU protocol and can only be configured as a slave.

Dual ports can freely combine 9 protocol modes (such as CCM/RTU, SNP/SNP, etc.).

No hardware jumpers, fully software configured, simplified on-site debugging.

Supports commonly used baud rates such as 9.6Kbps and 19.2Kbps to meet the needs of industrial sites.

Equipped with three status LEDs for module operation, port 1, and port 2, facilitating diagnosis.

Support hot plugging, online maintenance does not affect system operation.

Working temperature -40 ℃~+85 ℃, suitable for harsh industrial environments.

Read and write various data areas such as% I,% Q,% R,% AI of PLC.

Support multi machine networking, remote monitoring, data collection, and device linkage.

Widely used in distributed control systems such as chemical, power, metallurgy, and manufacturing industries.

IC697CMM711, with high compatibility, strong flexibility, and industrial grade reliability, has become the core communication module for implementing multi protocol and multi device networking in the 90-70 system.

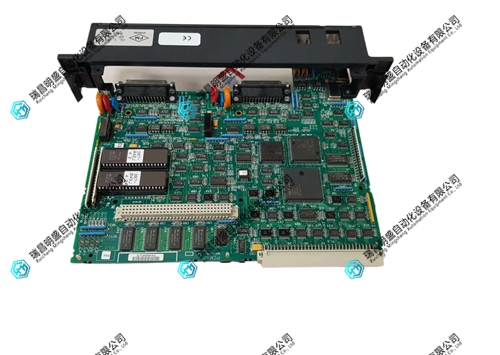

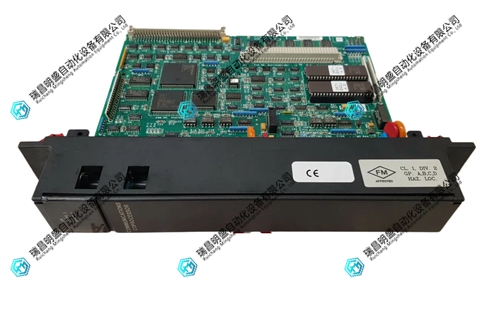

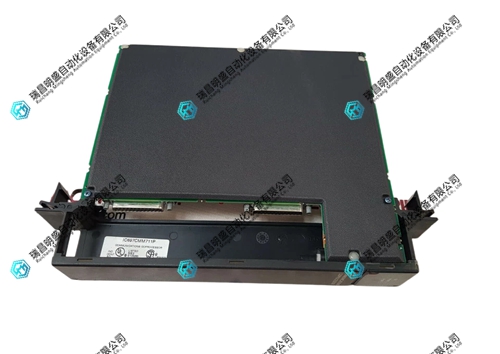

IC697CMM711通信处理器模块 产品展示
