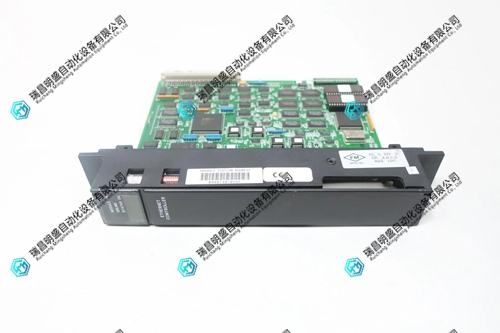

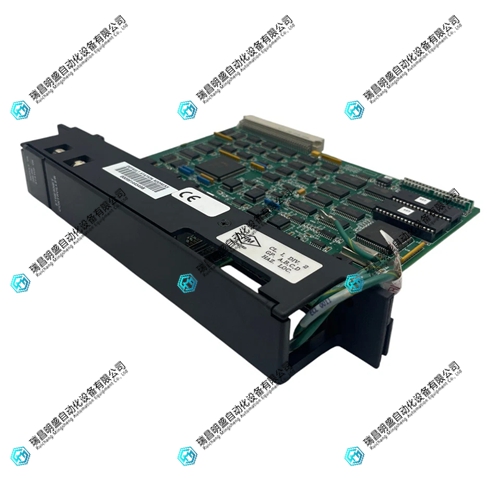

IC697CMM741以太网控制器

1.产 品 资 料 介 绍：

IC697CMM741 以太网控制器（15 条版）

1. 单槽宽度设计，适配 90-70 系列所有标准 VME 机架。
2. 提供标准 15 针 AUI 接口，可外接 10Base2/10BaseT/10BaseF 等收发器。
3. 独立硬件处理以太网通信，大幅减轻主 CPU 运算负载。
4. 支持 IEEE 802.3 CSMA/CD 标准，兼容 10Mbps 工业以太网。
5. 支持 TCP/IP 与 MMS/OSI 双协议栈，适配多厂商设备联网。
6. 软件通过 RAM 加载 / 升级，断电后配置可保存至少 6 个月。
7. 配备运行、通信、故障 3 个状态 LED，便于现场快速诊断。
8. 支持热插拔，在线维护不影响系统正常运行。
9. 工业级宽温设计，工作温度 - 40℃~+85℃，适应严苛环境。
10. 金属外壳，抗电磁干扰能力强，符合工业 EMC 标准。
11. 背板供电：+5V/2A、+12V/0.5A，满足模块稳定运行。
12. 提供本地站管理端口，支持软件配置与固件更新。
13. 可直接读写 PLC 的 % I、% Q、% R、% AI 等全部数据区。
14. 支持程序上下载、远程监控、数据采集与系统诊断。
15. 广泛应用于汽车、电子、机械制造等离散制造业以太网组网。

IC697CMM741以太网控制器 英文资料：

IC697CMM741 Ethernet Controller (15 version)

IC697CMM741 is a single slot Ethernet controller from GE Fanuc 90-70 series, belonging to the IC651 Factory LAN family. It is designed specifically for PLC direct connection to IEEE 802.3 Ethernet, supports TCP/IP and MMS/OSI protocols, independently processes network communication, and achieves high-speed interconnection and remote control of multiple controllers.

Single slot width design, compatible with all standard VME racks in the 90-70 series.

Provide standard 15 pin AUI interface, which can be connected to external transceivers such as 10Base2/10BaseT/10BaseF.

Independent hardware processing of Ethernet communication significantly reduces the computational load on the main CPU.

Supports IEEE 802.3 CSMA/CD standard and is compatible with 10Mbps industrial Ethernet.

Supports TCP/IP and MMS/OSI dual protocol stacks, suitable for multi vendor device networking.

The software is loaded/upgraded through RAM, and the configuration can be saved for at least 6 months after power failure.

Equipped with three status LEDs for operation, communication, and fault, facilitating quick on-site diagnosis.

Support hot plugging, online maintenance does not affect the normal operation of the system.

Industrial grade wide temperature design, working temperature -40 ℃~+85 ℃, suitable for harsh environments.

Metal casing, strong electromagnetic interference resistance, in compliance with industrial EMC standards.

Backboard power supply:+5V/2A,+12V/0.5A, to ensure stable operation of the module.

Provide local site management port, support software configuration and firmware updates.

It can directly read and write all data areas of PLC, such as% I,% Q,% R,% AI, etc.

Support program download, remote monitoring, data collection, and system diagnosis.

Widely used in discrete manufacturing industries such as automotive, electronics, and mechanical manufacturing for Ethernet networking.

IC697CMM741, with high compatibility, independent communication processing, and industrial grade reliability, has become the core module for 90-70 systems to connect to traditional industrial Ethernet and achieve multi device interconnection.
