IC697CMM721以太网接口模块

1.产 品 资 料 介 绍：

IC697CMM721 Carrierband MAP 接口模块（15 条版）

1. 单槽宽度设计，适配 90-70 系列所有标准 VME 机架。
2. 集成数字控制器与调制解调器，硬件一体化出厂装配。
3. 支持 IEEE 802.4 Carrierband（载波带）物理层标准。
4. 兼容 MAP 3.0 制造自动化协议，构建统一工厂局域网。
5. 协议软件加载于模块 RAM，可软件升级无需硬件改动。
6. 独立处理 MAP 网络通信，大幅减轻主 CPU 运算负担。
7. 支持 GEnet Factory LAN 架构，适配多厂商自动化设备互联。
8. 提供 PLC 与上位机、HMI、其他 PLC 的高速数据交换通道。
9. 支持数据采集、远程监控、程序上下载与系统诊断功能。
10. 具备运行、通信、故障等状态 LED，便于现场快速排查。
11. 支持热插拔，在线维护不影响系统正常运行。
12. 工业级设计，工作温度 - 40℃~+85℃，适应严苛环境。
13. 金属外壳，抗电磁干扰能力强，符合工业 EMC 标准。
14. 可与 90-70 系列 CPU、I/O、通信模块无缝协同工作。
15. 广泛应用于汽车、电子、机械制造等离散制造业 MAP 网络。

IC697CMM721以太网接口模块 英文资料：

IC697CMM721 Carrier and MAP Interface Module (15 version)

IC697CMM721 is a single slot Carrier and MAP network interface module from GE Fanuc 90-70 series, designed specifically for PLC access to industrial MAP local area networks. It provides IEEE 802.4 carrier band communication, enabling unified networking and data exchange among multiple vendor devices.

Single slot width design, compatible with all standard VME racks in the 90-70 series.

Integrated digital controller and modem, hardware integrated factory assembly.

Supports IEEE 802.4 Carrier Band physical layer standard.

Compatible with MAP 3.0 manufacturing automation protocol, build a unified factory LAN.

The protocol software is loaded into the module RAM and can be upgraded without hardware modifications.

Independently handle MAP network communication, significantly reducing the computational burden on the main CPU.

Support GEnet Factory LAN architecture and adapt to multi vendor automation equipment interconnection.

Provide PLC and upper computer HMI、 High speed data exchange channels for other PLCs.

Support data collection, remote monitoring, program download, and system diagnostic functions.

Equipped with LEDs for operation, communication, and fault status, facilitating quick on-site troubleshooting.

Support hot plugging, online maintenance does not affect the normal operation of the system.

Industrial grade design, working temperature -40 ℃~+85 ℃, suitable for harsh environments.

Metal casing, strong electromagnetic interference resistance, in compliance with industrial EMC standards.

Can work seamlessly with 90-70 series CPUs, I/O, and communication modules.

Widely used in discrete manufacturing industries such as automotive, electronics, and mechanical manufacturing, MAP networks.

IC697CMM721, with compatibility with MAP protocol, hardware integration, and industrial grade reliability, has become a key module for the 90-70 system to connect to traditional industrial LANs and achieve multi device interconnection.

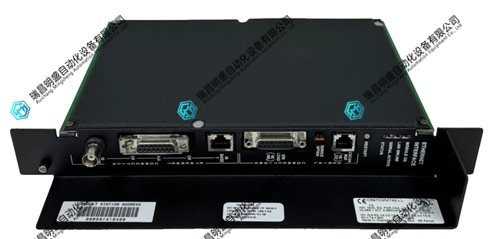

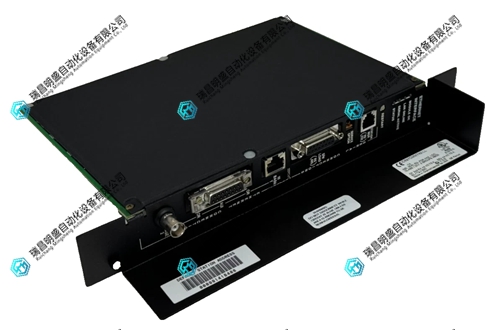

IC697CMM721以太网接口模块 产品展示
