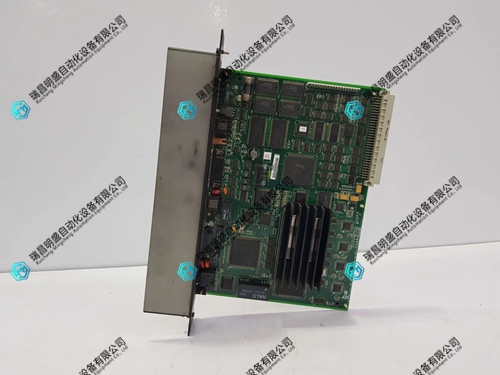

IC697CMM742以太网接口模块

IC697CMM742以太网接口模块

1.产 品 资 料 介 绍：

1. 单槽宽度设计，适配 90-70 系列所有标准 VME 机架。
2. 集成 3 个独立网口：10BaseT（RJ-45）、10Base2（BNC）、15 针 AUI，自动选通单口工作。
3. 10BaseT/10Base2 直连无需外接收发器，AUI 可扩展 10Base5/10BaseF/10Broad36 等介质。
4. 支持 IEEE 802.3 CSMA/CD 标准，10Mbps 工业以太网通信。
5. 搭载 TCP/IP、SRTP、EGD（以太网全局数据）协议栈，支持配置 / 逻辑驱动数据交换。
6. 独立硬件处理网络任务，大幅减轻主 CPU 运算负载。
7. 单 CPU 机架最多支持 4 块模块，扩展多网口冗余与高速通信能力。
8. 内置 RS-232（站管理）与 RS-485（固件加载）双串口，支持本地配置与固件升级。
9. 固件预加载，可通过 RS-485 串口在线升级，配置永久保存。
10. 配备 MODULE OK、LAN ONLINE、SERIAL ACTIVE、STATUS OK 四状态 LED，快速诊断。
11. 支持热插拔，在线维护不影响系统正常运行。
12. 工业级宽温设计，工作温度 - 40℃~+85℃，适应严苛工业环境。
13. 金属外壳，抗电磁干扰能力强，符合工业 EMC 标准。
14. 支持 PLC 程序上下载、远程监控、全局数据共享与系统诊断。
15. 广泛应用于汽车、电子、冶金、电力等行业的工业以太网组网与分布式控制。

IC697CMM742以太网接口模块 英文资料：

IC697CMM742 is a Type 2 single slot Ethernet interface module of GE Fanuc 90-70 series, integrating three network ports and dual serial ports, supporting 10Mbps Ethernet and TCP/IP/SRTP/EGD protocols, independently processing network communication, realizing PLC high-speed networking, remote programming, and global data exchange.

Single slot width design, compatible with all standard VME racks in the 90-70 series.

Integrate 3 independent network ports: 10BaseT (RJ-45), 10Base2 (BNC), 15 pin AUI, automatically ｓｅｌｅｃｔ single port operation.

10BaseT/10Base2 direct connection does not require an external receiver, and AUI can be extended to media such as 10Base5/10BaseF/10Broad36.

Supports IEEE 802.3 CSMA/CD standard and 10Mbps industrial Ethernet communication.

Equipped with TCP/IP, SRTP, and EGD (Ethernet Global Data) protocol stacks, supporting configuration/logic driven data exchange.

Independently handle network tasks with hardware, significantly reducing the computational load on the main CPU.

A single CPU rack can support up to 4 modules, expanding multi port redundancy and high-speed communication capabilities.

Built in RS-232 (station management) and RS-485 (firmware loading) dual serial ports, supporting local configuration and firmware upgrades.

Firmware preloading, can be upgraded online through RS-485 serial port, and the configuration is permanently saved.

Equipped with four status LEDs: MODULE OK, LAN ONLINE, STORAL ACTION, and STOP OK, for quick diagnosis.

Support hot plugging, online maintenance does not affect the normal operation of the system.

Industrial grade wide temperature design, working temperature -40 ℃~+85 ℃, suitable for harsh industrial environments.

Metal casing, strong electromagnetic interference resistance, in compliance with industrial EMC standards.

Support downloading of PLC programs, remote monitoring, global data sharing, and system diagnostics.

Widely used in industrial Ethernet networking and distributed control in industries such as automotive, electronics, metallurgy, and power.

IC697CMM742, with its flexible adaptation to three network ports, compatibility with multiple protocols, and independent communication processing capabilities, has become the core module for building high-speed and reliable industrial Ethernet in the 90-70 system.
