1.产 品 资 料 介 绍：
- 所属系列：GE Fanuc Series 90‑70 / Series Six PLC 系统
- 通道数量：8 路独立模拟输入通道
- 信号类型：兼容电压、RTD 热电阻、应变桥（全桥 / 半桥 / 1/4 桥）
- 通道配置：每通道独立软件组态，适配不同传感器
- 分辨率：12 位 + 符号位，高精度信号转换
- 输入阻抗：供电时≥10MΩ，断电时 70kΩ，适配弱信号传感器
- 隔离设计：通道间光电隔离，抗现场干扰
- 安装方式：标准 90‑70 机架安装，支持热插拔
- 工作温度：0℃–60℃，适应工业现场环境
- 供电要求：背板 5V DC 供电，无需额外现场电源
- 状态指示：模块运行与通道状态 LED，便于诊断
- 通信方式：通过 PLC 背板总线与 CPU 高速交互数据
- 编程软件：支持 VersaPro、Logicmaster 90‑70 组态
- 典型应用：温度监测、压力 / 张力测量、称重系统、过程控制
- 认证标准：符合 UL、CE、IEC 工业控制设备规范
结尾
IC697VRD008可编程控制器模块 英文资料：
IC697VRD008 is an 8-channel multifunctional analog input module for GE Fanuc Series 90-70/Series Six platform, which can collect voltage, RTD thermistor, and strain bridge signals. It is designed for high-precision analog data acquisition in industry.
Series: GE Fanuc Series 90-70/Series Six PLC System
Number of channels: 8 independent analog input channels
Signal type: compatible voltage, RTD thermistor, strain bridge (full bridge/half bridge/1/4 bridge)
Channel configuration: each channel is configured with independent software to adapt to different sensors
Resolution: 12 bits+sign bit, high-precision signal conversion
Input impedance: ≥ 10M Ω when powered on, 70k Ω when powered off, suitable for weak signal sensors
Isolation design: Optoelectronic isolation between channels, resistant to on-site interference
Installation method: Standard 90-70 rack installation, supports hot swapping
Working temperature: 0 ℃ -60 ℃, suitable for industrial site environment
Power requirement: Backboard 5V DC power supply, no additional on-site power supply required
Status indication: Module operation and channel status LED for easy diagnosis
Communication method: High speed data exchange between PLC backplane bus and CPU
Programming software: supports VersaPro and Logicmaster 90-70 configurations
Typical applications: temperature monitoring, pressure/tension measurement, weighing systems, process control
Certification standards: comply with UL, CE, IEC industrial control equipment specifications
ending
This module has the core advantages of multi signal compatibility, high precision, and high isolation. It is the core module for analog acquisition in the 90-70 system and is suitable for precise acquisition and monitoring of physical quantities such as temperature, force, and pressure in industrial scenarios.

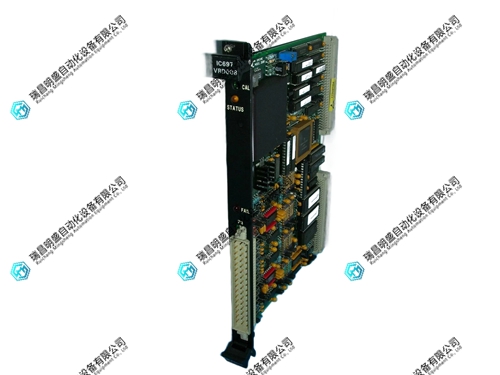

IC697VRD008可编程控制器模块 产品展示
