IC693APU300K高速计数器模块

IC693APU300K高速计数器模块

1.产 品 资 料 介 绍：

1. 搭载 32 位独立处理器，无需占用 PLC CPU 资源即可自主完成高速计数任务
2. 提供 12 路正逻辑输入，支持 5VDC 或 10-30VDC 双电压模式，适配多种脉冲传感器
3. 最大计数频率高达 200kHz，可精准捕获高速脉冲信号，满足测速、定位等高频场景
4. 配置 4 路正逻辑输出，支持集电极开路与推挽输出，可直接驱动继电器、电磁阀等负载
5. 支持多种计数模式：单路增计数、减计数、增减双向计数及双路差值计数
6. 可灵活组态为 1 路复杂计数器、2 路独立复合计数器或 4 路基础独立计数器
7. 输入输出通道全光电隔离，有效抑制工业电磁干扰，保障信号稳定与模块安全
8. 配备可拆卸式端子板，现场接线与维护便捷，支持热插拔操作
9. 内置 LED 状态指示灯，实时显示电源、运行、故障及各通道工作状态
10. 具备过流、反接、短路多重保护机制，输出回路配置 3A 保险丝，提升可靠性
11. 宽温工业级设计，工作温度范围 - 40°C~+70°C，适应严苛工业环境
12. 标准单槽尺寸，兼容 GE 90-30 系列 PLC 底板，安装灵活、扩展便捷
13. 支持通过编程软件（VersaPro、Logicmaster）实现参数配置与功能编程
14. 自带内部诊断功能，可实时监测模块状态、信号异常与故障信息
15. 典型应用于涡轮流量计、高速测速、精密定位、物料分拣、运动控制等场景

结尾

IC693APU300K高速计数器模块 产品英文

IC693APU300K is a high-performance high-speed counter module designed specifically for GE Fanuc 90-30 series PLCs. It is designed to handle high-frequency pulse signals in industrial fields and has independent computing, precise counting, and real-time control capabilities. It can independently complete high-speed signal acquisition and logic response without the CPU main cycle, effectively improving system real-time performance and counting accuracy.

Equipped with a 32-bit independent processor, it can independently complete high-speed counting tasks without occupying PLC CPU resources

Provide 12 positive logic inputs, support 5VDC or 10-30VDC dual voltage mode, compatible with multiple pulse sensors

The maximum counting frequency is up to 200kHz, which can accurately capture high-speed pulse signals and meet high-frequency scenarios such as speed measurement and positioning

Configure 4 positive logic outputs, support open collector and push-pull outputs, can directly drive loads such as relays and solenoid valves

Supports multiple counting modes: single channel count up, count down, bidirectional count up and down, and dual channel difference count

Flexible configuration for 1-channel complex counter, 2-channel independent composite counter, or 4-channel basic independent counter

The input and output channels are fully optically isolated, effectively suppressing industrial electromagnetic interference, ensuring signal stability and module safety

Equipped with a detachable terminal board, convenient on-site wiring and maintenance, supporting hot plug operation

Built in LED status indicator light, real-time display of power, operation, faults, and the working status of each channel

Equipped with multiple protection mechanisms for overcurrent, reverse connection, and short circuit, the output circuit is equipped with 3A fuses to enhance reliability

Wide temperature industrial grade design, operating temperature range -40 ° C~+70 ° C, suitable for harsh industrial environments

Standard single slot size, compatible with GE 90-30 series PLC motherboard, flexible installation and easy expansion

Support parameter configuration and functional programming through programming software (VersaPro, Logicmaster)

Equipped with internal diagnostic function, it can monitor module status, signal abnormalities, and fault information in real time

Typical applications include turbine flow meters, high-speed speed measurement, precision positioning, material sorting, motion control, and other scenarios

ending

IC693APU300K, with its core advantages of high-speed response, independent operation, and stable reliability, has become an ideal module for high-speed pulse signal processing and precise counting control in industrial automation, widely adapting to various high-precision and high real-time industrial control scenarios.

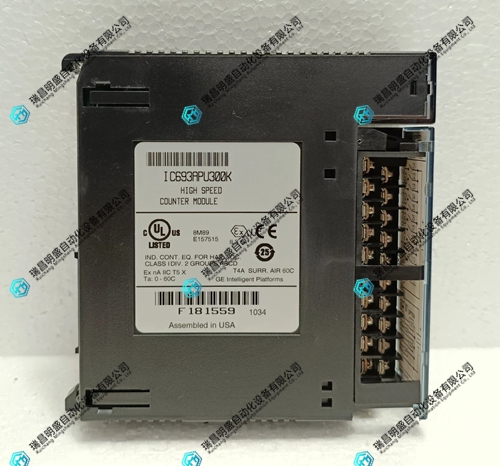

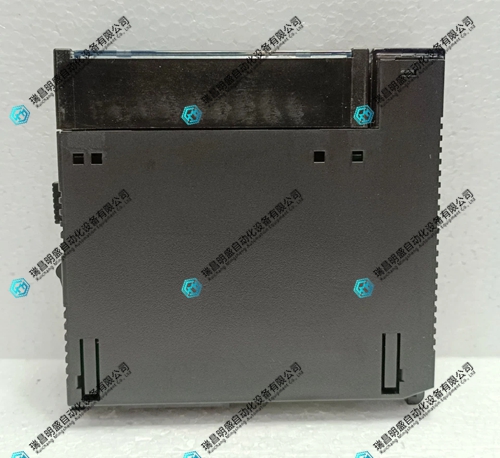

IC693APU300K高速计数器模块  产品展示
