Magnetek CIMR-AU4A0088AAA交流电驱动器

 Magnetek CIMR-AU4A0088AAA交流电驱动器

1.产 品 资 料 介 绍：

产品概述

CIMR-AU4A0088AAA 是 Magnetek 与 Yaskawa 联合推出的 交流变频驱动器（AC Inverter Drive），广泛应用于工业自动化控制领域，用于调速、节能及过程控制。该型号属于 Yaskawa A1000 系列 的工业型变频器，具备高性能矢量控制、卓越的驱动稳定性和丰富的扩展接口，适用于对动态响应和高精度控制有较高要求的负载系统。

技术参数

• 品牌 / 系列：Magnetek / Yaskawa A1000 系列

• 型号：CIMR-AU4A0088AAA

• 额定输出电流：88 A

• 适用电机功率：30 kW（约 40 HP）

• 输入电压：三相 380–480 VAC ±10%

• 输出频率范围：0.01–400 Hz

• 控制方式：

  • V/f 控制

  • 矢量控制（无传感器）

  • 闭环矢量控制（带编码器）

• 通讯接口：内置 Modbus；可选 Profibus-DP、DeviceNet、EtherNet/IP、MECHATROLINK 等

• 冷却方式：风冷

• 防护等级：IP20（标准）

应用场景

1. 起重与物料搬运系统
   适用于桥式起重机、电梯、皮带输送系统等高启动转矩和高速稳定性的应用。

2. 泵与风机控制
   用于中央空调系统、水处理、通风系统，实现节能运行与软启动控制。

3. 数控机床与加工设备
   提供高响应、高精度的电机控制，用于切削、送料、定位等动态控制环节。

4. 电梯与垂直输送系统
   支持闭环控制，可实现顺畅起停和恒速运行，提升乘坐舒适度。

5. 自动化生产线
   在连续或间歇式自动线中作为主传动或辅助轴驱动单元，执行高频率启停控制。

英文资料：

product overview

CIMR-AU4A0088AAA is an AC inverter drive jointly launched by Magnetek and Yaskawa, widely used in the field of industrial automation control for speed regulation, energy saving, and process control. This model belongs to the Yaskawa A1000 series industrial frequency converter, which features high-performance vector control, excellent drive stability, and rich expansion interfaces. It is suitable for load systems with high requirements for dynamic response and high-precision control.

Technical Parameter

Brand/Series: Magnetek/Yaskawa A1000 Series

Model: CIMR-AU4A0088AAA

Rated output current: 88 A

Applicable motor power: 30 kW (approximately 40 HP)

Input voltage: three-phase 380-480 VAC ± 10%

Output frequency range: 0.01-400 Hz

Control method:

V/f control

Vector control (sensorless)

Closed loop vector control (with encoder)

Communication interface: built-in Modbus; Optional Profibus DP, DeviceNet, EtherNet/IP, MECHATROLINK, etc

Cooling method: air cooling

Protection level: IP20 (standard)

Application scenarios

Lifting and Material Handling System

Suitable for high starting torque and high-speed stability applications such as bridge cranes, elevators, and belt conveyor systems.

Pump and fan control

Used for central air conditioning systems, water treatment, and ventilation systems to achieve energy-saving operation and soft start control.

Numerical Control Machine Tools and Processing Equipment

Provide high response and high-precision motor control for dynamic control processes such as cutting, feeding, and positioning.

Elevator and Vertical Conveyor System

Supporting closed-loop control, it can achieve smooth start stop and constant speed operation, improving ride comfort.

Automatic production line

Execute high-frequency start stop control as the main drive or auxiliary shaft drive unit in continuous or intermittent automatic lines.

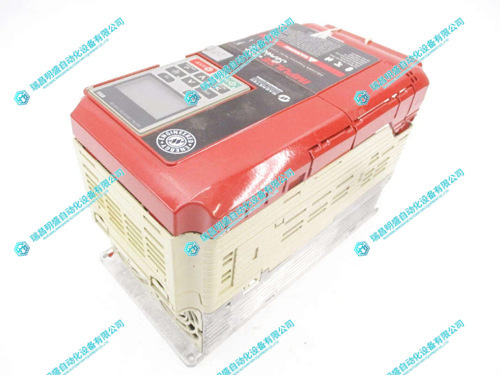

2.产      品      展      示
