GIDINGS&LEWIS 502-03782-00输入编码器模块

1.产 品 资 料 介 绍：

Giddings & Lewis 502-03782-00 输入编码器模块详解

一、产品概述

二、产品特点

（一）多通道支持

（二）高精度计数

（三）高速信号处理

英文资料：

Giddings&Lewis 502-03782-00 Input Encoder Module Detailed Explanation

1、 Product Overview

The Giddings&Lewis 502-03782-00 input encoder module, as a key component of the PiC900 series control system, plays an indispensable role in the field of industrial automation. Its core function is to receive and accurately process feedback signals from multi-channel incremental encoders. With its outstanding performance, it provides reliable and accurate position and velocity feedback for CNC machine tools, servo systems, and various automation equipment. It is the core module for building high-performance motion control systems and lays a solid foundation for the precise and efficient operation of industrial production.

2、 Product Features

（1） Multi channel support

This module performs well in channel support and can meet the complex requirements of multi axis control systems. It supports up to 4 channels of incremental encoder inputs, which means that signals from 4 incremental encoders can be simultaneously connected and processed on one module, greatly simplifying device layout and wiring complexity in multi axis control scenarios. Moreover, each channel has powerful signal processing capabilities, which can simultaneously process A/B phase and index pulse signals, ensuring that the feedback information from each encoder can be fully and accurately captured, providing comprehensive data support for multi axis collaborative control.

（2） High precision counting

High precision is one of the significant advantages of this module, which has a built-in 24 bit up/down counter. This high configuration enables the module to achieve high-resolution pulse counting. The 24 bit counting accuracy can accurately identify the subtle pulse changes feedback by the encoder, providing extremely high precision guarantee for the position control of the equipment and meeting the strict requirements of precision machining, high-precision positioning and other scenarios. In addition, the module also provides practical position locking function, which can be flexibly triggered. It can be triggered by the encoder's own index pulse or by external fast input. In applications that require precise locking of specific position information, such as product positioning detection and processing process switching, it plays an important role and effectively improves the accuracy and flexibility of system control.

（3） High speed signal processing

This module is divided into standard and high-speed versions to meet the signal processing speed requirements of different application scenarios, achieving comprehensive coverage of different speed levels. The standard version can support input frequencies up to 250 kHz, which can meet the signal processing requirements of general industrial automation equipment, such as position and speed feedback of ordinary automation production lines. The high-speed version has stronger performance and can handle input frequencies up to 2.5 MHz. This excellent high-speed processing capability makes it perform well in high-speed servo systems, such as spindle control of high-speed CNC machine tools and precise positioning of high-speed conveying equipment. It can process high-frequency signals fed back by encoders in real time and quickly, ensuring timely response of the system to equipment operating status and avoiding control errors caused by signal processing delays.

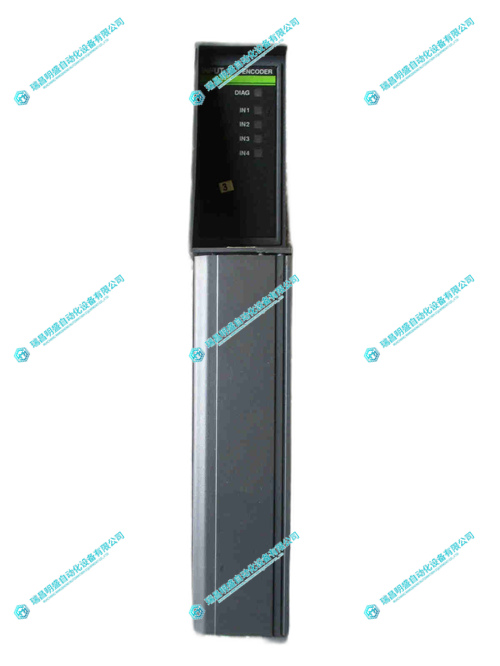

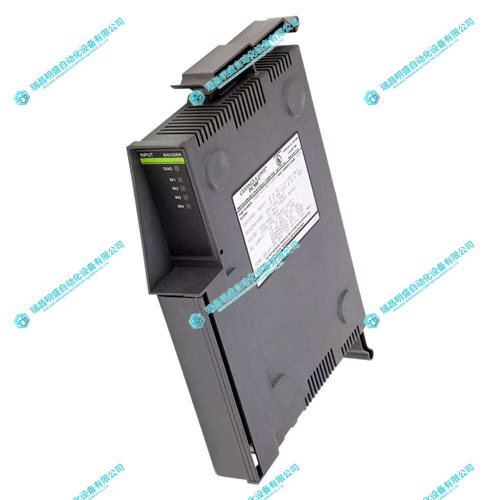

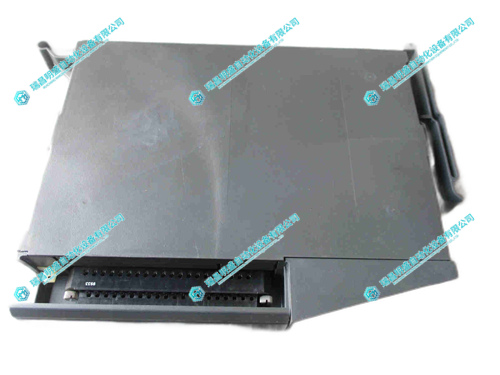

 2.产      品      展      示
