GIDINGS&LEWIS 401-34226-00伺服电机

 GIDINGS&LEWIS  401-34226-00伺服电机

1.产 品 资 料 介 绍：

产品概述

核心特性

1. 结构与原理：采用永磁同步结构，定子绕组产生旋转磁场，与转子永磁体相互作用驱动旋转。通过调节输入电流的频率、幅值和相位，实现精准控制，搭配编码器可进一步提升定位精度。
2. 性能优势：额定功率与扭矩覆盖多规格，支持短时峰值扭矩输出，满足启停、重载需求；转速范围宽，控制精度高，转速波动误差小，定位精准；响应速度快，动态性能优异，可快速启停、变速，运行平稳。

应用场景

• 数控机床：驱动主轴和进给轴，保证高速切削稳定性与微米级加工精度，适配复杂零件多轴联动加工。
• 自动化生产线：控制输送、分拣、装配设备，实现物料精准输送、快速分拣与精密装配，提升生产效率。
• 工业机器人：驱动关节与末端执行器，完成搬运、焊接等复杂动作，确保高速作业中的精度与安全性。
• 其他领域：适配印刷、包装、纺织等设备，控制速度与位置，保障产品质量与生产连续性。

英文资料：

Product Overview

GIDINGS&LEWIS 401-34226-00 servo motor is a core power component in the field of industrial automation. By collaborating with servo drives, it accurately converts electrical signals into mechanical motion, achieving precise control of speed, position, and torque, adapting to complex industrial environments, and providing power support for efficient and stable operation of equipment.

Core Features

Structure and principle: Adopting a permanent magnet synchronous structure, the stator winding generates a rotating magnetic field, which interacts with the rotor permanent magnet to drive rotation. By adjusting the frequency, amplitude, and phase of the input current, precise control can be achieved, and coupled with an encoder, the positioning accuracy can be further improved.

Performance advantages: The rated power and torque cover multiple specifications, supporting short-term peak torque output to meet start stop and heavy load requirements; Wide speed range, high control accuracy, small speed fluctuation error, and precise positioning; Fast response speed, excellent dynamic performance, quick start stop, variable speed, and smooth operation.

Application scenarios

Numerical Control Machine Tool: Drive the spindle and feed axis to ensure high-speed cutting stability and micrometer level machining accuracy, suitable for multi axis linkage machining of complex parts.

Automated production line: controls conveying, sorting, and assembly equipment to achieve precise material conveying, fast sorting, and precision assembly, improving production efficiency.

Industrial robots: Drive joints and end effectors to complete complex actions such as handling and welding, ensuring accuracy and safety in high-speed operations.

Other fields: Adapt printing, packaging, textile and other equipment, control speed and position, ensure product quality and production continuity.

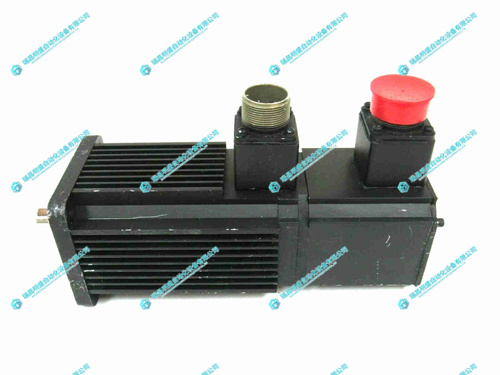

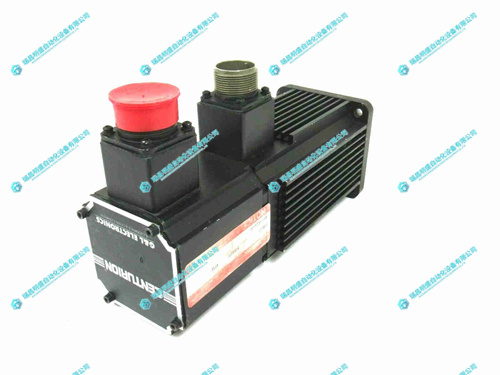

 2.产      品      展      示
