1.产 品 资 料 介 绍：
- 安装 SEW-EURODRIVE DT100LS4BM/HR 需选用 B3 底脚安装支架，固定扭矩 150-180N・cm，适配 100mm IEC 机座尺寸，避免运行振动移位。
- 接线前确认供电电压与 DT100LS4BM/HR 额定 230/400VAC 匹配，防止超压损坏 2.2kW 功率级绕组及内置 AC 制动线圈。
- 该型号集成齿轮减速机构，需按负载需求匹配输出转速，建议通过 MOVITOOLS MotionStudio 软件配置参数优化传动效率。
- 电源电缆选用≥2.5mm² 铜导线，制动线圈接线单独布线，多股导线压接铜鼻子，端子紧固按 1.2N・m 扭矩操作。
- 定期用干燥抹布清洁 DT100LS4BM/HR 外壳，IP55 防护需重点防范粉尘与飞溅液体，保护齿轮箱密封结构与轴端油封。
- 运行环境温度控制在 - 20℃至 + 40℃，湿度≤85%（无凝露），腐蚀性环境需选配 OS 系列表面防护升级。
- 启动 SEW-EURODRIVE DT100LS4BM/HR 前需检查 AC 制动释放状态，确保制动线圈通电后再加载负载，避免齿轮冲击损坏。
- 联轴器安装利用 28mm 轴径 + 8mm 键槽定位，采用专用压装工具，禁止敲打轴端，保护齿轮箱输入轴系。
- 每 12 个月检测绕组绝缘电阻≥5MΩ，同时检查齿轮箱润滑油位，按 SEW 规范每 5000 小时更换专用齿轮油。
- 闲置超 6 个月重启前，手动转动输出轴检查灵活性，空载预热 20 分钟，逐步加载至额定负载，避免制动粘连故障。
DT100LS4BM/HR齿轮电机 英文资料：
The installation of SEW-EURODRIVE DT100LS4BM/HR requires the use of a B3 foot mounting bracket with a fixed torque of 150-180N · cm, suitable for a 100mm IEC machine base size, to avoid vibration displacement during operation.
Before wiring, confirm that the power supply voltage matches the rated 230/400VAC of DT100LS4BM/HR to prevent overvoltage damage to the 2.2kW power level winding and built-in AC brake coil.
This model integrates a gear reduction mechanism and needs to match the output speed according to the load requirements. It is recommended to optimize the transmission efficiency by configuring parameters through MOVITOOLS MotionStudio software.
The power cable should be made of copper wire with an area of ≥ 2.5mm ², and the brake coil should be wired separately. The multi strand wire should be crimped with a copper nose, and the terminal should be tightened with a torque of 1.2N · m.
Regularly clean the DT100LS4BM/HR casing with a dry cloth. IP55 protection should focus on preventing dust and splashing liquids, and protecting the gearbox sealing structure and shaft end oil seal.
The operating environment temperature should be controlled between -20 ℃ and+40 ℃, and the humidity should be ≤ 85% (no condensation). For corrosive environments, OS series surface protection upgrades should be selected.
Before starting SEW-EURODRIVE DT100LS4BM/HR, it is necessary to check the AC brake release status to ensure that the brake coil is energized before loading the load, in order to avoid gear impact damage.
The coupling installation utilizes a 28mm shaft diameter and 8mm keyway positioning, using specialized press fit tools. It is prohibited to strike the shaft end to protect the input shaft system of the gearbox.
Every 12 months, check the insulation resistance of the winding to be ≥ 5M Ω, and at the same time, check the lubricating oil level of the gearbox. ｒｅｐｌａｃｅ the dedicated gear oil every 5000 hours according to SEW specifications.
Before restarting after being idle for more than 6 months, manually rotate the output shaft to check its flexibility, preheat it for 20 minutes without load, gradually load it to the rated load, and avoid brake adhesion faults.
Summary: The stable operation core of SEW-EURODRIVE DT100LS4BM/HR gear motor lies in standardized installation, voltage matching, braking operation, and regular lubrication and maintenance. With a 2.2kW power, IP55 protection, and integrated deceleration design, it is suitable for industrial scenarios such as conveying equipment and machine tool auxiliary transmission. Combined with compliant operation, it can fully leverage its high reliability and transmission efficiency advantages.

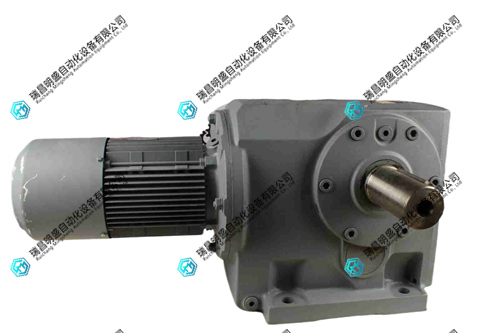

DT100LS4BM/HR齿轮电机 产品展示
