1.产 品 资 料 介 绍：
- ABB 旗下 ACH580 系列 HVAC 专用伺服驱动器，核心作用是实现电机速度、转矩的精准调节，主打高效节能与稳定控制，专为暖通空调及通用工业场景设计
- 品牌：瑞士 ABB，适配机型：兼容感应电机、永磁同步电机（PM）、同步磁阻电机（SynRM），标配适配 4kW 三相异步电机（如 ABB M3BP 100LA4）
- 产品状态：全新原装（含原包装）与测试合格翻新件均有供应，第三方渠道现货充足，原装产品提供 1 年质保服务
- 动力性能：额定功率 4kW（5HP），输出电流 9.4A（重载模式 7.2A），输入电压 380-480V 三相 AC（50/60Hz±5%），效率达 98%，功率因数 0.98
- 结构规格：壁挂式安装，尺寸 125mm（宽）×330mm（高）×223mm（深），重量 4.6kg，防护等级 IP21（可选 IP55 密封版本），集成接线盒设计
- 接口与通信：2 路模拟输入、6 路数字输入、2 路模拟输出、3 路继电器输出；标配 RS-485/Modbus RTU、BACnet MS/TP 协议，可选配 PROFIBUS DP 通信模块（型号 3AXD50000039121） 扩展兼容性
- 安全与防护：内置 SIL3/PL e 认证安全转矩关闭（STO）功能，EMC 符合 IEC EN 61800-3 C2 级标准，具备过流、过压、过热保护
- 核心功能：支持转矩 / 速度双控制模式，内置 HVAC 专用控制逻辑，具备能量优化算法；配备直观操作面板，支持蓝牙远程调试（需选装面板），通过 DriveTune app 可实现远程监控与故障排查
- 应用场景：暖通空调系统（空气处理机组、冷却塔、风机）、工业泵类、传送带、压缩机、搅拌设备等轻工况工业场景，适配食品饮料、纺织、物料搬运等行业
- 替代与兼容：同系列低功率替代型号为 ACH580-01-05A7-4（2.2kW），高功率替代为 ACH580-01-12A4-4（5.5kW）；可直接替换老款 ACS550 系列驱动器，无需改动安装尺寸与接线逻辑

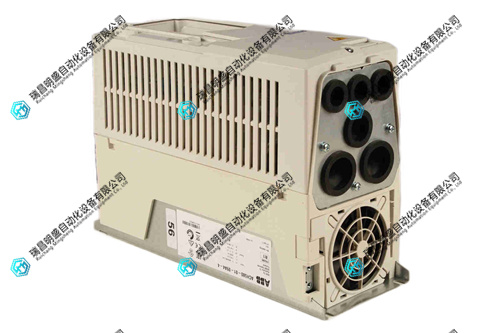

ACH580-01-09A4 -4伺服驱动器 英文资料：
1、 Core positioning
The ACH580 series HVAC dedicated servo drive under ABB is designed to achieve precise adjustment of motor speed and torque, with a focus on high efficiency, energy saving, and stable control. It is specifically designed for HVAC and general industrial scenarios
Brand: ABB Switzerland, compatible with induction motors, permanent magnet synchronous motors (PM), synchronous reluctance motors (SynRM), and standard with 4kW three-phase asynchronous motors (such as ABB M3BP 100LA4)
Product status: Both brand new original (including original packaging) and refurbished parts that have passed testing are available. There is sufficient stock from third-party channels, and original products come with a one-year warranty service
2、 Key parameters
Power performance: rated power 4kW (5HP), output current 9.4A (7.2A in heavy load mode), input voltage 380-480V three-phase AC (50/60Hz ± 5%), efficiency up to 98%, power factor 0.98
Structural specifications: Wall mounted installation, dimensions 125mm (width) x 330mm (height) x 223mm (depth), weight 4.6kg, protection level IP21 (optional IP55 sealed version), integrated junction box design
Interface and Communication: 2 analog inputs, 6 digital inputs, 2 analog outputs, 3 relay outputs; Standard configuration includes RS-485/Modbus RTU, BACnet MS/TP protocol, and optional PROFIBUS DP communication module (model 3AXD50000039121) for extended compatibility
Safety and Protection: Built in SIL3/PL e-certified Safety Torque Off (STO) function, EMC compliant with IEC EN 61800-3 C2 level standard, with overcurrent, overvoltage, and overheating protection
3、 Core functions and applications
Core function: Supports dual control modes of torque/speed, built-in HVAC dedicated control logic, and has energy optimization algorithms; Equipped with an intuitive operation panel that supports Bluetooth remote debugging (optional panel required), remote monitoring and troubleshooting can be achieved through the DriveTune app
Application scenarios: HVAC systems (air handling units, cooling towers, fans), industrial pumps, conveyors, compressors, mixing equipment and other light working industrial scenarios, suitable for industries such as food and beverage, textile, material handling, etc
Substitution and compatibility: The low-power substitution model of the same series is ACH580-01-05A7-4 (2.2kW), and the high-power substitution is ACH580-01-12A4-4 (5.5kW); Can directly ｒｅｐｌａｃｅ old ACS550 series drivers without changing installation dimensions and wiring logic
