1769-L35E控制器

1769-L35E控制器

1.产 品 资 料 介 绍：

1769-L35E控制器产品特点（10条）

1769-L35E是罗克韦尔Allen-Bradley品牌CompactLogix系列可编程控制器（PAC），专为中型工业自动化场景设计，集成强大控制、通信及扩展能力，适配包装机械、物料输送、水处理等多领域，核心特点如下：

1. 高性能核心处理

搭载32位Intel处理器，布尔指令执行速度达0.22µs/指令，内置2MB用户内存，支持复杂逻辑控制、PID调节及数学运算，满足实时控制需求。

2. 双端口以太网通信

集成双RJ45 EtherNet/IP端口，支持10/100Mbps速率与线性拓扑级联，原生兼容CIP Sync时钟同步及CIP Motion协议，简化组网并降低成本。

3. 多轴运动控制能力

支持最多8轴集成运动控制，可实现电子凸轮、飞剪、追剪等多轴协调功能，直接适配伺服系统，无需额外运动控制器。

4. 灵活I/O扩展能力

支持最多16个本地1769系列I/O模块（左右各8个），兼容数字量、模拟量、温度等多种模块，可通过EtherNet/IP扩展远程I/O，构建分布式架构。

5. 多语言编程兼容

适配Studio 5000编程环境，全面支持IEC 61131-3标准语言，含梯形图、功能块图、结构化文本等，提供在线编辑与诊断工具，提升开发效率。

6. 可靠数据存储保障

内置非易失性存储器，断电后程序与关键数据不丢失，支持选配CF卡扩展存储，可通过USB或SD卡实现程序备份、恢复及固件升级。

7. 工业级环境适配

工作温度范围0℃~60℃，防护等级IP20，耐受95%湿度（可凝露），具备良好抗干扰能力，适配各类工业现场恶劣环境。

8. 便捷安装与状态监测

采用DIN导轨安装，宽度仅118mm，结构紧凑节省机柜空间；前面板LED指示灯直观显示运行、通信及故障状态，便于快速排查问题。

9. 多协议兼容扩展

除EtherNet/IP外，可扩展RS232端口支持DF1、DH485协议，能与HMI、远程I/O及其他自动化设备无缝集成，适配现有系统升级。

10. 国际合规认证保障

通过CE、UL、cULus等国际认证，符合工业安全与环保标准，可无缝融入罗克韦尔自动化生态，适配全球多行业应用场景。

1769-L35E控制器 英文资料：

Product features of 1769-L35E controller (10 items)

1769-L35E is a Rockwell Allen Bradley brand CompactLogix series programmable controller (PAC) designed specifically for medium-sized industrial automation scenarios. It integrates powerful control, communication, and expansion capabilities and is suitable for various fields such as packaging machinery, material handling, and water treatment. Its core features are as follows:

1. High performance core processing

Equipped with a 32-bit Intel processor, the Boolean instruction execution speed reaches 0.22 µ s/instruction, with 2MB of built-in user memory, supporting complex logic control, PID regulation, and mathematical operations to meet real-time control requirements.

2. Dual port Ethernet communication

Integrated dual RJ45 EtherNet/IP ports, supporting 10/100Mbps rates and linear topology cascading, native compatibility with CIP Sync clock synchronization and CIP Motion protocol, simplifying networking and reducing costs.

3. Multi axis motion control capability

Supports up to 8-axis integrated motion control, which can achieve multi axis coordination functions such as electronic cam, flying shear, and chasing shear. It can be directly adapted to servo systems without the need for additional motion controllers.

4. Flexible I/O expansion capability

Supports up to 16 local 1769 series I/O modules (8 on each side), compatible with various modules such as digital, analog, temperature, etc. Remote I/O can be extended through EtherNet/IP to build a distributed architecture.

5. Multi language programming compatibility

Compatible with Studio 5000 programming environment, fully supports IEC 61131-3 standard language, including ladder diagrams, functional block diagrams, structured text, etc., providing online editing and diagnostic tools to improve development efficiency.

6. Reliable data storage guarantee

Built in non-volatile memory ensures that programs and critical data are not lost after power failure. It supports optional CF card expansion storage and can achieve program backup, recovery, and firmware upgrades through USB or SD card.

7. Industrial grade environmental adaptation

The working temperature range is 0 ℃~60 ℃, the protection level is IP20, and it can withstand 95% humidity (can condense). It has good anti-interference ability and is suitable for various harsh environments in industrial sites.

8. Convenient installation and status monitoring

Adopting DIN rail installation, with a width of only 118mm, the structure is compact and saves cabinet space; The front panel LED indicator lights intuitively display the operation, communication, and fault status, making it easy to quickly troubleshoot problems.

9. Multi protocol compatibility extension

In addition to EtherNet/IP, the expandable RS232 port supports DF1 and DH485 protocols, enabling seamless integration with HMI, remote I/O, and other automation devices, and adapting to existing system upgrades.

10. International compliance certification guarantee

Through international certifications such as CE, UL, cULus, etc., it meets industrial safety and environmental standards and can seamlessly integrate into the Rockwell Automation ecosystem, adapting to multiple industry application scenarios worldwide.

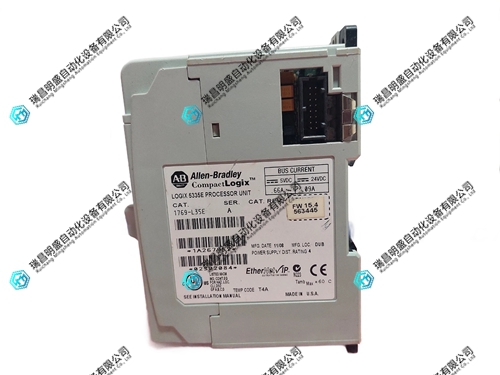

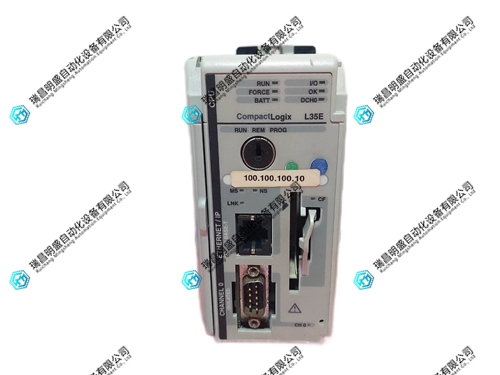

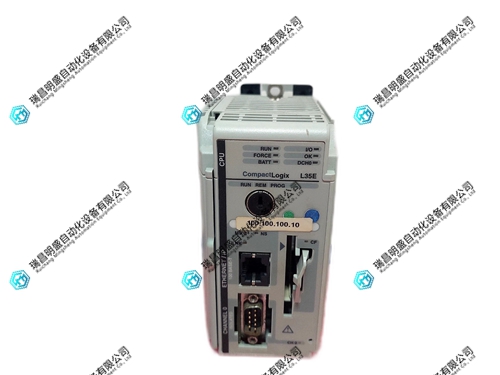

1769-L35E控制器 产品展示

产品视频
