MG2-1F-3FE电源模块

MG2-1F-3FE电源模块

1.产 品 资 料 介 绍：

1. 品牌型号：美国 Magnetek（美格泰克）MG2-1F-3FE，属于 MG2 系列工业级 AC-DC 开关电源模块。
2. 核心定位：面向工业控制、通信、自动化设备的高可靠直流供电单元，支持冗余与并联扩展。
3. 输入规格：宽压 100–240V AC，50/60Hz，适配全球工业电网，输入电流约 18A。
4. 输出规格：典型输出 24V DC，电流 13–25A，功率 300–600W，电压精度优于 ±1%。
5. 效率表现：转换效率 85%–90%，低损耗、高功率密度，节省安装空间。
6. 冷却方式：自然风冷或强制风冷，适配不同机柜散热条件。
7. 模块化设计：支持热插拔、多模块并联，可构建 N+1 冗余或大功率输出系统。
8. 保护功能：内置过压、过流、短路、过温四重保护，故障可自动恢复。
9. 状态指示：面板集成 LED，实时显示电源工作与故障状态。
10. 远程监控：可选输出状态干接点信号，支持 PLC/SCADA 远程诊断。
11. 安装形式：标准机架 / 导轨安装，结构紧凑，便于工业机柜集成。
12. 物理参数：重量约 4.3–4.5kg，金属外壳，抗振动、抗电磁干扰。
13. 环境适应：工作温度 - 10℃~+70℃，湿度 5%–95% 无凝露，满足工业现场要求。
14. 应用场景：工业自动化、起重机、通信基站、半导体设备、轨道交通控制系统。
15. 替代型号：兼容 MG21F3FE，可直接替换，保障系统兼容性。

MG2-1F-3FE电源模块 英文资料：

Brand model: Magnetek MG2-1F-3FE from the United States, belonging to the industrial grade AC-DC switching power supply module of the G2 series.

Core positioning: A highly reliable DC power supply unit for industrial control, communication, and automation equipment, supporting redundancy and parallel expansion.

Input specifications: Wide voltage 100-240V AC, 50/60Hz, compatible with global industrial power grids, input current of approximately 18A.

Output specifications: Typical output 24V DC, current 13-25A, power 300-600W, voltage accuracy better than ± 1%.

Efficiency performance: Conversion efficiency of 85% -90%, low loss, high power density, saving installation space.

Cooling method: natural air cooling or forced air cooling, suitable for different cabinet cooling conditions.

Modular design: supports hot swapping, multi module parallel connection, and can build N+1 redundant or high-power output systems.

Protection function: Built in four fold protection for overvoltage, overcurrent, short circuit, and overheating, with automatic fault recovery.

Status indication: The panel integrates LED, which displays real-time power supply operation and fault status.

Remote monitoring: Optional output status dry contact signal, supports PLC/SCADA remote diagnosis.

Installation form: Standard rack/rail installation, compact structure, convenient for industrial cabinet integration.

Physical parameters: Weight approximately 4.3-4.5kg, metal casing, anti vibration, anti electromagnetic interference.

Environmental adaptation: Working temperature -10 ℃~+70 ℃, humidity 5% -95%, no condensation, meeting the requirements of industrial sites.

Application scenarios: industrial automation, cranes, communication base stations, semiconductor equipment, rail transit control systems.

Alternative model: compatible with MG21F3FE, can be directly replaced to ensure system compatibility.

In summary, MG2-1F-3FE is a 24V industrial grade switching power supply from the Magnetek G2 series. With its core advantages of wide voltage input, high reliability, parallel redundancy, and multiple protections, it is the preferred module for stable power supply of industrial equipment.

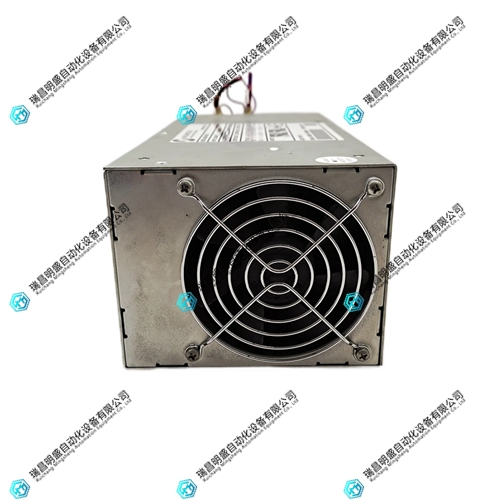

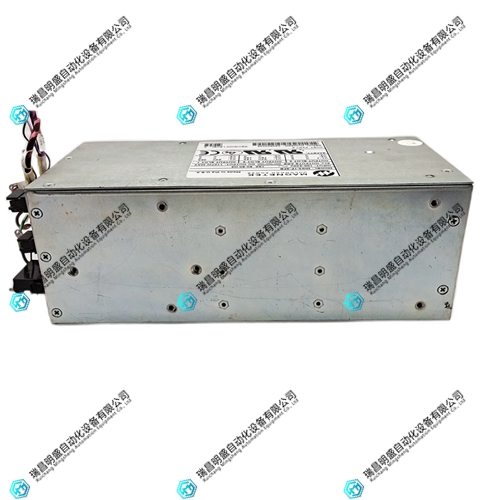

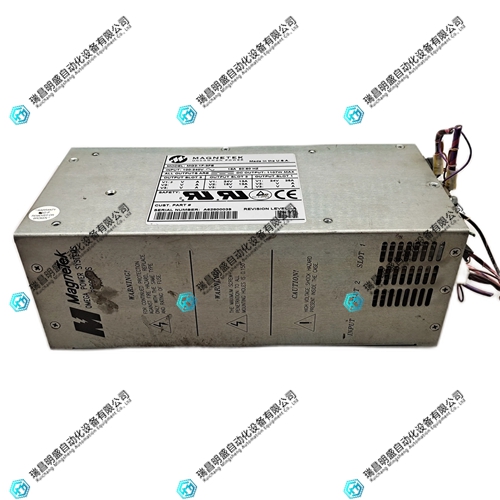

MG2-1F-3FE电源模块 产品展示
