1.产 品 资 料 介 绍：
- 品牌型号：德国库卡（KUKA）KCP2，物料号 00-130-547，为 KRC2/KRC2 ED05/KRC3 机器人专用手持示教终端。
- 核心定位：机器人编程、手动示教、调试、状态监控与安全操作的核心人机交互单元。
- 系统适配：专属匹配 KUKA KRC2、KRC2 ED05、KRC3 控制柜，兼容 MFC3、CI3 等核心模块。
- 通信方式：通过CAN 总线与控制器高速通信，保障指令与数据实时传输。
- 显示配置：8 英寸彩色 TFT LCD 屏，分辨率640×480（VGA），图形化界面清晰直观。
- 操作输入：薄膜键盘 +6D 鼠标组合，支持机器人多轴精准手动控制。
- 安全设计：集成急停按钮、三段式使能开关、模式选择旋钮，符合工业安全标准。
- 供电规格：24VDC，额定电流约 0.5A，由机器人控制柜统一供电。
- 接口扩展：预留 DIN 接口，可外接 MF II 键盘；支持程序备份与数据传输。
- 防护等级：外壳IP54，防尘防溅，适应车间油污、粉尘环境。
- 物理参数：重量约3.18kg（7lbs），人体工学手持设计，长时间操作不易疲劳。
- 环境适应：工作温度0℃~+45℃，湿度 5%~95% 无凝露，满足工业现场要求。
- 功能覆盖：支持程序编辑、坐标示教、参数设置、故障诊断、伺服启停全流程控制。
- 操作模式：提供手动（T1/T2）、自动（AUT）等多模式切换，适配不同作业场景。
- 应用场景：汽车制造、焊接、搬运、装配、喷涂等工业机器人自动化生产线。
KCP2 00-130-547示教器 英文资料：
Brand and model: KUKA KCP2 from Germany, material number 00-130-547, is a handheld teaching terminal specifically designed for KRC2/KRC2 ED05/KRC3 robots.
Core positioning: The core human-machine interaction unit for robot programming, manual teaching, debugging, status monitoring, and safe operation.
System adaptation: Exclusive matching KUKA KRC2, KRC2 ED05, KRC3 control cabinets, compatible with core modules such as MFC3 and CI3.
Communication method: High speed communication with the controller through CAN bus to ensure real-time transmission of instructions and data.
Display configuration: 8-inch color TFT LCD screen, resolution 640 × 480 (VGA), clear and intuitive graphical interface.
Operation input: membrane keyboard+6D mouse combination, supporting precise manual control of multiple axes for robots.
Safety design: Integrated emergency stop button, three-stage enable switch, mode selection knob, in compliance with industrial safety standards.
Power supply specification: 24VDC, rated current of about 0.5A, uniformly powered by the robot control cabinet.
Interface extension: Reserved DIN interface, can be connected to an external MF II keyboard; Support program backup and data transfer.
Protection level: IP54 shell, dustproof and splash proof, suitable for workshop oil and dust environments.
Physical parameters: Weight approximately 3.18kg (7lbs), ergonomic handheld design, not easily fatigued after prolonged operation.
Environmental adaptation: Working temperature from 0 ℃ to+45 ℃, humidity from 5% to 95% without condensation, meeting the requirements of industrial sites.
Function coverage: Supports program editing, coordinate teaching, parameter setting, fault diagnosis, and servo start stop full process control.
Operation mode: Provides manual (T1/T2), automatic (AUT) and other multi-mode switching, suitable for different job scenarios.
Application scenarios: Industrial robot automation production lines for automobile manufacturing, welding, handling, assembly, spraying, etc.
Overall, KCP2 00-130-547 is the standard handheld teaching pendant for KUKA KRC2/KRC3 system, with core advantages of CAN bus communication, 8-inch color screen, 6D precise control, and high safety protection. It is an essential terminal for on-site programming and debugging of industrial robots.

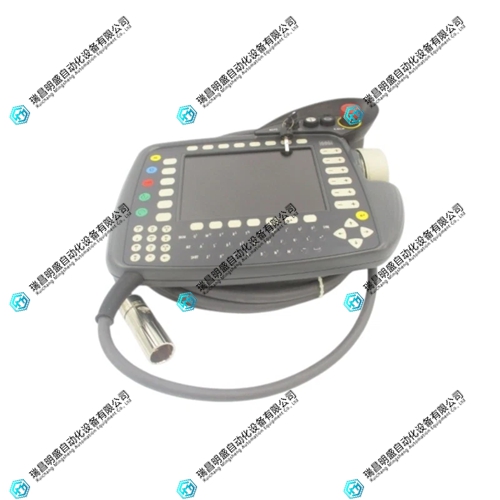

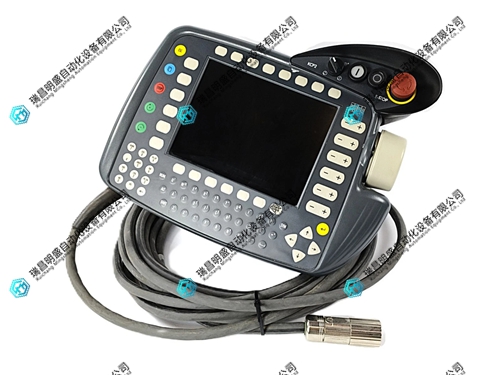

KCP2 00-130-547示教器 产品展示
