ASYST HS80-01 9700-4774-01智能通信网络模块

ASYST  HS80-01 9700-4774-01智能通信网络模块

1.产 品 资 料 介 绍：

1. 品牌型号：美国 ASYST（亚思特），型号HS80-01，物料号9700-4774-01，官方命名SMART-COMM 通信接口模块。
2. 核心定位：半导体自动化产线专用智能通信网关，实现设备间高速数据交互与协议转换。
3. 应用场景：适配 ASYST 晶圆传输系统（如 SMIF-POD、Load Port）、半导体前道 / 后道自动化产线。
4. 通信架构：多协议智能网关，支持现场总线与工业以太网双向转换，打通 OT/IT 数据链路。
5. 协议支持：兼容 SECS/GEM、EtherNet/IP、Modbus TCP、DeviceNet 等半导体行业标准协议。
6. 数据处理：嵌入式实时处理，支持数据采集、缓存、转发与协议解析，保障低延迟传输。
7. 网络接口：标配 RJ45 以太网口，支持 10/100Mbps 自适应，满足产线高速通信需求。
8. 供电规格：24VDC 工业级供电，适配半导体设备标准电源系统，功耗低、稳定性强。
9. 硬件设计：工业级模块化结构，金属外壳，抗电磁干扰，适配洁净车间严苛环境。
10. 物理参数：重量约2.37kg，紧凑型设计，便于机柜 / 设备侧集成安装。
11. 状态监控：内置运行、故障、通信状态指示灯，支持本地快速诊断。
12. 远程管理：支持 Web / 上位机远程配置、固件升级与状态监控，降低运维成本。
13. 保护功能：具备过压、过流、浪涌保护，保障模块与连接设备安全。
14. 兼容性：可直接替换同系列HS80-04（9700-4774-04），系统无缝兼容。
15. 行业认证：符合半导体设备安全与 EMC 标准，适配 Class 100 及以上洁净室环境。

ASYST  HS80-01 9700-4774-01智能通信网络模块 英文资料：

Brand and model: American ASYST, model HS80-01, material number 9700-4774-01, officially named SMART-COMM communication interface module.

Core positioning: A dedicated intelligent communication gateway for semiconductor automation production lines, enabling high-speed data exchange and protocol conversion between devices.

Application scenarios: Adapt to ASYST wafer transfer systems (such as SMIF-POD, Load Port), semiconductor front-end/back-end automation production lines.

Communication architecture: Multi protocol intelligent gateway, supporting bidirectional conversion between fieldbus and industrial Ethernet, and connecting OT/IT data links.

Protocol support: Compatible with semiconductor industry standard protocols such as SECS/GEM, EtherNet/IP, Modbus TCP, DeviceNet, etc.

Data processing: Embedded real-time processing, supporting data collection, caching, forwarding, and protocol parsing to ensure low latency transmission.

Network interface: Standard RJ45 Ethernet port, supports 10/100Mbps adaptive, meets the high-speed communication needs of the production line.

Power supply specification: 24VDC industrial grade power supply, compatible with semiconductor equipment standard power supply system, low power consumption, strong stability.

Hardware design: Industrial grade modular structure, metal shell, anti electromagnetic interference, suitable for harsh environments in clean workshops.

Physical parameters: Weight approximately 2.37kg, compact design, easy to integrate and install on the cabinet/equipment side.

Status monitoring: Built in operation, fault, and communication status indicator lights, supporting local rapid diagnosis.

Remote management: supports web/PC remote configuration, firmware upgrade, and status monitoring, reducing operation and maintenance costs.

Protection function: It has overvoltage, overcurrent, and surge protection to ensure the safety of modules and connected devices.

Compatibility: It can directly ｒｅｐｌａｃｅ the same series HS80-04 (9700-4774-04), and the system is seamlessly compatible.

Industry certification: Compliant with semiconductor equipment safety and EMC standards, suitable for Class 100 and above cleanroom environments.

In summary, ASYST HS80-01 (9700-4774-01) is the SMART-COMM intelligent communication core module in the field of semiconductor automation. Its core advantages include multi protocol compatibility, high-speed stability, industrial grade reliability, and cleanroom adaptation. It is a key component for data interconnection between wafer transmission and automated production lines.

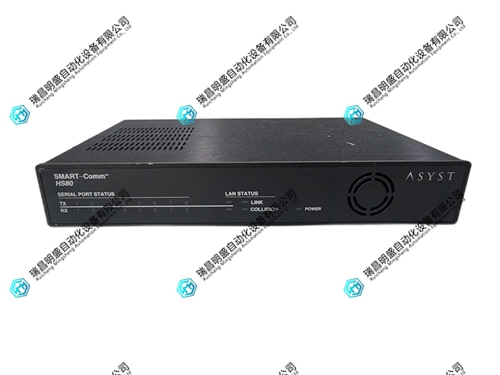

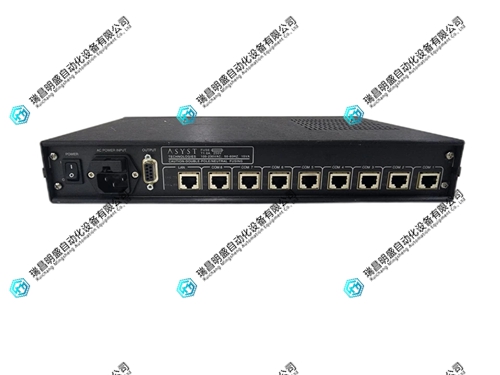

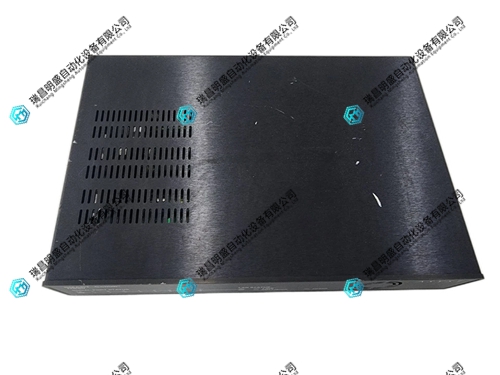

ASYST  HS80-01 9700-4774-01智能通信网络模块 产品展示

产品视频
