1.产 品 资 料 介 绍：
Leica 301-389.030 印刷电路板
开头
- 标准 VME 插卡式架构，适配徕卡 INS3000 机架插槽，直插安装无需改装
- 多层精密阻抗控制线路，高速总线信号传输无失真、无串扰干扰
- 集成专用主控处理芯片，统筹图像采集、运动轴控、传感数据运算
- 双路标准 VME 总线接口，板间数据交互速度快，整机指令响应灵敏
- 板载多路光电隔离通道，强弱电分离，隔绝高压冲击保护核心芯片
- 加厚高 TG 工业 FR4 基材，温变环境不易变形、线路无分层起泡
- 全板沉金工艺焊盘，长期使用抗氧化，焊点稳定不出现虚焊故障
- 集成硬件自检回路，开机自动校验总线、芯片、采集通道状态
- 内置 EMI 多层屏蔽布线，抵御光学设备电机、光源电磁杂波干扰
- 自带稳压滤波电源电路，车间电压小幅波动仍保持信号输出稳定
- 加固元器件焊接工艺，抗设备运转震动，元件不易脱焊脱落
- 预留标准化测试点位，故障检修、信号检测操作简单高效
- 紧凑一体化元件布局，充分利用板卡空间，整机布线整洁简洁
- 低功耗元件搭配，长时间满载运行温升低，无过热停机报错
- 符合欧盟 RoHS 无铅环保标准，适配精密光学设备整机合规出厂
结尾
Leica 301-389.030印刷电路板 产品英文
Leica 301-389.030 Printed Circuit Board
beginning
Leica 301-389.030 is a specialized VME bus Master2 main control PCB board for Leica INS3000 testing equipment. It is manufactured in Germany and is responsible for the overall signal calculation and bus communication of the machine, adapting to the long-term stable operation of precision optical testing equipment.
Standard VME plug-in card architecture, compatible with Leica INS3000 rack slot, direct insertion installation without modification
Multi layer precision impedance control circuit, high-speed bus signal transmission without distortion and crosstalk interference
Integrated dedicated main control processing chip, coordinating image acquisition, motion axis control, and sensor data computation
Dual standard VME bus interface, fast data exchange speed between boards, and sensitive response to machine instructions
Onboard multi-channel optoelectronic isolation channels, strong and weak electrical separation, isolation of high-voltage impact protection core chip
Thickened high TG industrial FR4 substrate, not easily deformed in temperature changing environment, no delamination or foaming in the circuit
Full board immersion gold process solder pads, long-term use anti-oxidation, stable solder joints without virtual soldering faults
Integrated hardware self-test circuit, automatically verifies the status of the bus, chip, and acquisition channel upon startup
Built in EMI multi-layer shielding wiring to resist electromagnetic interference from optical equipment motors and light sources
Equipped with a voltage stabilizing filter power supply circuit, the workshop voltage maintains stable signal output even with slight fluctuations
Reinforce the welding process of electronic components, resist equipment vibration during operation, and prevent component detachment and detachment
Reserve standardized testing points for easy and efficient troubleshooting and signal detection operations
Compact integrated component layout, fully utilizing board space, neat and simple wiring of the entire machine
Low power component combination, long-term full load operation with low temperature rise and no overheating shutdown error
Compliant with EU RoHS lead-free environmental standards, compatible with precision optical equipment, the entire machine is compliant with factory regulations
ending
Leica 301-389.030 printed circuit board has stable bus communication, reliable operation, and strong durability, making it the core control board of Leica INS3000 optical inspection equipment.

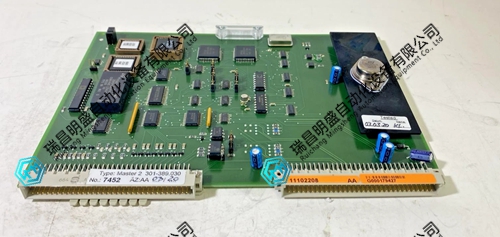

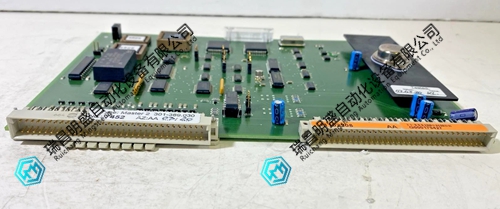

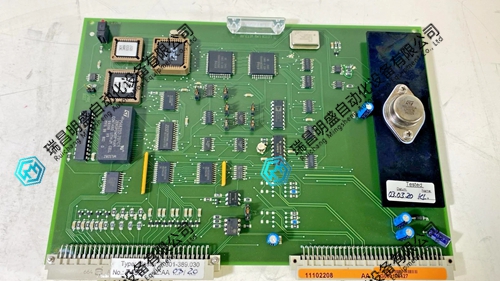

Leica 301-389.030印刷电路板 产品展示
