1.产 品 资 料 介 绍：
SMC NCDQ2B63-45D-XB 薄型气缸产品特点
- 63mm 缸径、45mm 标准行程，单杆双作用驱动
- 超薄方形机身，大幅节省设备安装空间
- 四面带磁性开关槽，传感器安装灵活
- 通孔标准安装方式，拆装固定简单
- 内置强磁活塞，可搭配磁性开关感应行程
- 双向密封结构，气密性好不易漏气
- 适配 1/4 寸 NPT 气口，管路对接便捷
- XB 专用耐温规格，宽温工况稳定运行
- 低速平稳输出，冲击小不伤工件
- 铝合金缸体，轻量化且防锈耐磨
- 标准 145psi 工作气压，输出推力充足
- 多类安装配件可选，适配多种设备结构
- 低摩擦活塞，往复动作顺滑无卡顿
- 通过 RoHS 工业认证，车间长期耐用
- 适配流水线、工装夹具上下料场景结尾：SMC NCDQ2B63-45D-XB 紧凑型气缸推力足、安装灵活，是自动化设备通用气动执行元件。
SMC NCDQ2B63-45D-XB 薄型气缸 产品英文
SMC NCDQ2B63-45D-XB Thin Cylinder Product Features
Introduction: SMC NCDQ2B63-45D-XB belongs to the NCQ2 compact thin cylinder, with a small volume and stable output, suitable for various automated push positioning stations.
63mm cylinder diameter, 45mm standard stroke, single rod double acting drive
Ultra thin square body, greatly saving equipment installation space
Four sided magnetic switch slots, flexible sensor installation
Standard installation method with through-hole, easy to disassemble and fix
Built in strong magnetic piston, can be paired with magnetic switch to sense stroke
Bidirectional sealing structure, airtight and not prone to air leakage
Suitable for 1/4 inch NPT air port, convenient pipeline connection
XB dedicated temperature resistance specification, stable operation under wide temperature conditions
Low speed stable output, minimal impact without damaging the workpiece
Aluminum alloy cylinder body, lightweight and rust resistant and wear-resistant
Standard working pressure of 145psi, sufficient output thrust
Multiple types of installation accessories to choose from, suitable for various device structures
Low friction piston, smooth reciprocating motion without jamming
Through RoHS industrial certification, the workshop is durable for a long time
Adapt to the loading and unloading scenarios of assembly lines and fixtures
Conclusion: SMC NCDQ2B63-45D-XB compact cylinder has sufficient thrust and flexible installation, making it a universal pneumatic actuator for automation equipment.

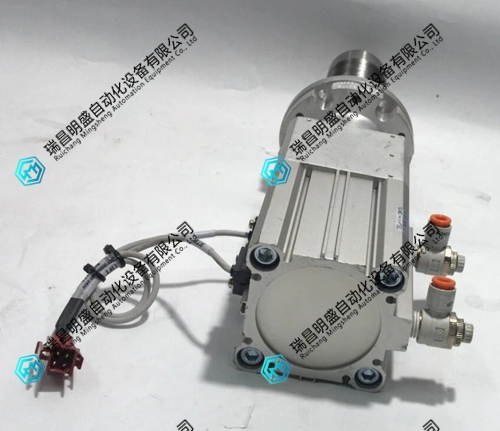

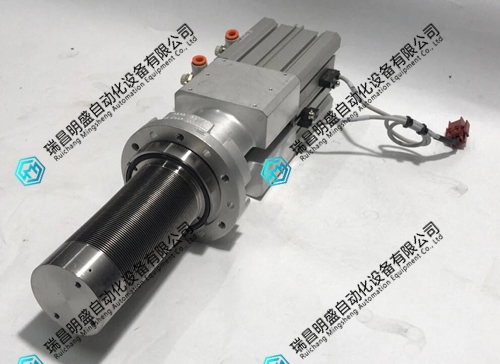

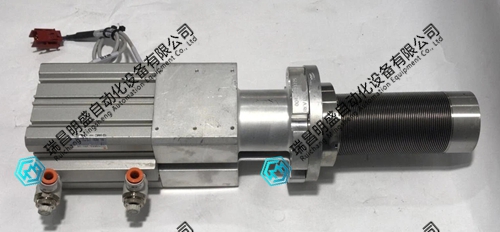

SMC NCDQ2B63-45D-XB 薄型气缸 产品展示
视频展示
