Atlas Copco PF3109-C-DN-HW驱动单元控制器
1.产 品 资 料 介 绍：
一、产品概述
Atlas Copco PF3109-C-DN-HW 是 Power Focus 3100 系列中面向中高扭矩段的智能型电动工具驱动控制器。它用于控制 Atlas Copco Tensor 系列电动拧紧工具，实现精准的扭矩和角度控制，支持工业总线通信与高度集成的拧紧程序管理，广泛应用于对连接件拧紧质量要求高的自动化装配线。
型号含义解析：
PF3109：PF3100 系列中高功率型号，适配高负载拧紧工具
C：标准控制版本，适用于绝大多数工业控制应用
DN：集成 DeviceNet 通讯接口
HW：硬件版本（Hardware Version）
二、核心技术参数
| 项目 | 规格说明 |
|---|---|
| 支持工具 | Tensor ST、STR、SL、EBL、ETX 系列等中高扭矩工具 |
| 电源输入 | AC 100–240V，50/60Hz，单相 |
| 控制功能 | 扭矩控制、角度控制、角度监控、多阶段拧紧控制 |
| 最大程序数 | ≥255 个可独立配置的拧紧程序 |
| 通信方式 | DeviceNet（集成）、以太网、串口、数字 I/O |
| 拧紧数据 | 实时采集、曲线存储、本地与网络上传均支持 |
| 安装方式 | 控制柜内 DIN 导轨安装或面板嵌入式安装 |
英文资料：
1、 Product Overview
Atlas Copco PF3109-C-DN-HW is an intelligent power tool drive controller for the mid to high torque range in the Power Focus 3100 series. It is used to control the Atlas Copco Tensor series electric tightening tools, achieve precise torque and angle control, support industrial bus communication and highly integrated tightening program management, and is widely used in automated assembly lines that require high quality tightening of connectors.
Interpretation of Model Meaning:
PF3109: PF3100 series medium to high power models, suitable for high load tightening tools
C: Standard control version, suitable for the vast majority of industrial control applications
DN: Integrated DeviceNet communication interface
HW: Hardware Version
2、 Core technical parameters
Project Specification Description
Support tools such as Tensor ST, STR, SL, EBL, ETX series and other high torque tools
Power input AC 100-240V, 50/60Hz, single-phase
Control functions include torque control, angle control, angle monitoring, multi-stage tightening control
Maximum number of programs ≥ 255 independently configurable tightening programs
Communication methods: DeviceNet (integrated), Ethernet, serial port, digital I/O
Tighten the support for real-time data collection, curve storage, local and network uploading
Installation method: DIN rail installation or panel embedded installation inside the control cabinet

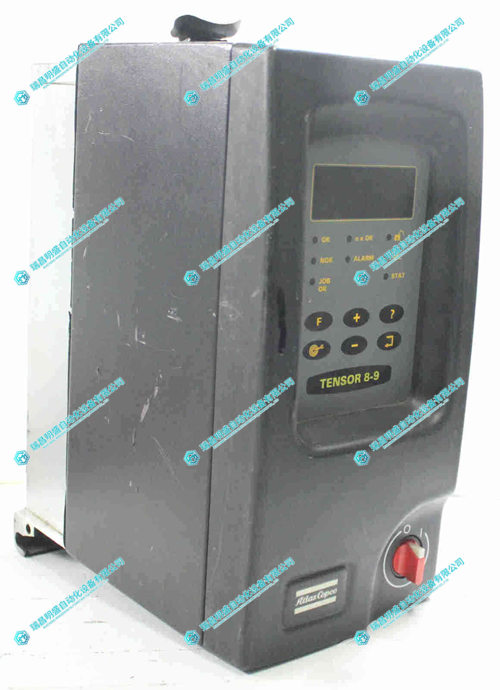

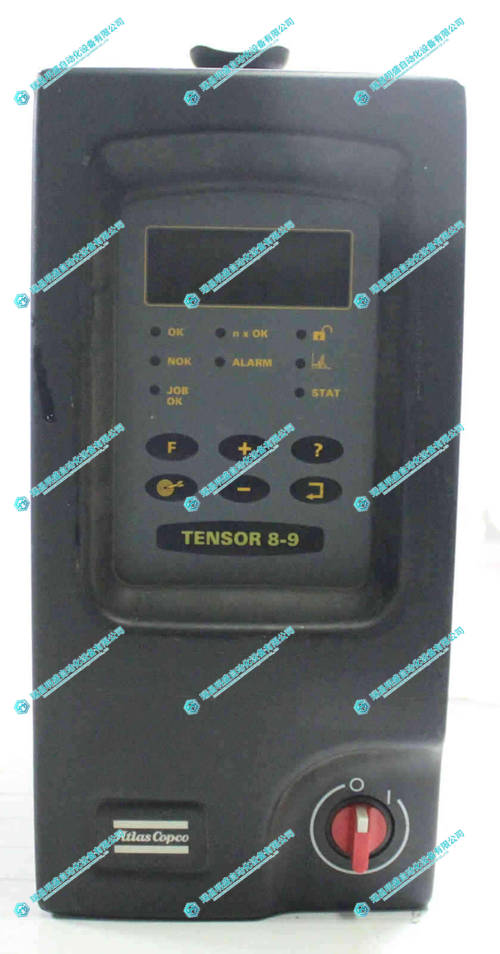

2.产 品 展 示
3.其他产品
4.其他英文产品
Asea EB0524B01 driver input power board
ABB UN1024c-P Remote Terminal Module
ABB 70BK03c-E Control I/O Module
