Atlas Copco PF3107-G-DN-HW控制器驱动装置
1.产 品 资 料 介 绍：
一、产品概述
Atlas Copco PF3107-G-DN-HW 是 Power Focus 3100 系列中面向中高扭矩段的智能电动工具控制器驱动装置。它用于驱动并控制 Atlas Copco Tensor 系列电动拧紧工具，实现高精度、高一致性的扭矩和角度控制，同时具备工业总线通信和多程序控制能力，广泛应用于现代工业装配线。
型号解析：
PF3107：PF3100 系列，适用于中功率工具
G：高级控制版本，支持更复杂的工艺与通信
DN：内置 DeviceNet 通信模块，适配 Allen-Bradley、欧姆龙等 PLC
HW：标准硬件配置
二、技术参数
| 项目 | 参数 |
|---|---|
| 控制方式 | 扭矩控制 / 角度控制 / 角度监控 / 多阶段控制 |
| 电源输入 | AC 100–240V，50/60Hz，自适应 |
| 通信协议 | DeviceNet（内置）、以太网、RS232、数字 I/O |
| 支持工具 | Tensor ST、SL、EBL、ETX、STR 等中扭矩段电动工具 |
| 最大支持程序数 | ≥255 个 |
| 数据记录 | 支持本地数据存储、曲线采集、追溯功能 |
| 程序切换 | 支持远程信号切换 / 条码扫描器 / 工位识别 |
三、典型应用领域
1. 汽车制造与总装
动力总成、底盘、转向系统 的螺栓拧紧工位
与 PLC 与 MES 联动，实现质量追溯、工位绑定
2. 新能源汽车与动力电池行业
电池壳体、电控系统、电驱装配中要求高一致性扭矩控制的应用
与机器人协作，执行自动拧紧操作
3. 工业自动化与机器人装配站
与机器人臂端集成，执行多角度/多段位拧紧任务
图像识别或工位定位触发自动程序选择
4. 工程机械、轨道交通
对重载连接部位的拧紧过程提供多段复合控制
高强度环境下连续工作稳定可靠
5. 家电与电气装配
支持灵活切换多工艺程序，适合中等扭矩范围内的快速装配任务
拧紧结果全记录，满足质量审核要求
英文资料：
1、 Product Overview
Atlas Copco PF3107-G-DN-HW is an intelligent power tool controller drive device for the mid to high torque range in the Power Focus 3100 series. It is used to drive and control the Atlas Copco Tensor series electric tightening tools, achieving high-precision and high consistency torque and angle control. It also has industrial bus communication and multi program control capabilities, and is widely used in modern industrial assembly lines.
Model analysis:
PF3107: PF3100 series, suitable for medium power tools
G: Advanced control version, supporting more complex processes and communication
DN: Built in DeviceNet communication module, compatible with Allen Bradley, Omron and other PLCs
HW: Standard hardware configuration
2、 Technical parameters
Project parameters
Control mode: torque control/angle control/angle monitoring/multi-stage control
Power input AC 100-240V, 50/60Hz, adaptive
Communication protocols DeviceNet (built-in), Ethernet RS232、 Digital I/O
Support tools such as Tensor ST, SL, EBL, ETX, STR, and other electric tools in the torque range
Maximum number of supported programs ≥ 255
Data recording supports local data storage, curve collection, and traceability functions
Program switching supports remote signal switching/barcode scanner/workstation recognition
3、 Typical application areas
1. Automotive manufacturing and final assembly
Bolt tightening station for powertrain, chassis, and steering system
Linkage with PLC and MES to achieve quality traceability and workstation binding
2. New energy vehicles and power battery industry
Application of high consistency torque control in battery casing, electronic control system, and electric drive assembly
Collaborate with robots to perform automatic tightening operations
3. Industrial automation and robot assembly station
Integrate with the robotic arm end to perform multi angle/multi-stage tightening tasks
Automatic program selection triggered by image recognition or workstation positioning
4. Construction machinery and rail transit
Provide multi-stage composite control for the tightening process of heavy-duty connection parts
Stable and reliable continuous operation in high-intensity environments
5. Home appliances and electrical assembly
Support flexible switching of multiple process programs, suitable for fast assembly tasks within the medium torque range
Full record of tightening results, meeting quality audit requirements

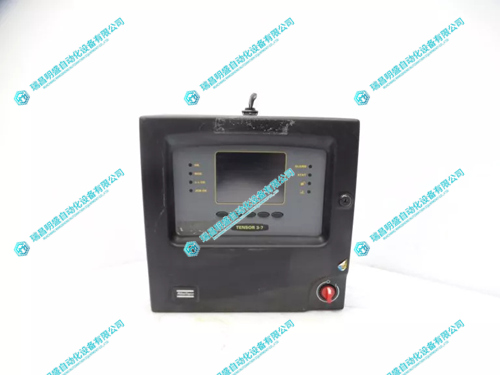

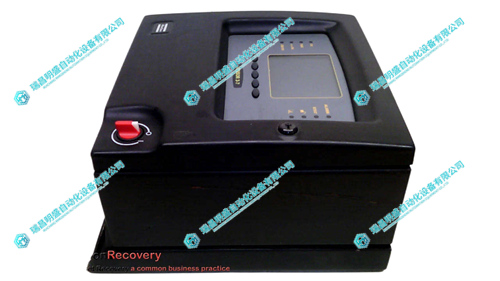

2.产 品 展 示
