AMAT Applied Materials  15049105数字输入/输出模块

1.产 品 资 料 介 绍：

AMAT Applied Materials 15049105 数字输入 / 输出模块

核心规格

功能特点

• 光电隔离：所有输入通道均采用光电隔离设计，隔离电压≥2500Vrms，有效防止信号干扰
• 独立继电器：每路输出配备独立继电器，单路故障不影响其他通道，提高系统可靠性
• 状态指示：每路输入 / 输出均有 LED 状态指示灯，便于快速诊断和维护
• 宽温设计：工业级元器件，适应半导体车间环境温度变化
• 灵活配置：支持通过软件配置输入类型、响应时间和通信参数

典型应用场景

• 工艺腔室门开关状态监测与控制
• 真空阀门、气动执行器的控制与状态反馈
• 设备安全联锁系统
• 晶圆传输系统的传感器信号采集与执行器控制
• 设备报警与指示灯控制

安装与维护建议

1. 安装：
   • 安装在干燥、无尘的控制柜内
   • 保持模块周围有足够散热空间（≥50mm）
   • 确保良好接地，接地电阻≤4Ω
2. 接线：
   • 输入信号线与输出控制线分开布线
   • 注意区分输入公共端与输出公共端
   • 输出回路中建议安装适当保险丝保护继电器
3. 调试：
   • 使用 AMAT 专用软件或标准 Modbus 工具配置参数
   • 逐一测试每个输入 / 输出通道功能
   • 验证通信链路稳定性

AMAT Applied Materials 15049105数字输入/输出模块  英文资料：

AMAT Applied Materials 15049105 Digital Input/Output Module

AMAT 15049105 is an industrial grade digital input/output hybrid module designed specifically for semiconductor equipment control, suitable for platforms such as Centura and Endura. It provides 16 isolated digital inputs and 16 relay outputs, which can communicate with the main controller through RS-485 interface and support Modbus RTU protocol.

Core specifications

Project Specification Description

Channel configuration with 16 input/16 output balanced input-output ratio, suitable for mixed control scenarios

Input type 24V DC photoelectric isolation supports dry/wet contact signals, response time<1ms

Output type: Relay Isolation Output (SPDT). Each independent relay can withstand high current loads

Communication interface RS-485 (Modbus RTU) supports multi node networking, with a maximum transmission distance of 1200 meters

Working voltage 24V DC ± 10%, typical power consumption<10W

Operating temperature range of 0 ℃~50 ℃, suitable for industrial environments

Protection level IP20 dustproof design, suitable for installation inside control cabinets

Installation method: 35mm DIN rail or panel installation, flexible installation, suitable for various control cabinet layouts

Features

Optoelectronic isolation: All input channels are designed with optoelectronic isolation, with an isolation voltage of ≥ 2500Vrms, effectively preventing signal interference

Independent relay: Each output is equipped with an independent relay, and a single fault does not affect other channels, improving system reliability

Status indicator: Each input/output has an LED status indicator light for quick diagnosis and maintenance

Wide temperature design: industrial grade components that adapt to temperature changes in semiconductor workshop environments

Flexible configuration: supports software configuration of input types, response times, and communication parameters

Typical application scenarios

Monitoring and Control of Process Chamber Door Opening and Closing Status

Control and state feedback of vacuum valves and pneumatic actuators

Equipment safety interlock system

Sensor signal acquisition and actuator control of wafer transfer system

Equipment alarm and indicator light control

Installation and maintenance recommendations

Installation:

Installed in a dry and dust-free control cabinet

Maintain sufficient heat dissipation space around the module (≥ 50mm)

Ensure good grounding, with a grounding resistance of ≤ 4 Ω

Wiring:

Separate the wiring of input signal lines and output control lines

Pay attention to distinguishing between input common terminal and output common terminal

It is recommended to install appropriate fuses to protect relays in the output circuit

Debugging:

Configure parameters using AMAT dedicated software or standard Modbus tools

Test each input/output channel function one by one

Verify the stability of the communication link

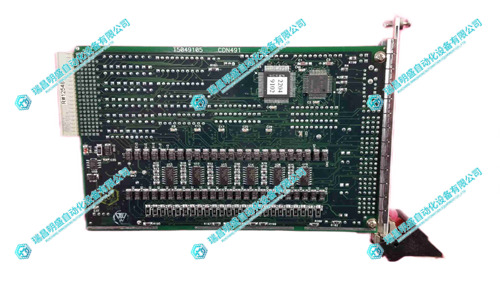

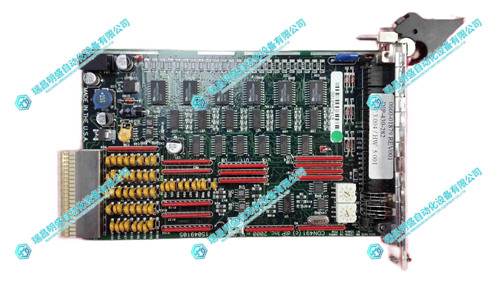

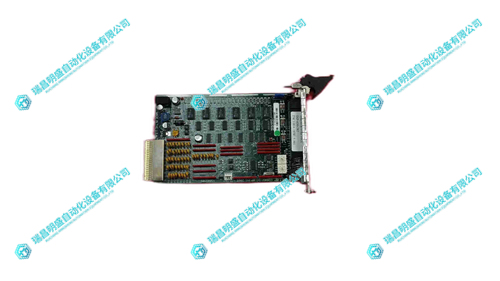

 AMAT Applied Materials 15049105数字输入/输出模块 产品展示

 产品视频
