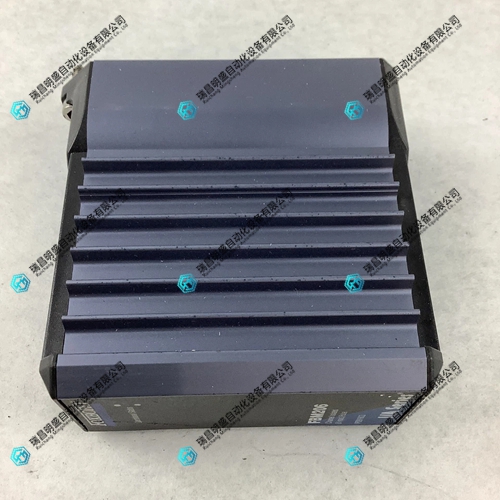

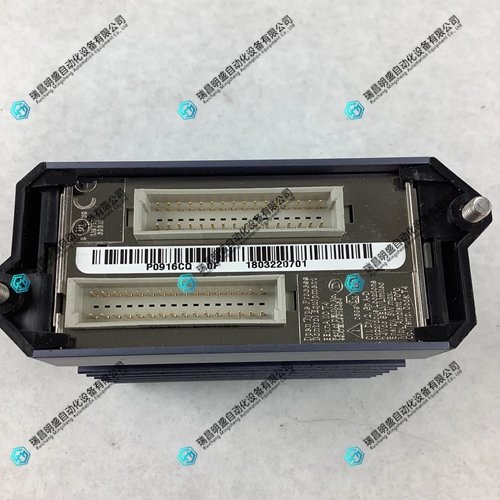

P0916CQ FBM206脉冲输入模块

1.产 品 资 料 介 绍：

P0916CQ FBM206 脉冲输入模块

1. 属于 Foxboro I/A Series DCS 系统，为 8 通道独立隔离脉冲输入模块。
2. 每通道电气全隔离，通道间、通道对地隔离耐压 2500V RMS，抗干扰、防地环流。
3. 输入电压范围 7–27VDC，兼容单端 / 差分脉冲信号，适配各类脉冲型传感器。
4. 最大输入频率 25kHz，响应时间＜2ms，满足高速脉冲采集需求。
5. 支持频率测量、脉冲计数、脉冲累加、正交编码脉冲解析，适配流量、转速、位置监测。
6. 可软件配置脉冲当量、缩放系数、计数分辨率，灵活适配不同传感器与测量场景。
7. 24VDC 供电，最大功耗 7W，支持冗余双电源，供电稳定可靠。
8. 配备 LED 状态指示灯，直观显示模块运行、通信及各通道脉冲输入状态。
9. 支持冗余 2Mbps 现场总线通信，保障与 FCM/FCP 控制器稳定数据交互。
10. 支持在线热插拔，维护无需断电拆线，不影响系统连续运行。
11. 工业级宽温设计，工作温度 - 40℃~+70℃，满足 G3 严酷工业环境标准。
12. 模块化结构，DIN 导轨安装，配合专用 TA 端子组件，接线与部署便捷。
13. 无缝集成 I/A Series 控制系统，支持在线诊断、状态监控与 SOE 事件记录。
14. 适用于石油化工、电力、冶金、水处理等行业的流量计量、转速监测、位置反馈、事件计数场景。

P0916CQ FBM206脉冲输入模块 英文资料：

P0916CQ FBM206 Pulse Input Module

Belonging to the Foxboro I/A Series DCS system, it is an 8-channel independent isolated pulse input module.

Each channel is fully isolated electrically, with a voltage resistance of 2500V RMS between channels and between channels to ground isolation, anti-interference, and anti ground circulation.

The input voltage range is 7-27VDC, compatible with single ended/differential pulse signals, and suitable for various pulse type sensors.

The maximum input frequency is 25kHz, and the response time is less than 2ms, meeting the requirements of high-speed pulse acquisition.

Support frequency measurement, pulse counting, pulse accumulation, orthogonal coding pulse analysis, and adapt to flow, speed, and position monitoring.

The software can be configured with pulse equivalent, scaling factor and counting resolution to flexibly adapt to different sensors and measurement scenes.

24VDC power supply, maximum power consumption of 7W, supports redundant dual power supply, stable and reliable power supply.

Equipped with LED status indicator lights, it intuitively displays the operation, communication, and pulse input status of each channel of the module.

Support redundant 2Mbps fieldbus communication to ensure stable data exchange with FCM/FCP controllers.

Support online hot plugging, maintenance does not require power outage or disconnection, and does not affect the continuous operation of the system.

Industrial grade wide temperature design, working temperature -40 ℃~+70 ℃, meeting G3 harsh industrial environment standards.

Modular structure, DIN rail installation, combined with dedicated TA terminal components, convenient wiring and deployment.

Seamless integration of I/A Series control system, supporting online diagnosis, status monitoring, and SOE event recording.

Suitable for flow measurement, speed monitoring, position feedback, and event counting scenarios in industries such as petrochemicals, power, metallurgy, and water treatment.

This module, with its high isolation, high-speed acquisition, flexible configuration, and high reliability, is the core component for achieving precise acquisition and processing of pulse signals in industrial DCS systems. It can effectively improve the measurement accuracy and system stability of key parameters such as flow rate and speed.
