P0916CA压缩端接组件

1.产 品 资 料 介 绍：

P0916CA 压缩端接组件（Foxboro I/A Series）

1. 属于 Foxboro I/A Series DCS 系统，为FBM217 隔离监视器专用压缩式现场端接组件（CTA）。
2. 专为32 通道组隔离离散输入 / 电压监测场景设计，匹配 FBM217 模块的 15–30VDC 电压监测与干接点输入。
3. 采用无螺丝压缩式接线，导线插入即锁，连接牢固、抗振动、防松动，无需工具快速接线。
4. 提供32 个输入端子，通道与模块一一对应，支持多线径导线（AWG/mm²），适配现场仪表与传感器布线。
5. 内置信号调理与电路保护，含滤波、浪涌抑制，无需额外外部端子设备，简化系统配置。
6. DIN 导轨标准安装，与 FBM217 模块直连，布线规整、部署便捷，支持高密度机柜布局。
7. 工业级宽温设计，工作温度 **-40℃~+85℃**，防护等级 IP20，满足 G3 严酷工业环境。
8. 重量约470g，模块化结构，支持在线更换，维护不影响系统运行。
9. 无缝集成 I/A Series 控制系统，保障现场信号稳定传输与模块可靠通信。
10. 适用于石油化工、电力、冶金、水处理等行业的 FBM217 模块配套，实现开关量、电压信号的可靠端接与信号调理。

P0916CA压缩端接组件 英文资料：

P0916CA Compression Terminal Component (Foxboro I/A Series)

Belonging to the Foxboro I/A Series DCS system, it is a compressed field termination assembly (CTA) specifically designed for FBM217 isolation monitors.

Specially designed for 32 channel group isolated discrete input/voltage monitoring scenarios, matched with FBM217 module's 15-30VDC voltage monitoring and dry contact input.

Adopting screw free compression type wiring, the wire is locked upon insertion, and the connection is firm, anti vibration, and anti loosening, without the need for tools for quick wiring.

Provide 32 input terminals, with channels corresponding to modules one by one, supporting multi wire diameter wires (AWG/mm ²), suitable for field instrument and sensor wiring.

Built in signal conditioning and circuit protection, including filtering and surge suppression, without the need for additional external terminal devices, simplifying system configuration.

DIN rail standard installation, directly connected to FBM217 module, with neat wiring and easy deployment, supporting high-density cabinet layout.

Industrial grade wide temperature design, working temperature range of * * -40 ℃~+85 ℃ * *, protection level of IP20, meeting the harsh industrial environment of G3.

Weight approximately 470g, modular structure, supports online replacement, and maintenance does not affect system operation.

Seamless integration of I/A Series control system ensures stable signal transmission and reliable module communication on site.

The FBM217 module is suitable for industries such as petrochemicals, power, metallurgy, and water treatment to achieve reliable termination and signal conditioning of switch values and voltage signals.

This component has the core advantages of compressed quick connect, high reliability, maintenance free, and integrated protection. It is a key supporting component for FBM217 module to achieve stable signal connection in industrial sites, greatly improving system wiring efficiency and operational reliability.

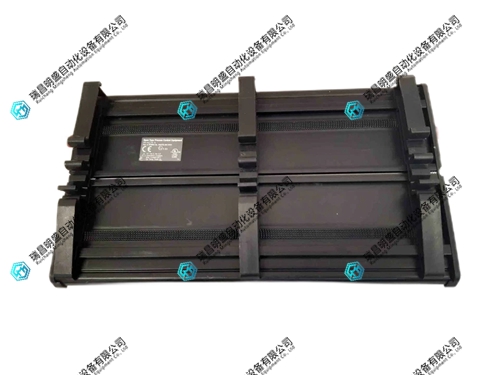

P0916CA压缩端接组件 产品展示

产品视频
