P0922VU FBM215隔离通信输出模块

1.产 品 资 料 介 绍：

P0922VU FBM215 隔离通信输出模块（HART 输出）

1. 属于 Foxboro I/A Series / Evo DCS 系统，为8 通道通道隔离 HART 通信模拟输出模块（型号 P0922VU）。
2. 每通道可输出标准 4–20mA 模拟信号，或叠加 HART FSK 数字信号的 4–20mA，兼容普通仪表与 HART 智能执行机构。
3. 每通道内置独立FSK 调制解调器，实现与 HART 设备双向数字通信，单通道每秒可收发 2 条数字消息。
4. 采用8 通道全隔离设计，通道间、通道与系统 / 地完全电气隔离，抗干扰、防地环流、保障信号独立。
5. 支持HART 通用 / 常用 / 设备专用命令，可远程组态、校准、读取诊断与多变量数据。
6. 每通道提供隔离供电，简化二线制 / 四线制 HART 执行器布线。
7. 支持冗余 2Mbps 现场总线通信，A/B 双路冗余，一路故障自动切换，保障控制稳定。
8. 配备LED 状态指示灯，直观显示模块运行、通信与通道输出状态，便于快速诊断。
9. 支持在线热插拔，维护无需断电拆线，不影响系统连续运行。
10. 工业级宽温设计，工作温度 **-40℃~+85℃**，满足 G3 严酷工业环境标准。
11. 模块化结构，DIN 导轨安装，搭配专用端子组件，部署与接线便捷。
12. 无缝集成 Foxboro DCS，支持 HART 设备管理、在线诊断与状态监控。
13. 适用于石油化工、电力、冶金、水处理等行业的 HART 智能阀门定位器、执行机构控制与过程调节场景。

P0922VU FBM215隔离通信输出模块 英文资料：

P0922VU FBM215 isolated communication output module (HART output)

Belonging to Foxboro I/A Series/Evo DCS system, it is an 8-channel isolated HART communication analog output module (model P0922VU).

Each channel can output standard 4-20mA analog signals or 4-20mA combined with HART FSK digital signals, compatible with ordinary instruments and HART intelligent actuators.

Each channel is equipped with an independent FSK modem, which enables bidirectional digital communication with HART devices. A single channel can send and receive 2 digital messages per second.

Adopting an 8-channel fully isolated design, the channels are completely electrically isolated from each other and from the system/ground, with anti-interference, anti ground circulation, and signal independence guaranteed.

Supports HART universal/common/device specific commands, allowing remote configuration, calibration, reading of diagnostic and multivariate data.

Each channel provides isolated power supply, simplifying the wiring of two-wire/four wire HART actuators.

Support redundant 2Mbps fieldbus communication, A/B dual redundancy, automatic switching in case of one fault, ensuring stable control.

Equipped with LED status indicator lights, it intuitively displays the operation, communication, and channel output status of the module, facilitating quick diagnosis.

Support online hot plugging, maintenance does not require power outage or disconnection, and does not affect the continuous operation of the system.

Industrial grade wide temperature design, working temperature range of * * -40 ℃~+85 ℃ * *, meeting the strict industrial environment standards of G3.

Modular structure, DIN rail installation, equipped with dedicated terminal components, easy deployment and wiring.

Seamless integration with Foxboro DCS, supporting HART device management, online diagnosis, and status monitoring.

HART intelligent valve positioner, actuator control, and process regulation scenarios suitable for industries such as petrochemicals, power, metallurgy, and water treatment.

This module has the core advantages of HART bidirectional communication, fully isolated channels, high reliability, and easy maintenance. It is a key component for industrial DCS systems to connect to HART intelligent execution devices and achieve the integration of analog control and digital management.

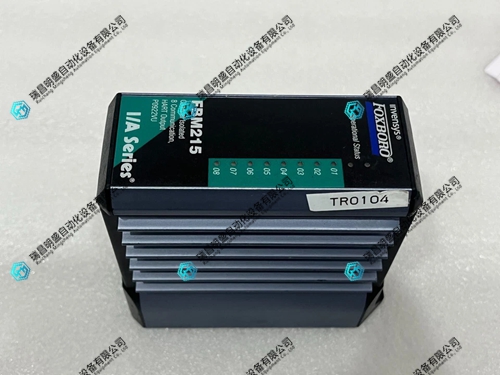

P0922VU FBM215隔离通信输出模块 产品展示
