1.产 品 资 料 介 绍：
IC697MDL241 独立逻辑输入模块
一、核心硬件与电气规格
- 通道与电压：32 路独立输入，额定 24VDC，电压范围 18–30VDC，兼容干接点、湿接点、接近开关、按钮、限位开关等。
- 隔离结构：4 组独立隔离（每组 8 路），现场侧与逻辑侧 1500VAC 光电隔离，阻断地环流与 EMI 干扰。
- 输入特性：单通道输入电流约 7mA，支持正逻辑（高电平有效）与负逻辑（低电平有效），适配不同传感器输出。
- 响应与滤波：典型响应时间 8ms，内置硬件滤波，抑制触点抖动与瞬时噪声，信号稳定可靠。
- 状态指示：32 个独立 LED，实时显示每通道 ON/OFF 状态，现场调试与故障排查直观。
- 安装与供电：单槽位 90‑70 机架安装，背板 5V 供电，支持带电插拔（配合兼容机架），维护便捷。
- 环境适应：工业级宽温 ‑20℃～+70℃，防护等级 IP20，适应车间粉尘、振动等恶劣工况。
二、配置与兼容性
- 软件配置：全参数通过 Logicmaster、VersaPro 等编程软件设置，无跳线 / 拨码，I/O 地址可自由分配。
- 系统兼容：完美适配 90‑70 系列全系列 CPU（如 IC697CSE784、IC697CSE925），与同系列 I/O 模块无缝协同。
- 分组优势：4 组隔离设计，可接入不同电位、不同回路的信号，提升系统布线灵活性与安全性。
三、典型应用场景
- 自动化生产线、输送线的 24VDC 传感器 / 开关信号采集
- 机床、包装设备、纺织机械的位置 / 状态监测与安全联锁
- 化工、冶金、电力行业的直流控制回路信号采集
- 高密度 I/O 系统、分布式控制站的信号集中接入
四、核心优势
- 高密度 + 强隔离：32 路单槽 + 分组 1500VAC 隔离，兼顾通道密度与抗干扰能力。
- 正 / 负逻辑兼容：适配各类 24VDC 传感器与开关，无需额外转换电路。
- 易维护：LED 状态灯 + 带电插拔，安装调试与故障定位效率高。
- 稳定可靠：工业级设计 + 硬件滤波，长期连续运行无故障。
IC697MDL241独立输入模块 英文资料：
IC697MDL241 independent logic input module
IC697MDL241 is a 32 channel 24VDC group isolated digital input module from GE Fanuc 90-70 series, designed specifically for industrial field DC switch signal acquisition. It supports positive/negative logic compatibility, strong group isolation, and is suitable for high-density signal access and complex electromagnetic environments.
1、 Core hardware and electrical specifications
Channel and Voltage: 32 independent inputs, rated 24VDC, voltage range 18-30VDC, compatible with dry contacts, wet contacts, proximity switches, buttons, limit switches, etc.
Isolation structure: 4 independent isolation groups (8 channels per group), 1500VAC optoelectronic isolation between the on-site side and the logic side, blocking ground current and EMI interference.
Input characteristics: single channel input current is about 7mA, supporting positive logic (valid at high level) and negative logic (valid at low level), and adapting to different sensor outputs.
Response and filtering: Typical response time of 8ms, built-in hardware filtering to suppress contact jitter and instantaneous noise, stable and reliable signal.
Status indication: 32 independent LEDs display the real-time ON/OFF status of each channel, providing intuitive on-site debugging and troubleshooting.
Installation and Power Supply: Single slot 90-70 rack installation, 5V power supply for backplane, support for live plugging (compatible with rack), easy maintenance.
Environmental adaptation: Industrial grade wide temperature range of -20 ℃ to+70 ℃, protection level of IP20, suitable for harsh working conditions such as workshop dust and vibration.
2、 Configuration and compatibility
Software configuration: All parameters are set through programming software such as Logicmaster and VersaPro, with no jumpers/dip codes, and I/O addresses can be freely assigned.
System compatibility: Perfectly compatible with the full range of 90-70 series CPUs (such as IC697CSE784, IC697CSE925), seamlessly working with I/O modules of the same series.
Grouping advantage: 4-group isolation design, which can connect signals of different potentials and circuits, enhancing the flexibility and safety of system wiring.
3、 Typical application scenarios
24VDC sensor/switch signal acquisition for automated production lines and conveyor lines
Position/status monitoring and safety interlocking of machine tools, packaging equipment, and textile machinery
DC control circuit signal acquisition in the chemical, metallurgical, and power industries
Centralized signal access for high-density I/O systems and distributed control stations
4、 Core advantages
High density+strong isolation: 32 channel single slot+grouped 1500VAC isolation, balancing channel density and anti-interference ability.
Positive/negative logic compatibility: Suitable for various 24VDC sensors and switches without the need for additional conversion circuits.
Easy to maintain: LED status light+live plug and unplug, high efficiency in installation, debugging, and fault location.
Stable and reliable: Industrial grade design+hardware filtering, long-term continuous operation without faults.

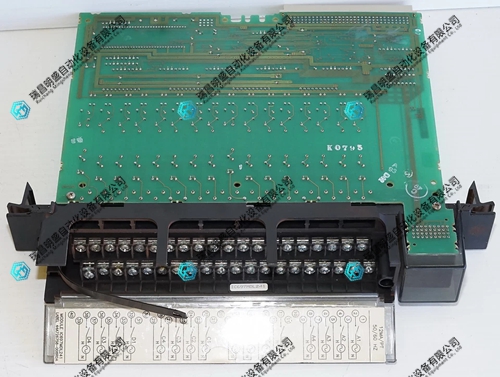

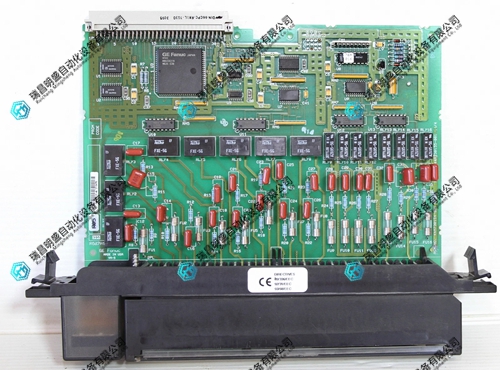

IC697MDL241独立输入模块 产品展示
