1.产 品 资 料 介 绍：

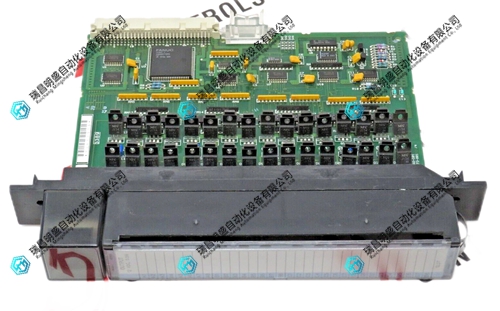

IC697MDL752 离散输出模块
一、核心硬件与电气规格
- 通道与逻辑：32 路输出，分为 4 组 ×8 路；正逻辑（高电平有效），额定 12VDC，工作范围 10–15VDC。
- 电流能力：单通道持续 0.5A，每组最大 2A；支持 10A/20ms 浪涌电流，适配容性 / 感性负载冷启动。
- 响应速度：导通 / 关断最大 1ms，适合高频脉冲与快速顺序控制。
- 电气隔离：现场侧与逻辑侧 1500VAC 隔离，分组隔离设计阻断地环流，抗 EMI/RFI 干扰。
- 状态指示：32 个独立 LED，实时显示每通道逻辑侧 ON/OFF 状态，现场调试与故障排查直观。
- 安装与供电：单槽位 90‑70 机架安装，机械键控防误插；背板 5V 供电，电流约 0.25A；支持可拆卸端子板，适配 AWG 22–14 线缆。
- 环境适应：工业级宽温 ‑20℃～+70℃，防护等级 IP20，适应车间粉尘、振动等恶劣工况。
二、配置与兼容性
- 软件配置：全参数通过 Logicmaster、VersaPro 等编程软件完成，无跳线 / 拨码开关，I/O 地址可自由分配，支持以太网 TCP/IP 或 SNP 端口配置。
- 系统兼容：完美适配 90‑70 系列全系列 CPU（如 IC697CSE784、IC697CSE925），与同系列 I/O 模块无缝协同。
- 保护特性：内置过载与短路保护，配合分组限流设计，避免单通道故障影响整组运行。
三、典型应用场景
- 自动化生产线的指示灯、蜂鸣器、小型继电器驱动
- 包装、纺织机械的高频电磁阀、气动阀岛控制
- 试验台、检测设备的快速开关信号输出与脉冲计数
- 高密度 DC 负载的集中控制与状态反馈
四、核心优势
- 高密度高效能：单槽 32 路，1ms 高速响应，兼顾通道密度与控制速度。
- 分组隔离可靠：4 组独立隔离，1500VAC 电气隔离，复杂电磁环境下信号稳定。
- 易维护易集成：LED 状态灯 + 可拆卸端子板，安装调试与维护效率高；无跳线设计简化系统集成。
- 负载适配性强：支持浪涌电流，适配容性 / 感性负载，无需额外缓冲电路。
IC697MDL752离散输出模块 英文资料：
IC697MDL752 Discrete Output Module
IC697MDL752 is a 32 channel 12VDC positive logic discrete output module from GE Fanuc 90-70 series. It adopts group isolation and high-speed transistor output design, with a single slot for high-density DC low-power load driving. It is suitable for high-frequency switches, indicator lights, small solenoid valves and other scenarios, balancing response speed and anti-interference ability.
1、 Core hardware and electrical specifications
Channel and Logic: 32 outputs, divided into 4 groups x 8 channels; Positive logic (high level effective), rated 12VDC, working range 10-15VDC.
Current capability: Single channel continuous 0.5A, maximum 2A per group; supports 10A/20ms surge current, suitable for cold start of capacitive/inductive loads.
Response speed: maximum on/off time of 1ms, suitable for high-frequency pulse and fast sequential control.
Electrical isolation: 1500VAC isolation between the on-site side and the logic side, with group isolation design to block ground current and resist EMI/RFI interference.
Status indication: 32 independent LEDs display the real-time ON/OFF status of each channel's logic side, providing intuitive on-site debugging and troubleshooting.
Installation and power supply: Single slot 90-70 rack installation, mechanical key control to prevent accidental insertion; Backboard 5V power supply, current approximately 0.25A; supports detachable terminal boards, compatible with AWG 22-14 cables.
Environmental adaptation: Industrial grade wide temperature range of -20 ℃ to+70 ℃, protection level of IP20, suitable for harsh working conditions such as workshop dust and vibration.
2、 Configuration and compatibility
Software configuration: All parameters are completed through programming software such as Logicmaster and VersaPro, without jumper/dip switch, and I/O addresses can be freely assigned. It supports Ethernet TCP/IP or SNP port configuration.
System compatibility: Perfectly compatible with the full range of 90-70 series CPUs (such as IC697CSE784, IC697CSE925), seamlessly working with I/O modules of the same series.
Protection features: Built in overload and short circuit protection, combined with grouped current limiting design, to avoid single channel faults affecting the overall operation of the group.
3、 Typical application scenarios
Indicator lights, buzzers, and small relay drivers for automated production lines
High frequency solenoid valves and pneumatic valve island control for packaging and textile machinery
Fast switch signal output and pulse counting for test benches and detection equipment
Centralized Control and State Feedback of High Density DC Load
4、 Core advantages
High density and high efficiency: single slot 32 channels, 1ms high-speed response, balancing channel density and control speed.
Reliable group isolation: 4 independent groups isolated, 1500VAC electrical isolation, stable signal in complex electromagnetic environments.
Easy to maintain and integrate: LED status light+detachable terminal board, high installation, debugging, and maintenance efficiency; No jumper design simplifies system integration.
Strong load adaptability: supports surge current, adapts to capacitive/inductive loads, and does not require additional buffering circuits.
