1.产 品 资 料 介 绍：
- 产品类型：PROFIBUS-DP 从站通信模块（隶属于三菱 MELSEC A 系列 PLC 模块家族）
- 品牌归属：三菱电机（Mitsubishi Electric）
- 产品状态：已停产（OEM 停产后仍可通过第三方渠道采购，部分供应商提供测试合格的二手产品及质保服务）
- 接口标准：符合 EIA-RS485 电气规范，采用屏蔽双绞线（A 型）作为传输媒介
- 网络拓扑：总线型（搭配增幅器可扩展为树型）
- 传输协议：支持 PROFIBUS-DP 协议，数据编码方式为 NRZ（不归零码）
- 传输速度与距离：
- 9.6/19.2/93.75kbps 时，最大传输距离 1200m（3 台增幅器扩展至 4800m）
- 187.5kbps 时，最大传输距离 1000m（3 台增幅器扩展至 4000m）
- 500kbps 时，最大传输距离 400m（3 台增幅器扩展至 1600m）
- 1.5Mbps 时，最大传输距离 200m（3 台增幅器扩展至 800m）
- 3/6/12Mbps 时，最大传输距离 100m（3 台增幅器扩展至 400m）
- 站点配置：支持 0-125 号站地址设定，每段最多连接 32 个模块，单个主站可管理 60 个从站单元
- 数据传输能力：I/O 总传输容量 192 字节，支持开关量、模拟量及智能设备数据交互
- 供电要求：DC5V 供电，内耗电量 0.36A（需搭配 PLC 系统电源使用）
- I/O 特性：占用 32 点智能模块 I/O 分配，输出形式为晶体管漏型，DC24V 输出电压，单点点电流 0.1A，单个公共端最大电流 2A
- 响应性能：输出响应时间 2ms，基本命令处理速度 4.4～5.6μs
- 机械尺寸：130mm（高）×34.5mm（宽）×93.6mm（深），重量 0.18kg
- 连接方式：40 针连接器接口，安装采用模块式设计，便于维护与扩展
A1SJ71PB93D伺服驱动器 英文资料：
1、 Core positioning and brand attributes
Product type: PROFIBUS-DP slave communication module (belonging to Mitsubishi MELSEC A-series PLC module family)
Brand affiliation: Mitsubishi Electric
Product status: discontinued (OEM can still be purchased through third-party channels after discontinuation, some suppliers provide tested and qualified second-hand products and warranty services)
2、 Key technical parameters
1. Communication performance
Interface standard: Compliant with EIA-RS485 electrical specifications, using shielded twisted pair (Type A) as the transmission medium
Network topology: bus type (expandable to tree type with amplifier)
Transmission protocol: Supports PROFIBUS-DP protocol, data encoding method is NRZ (Non Return to Zero)
Transmission speed and distance:
At 9.6/19.2/93.75kbps, the maximum transmission distance is 1200m (extended to 4800m with 3 amplifiers)
At 187.5kbps, the maximum transmission distance is 1000m (extended to 4000m with 3 amplifiers)
At 500kbps, the maximum transmission distance is 400m (extended to 1600m with 3 amplifiers)
At 1.5Mbps, the maximum transmission distance is 200m (extended to 800m with 3 amplifiers)
At 3/6/12Mbps, the maximum transmission distance is 100m (extended to 400m with 3 amplifiers)
Site configuration: Supports address settings for stations 0-125, with a maximum of 32 modules connected per segment. A single master station can manage 60 slave units
Data transmission capability: The total I/O transmission capacity is 192 bytes, supporting switch quantity, analog quantity, and intelligent device data interaction
2. Electrical and physical specifications
Power requirement: DC5V power supply, internal power consumption 0.36A (needs to be used in conjunction with PLC system power supply)
I/O characteristics: occupying 32 points of intelligent module I/O allocation, output form is transistor leakage type, DC24V output voltage, single point current of 0.1A, maximum current of 2A for a single common terminal
Response performance: Output response time of 2ms, basic command processing speed of 4.4-5.6 μ s
Mechanical dimensions: 130mm (height) x 34.5mm (width) x 93.6mm (depth), weight 0.18kg
Connection method: 40 pin connector interface, modular design for installation, easy to maintain and expand

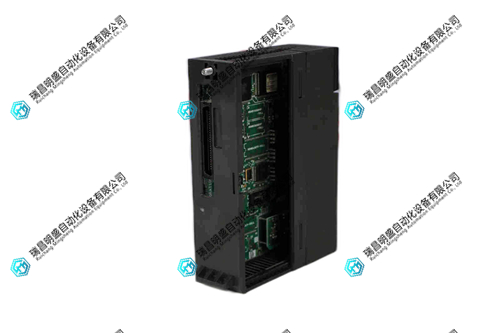

A1SJ71PB93D伺服驱动器 产品展示
