109-0852-3A09- 06接口板模块

109-0852-3A09- 06接口板模块

1.产 品 资 料 介 绍：

109-0852-3A09-06接口板模块产品特点

1. 集成多类型接口，涵盖RS232、RS485及数字量I/O接口，适配工业现场多元信号交互需求。

2. 采用高性能信号隔离技术，隔离电压高达3000Vdc，有效阻断地环路干扰，保障信号传输纯净。

3. 支持4-20mA标准模拟量信号传输，信号转换精度高，误差控制在小范围，适配各类工业变送器。

4. 兼容Modbus-RTU通讯协议，通过RS485接口实现与上位机的远程数据交互及参数配置。

5. 具备信号分配功能，可将一路输入信号隔离转换为多路输出，满足本地显示与远程控制双重需求。

6. 支持全透明通信模式，无需复杂调试，即插即用，大幅降低现场部署难度。

7. 宽电压供电设计，适配10V-30V DC供电环境，抗电压波动能力强，应用场景灵活。

8. 内置浪涌保护、过压保护、过流保护机制，全面防护模块及后端设备安全。

9. 工业级宽温适应能力，支持-40℃至+85℃工作温度，耐受潮湿、振动等恶劣工业工况。

10. 配备电源、运行、通讯多色LED指示灯，直观反馈模块工作状态，便于现场快速排查故障。

11. 采用标准35mm DIN导轨安装方式，模块化结构设计，安装拆卸便捷，节省控制柜空间。

12. 插拔式端子接线设计，接线牢固且维护便捷，降低后期运维人力成本。

13. 选用工业级高品质元器件，机械稳定性强，使用寿命长，保障系统长期可靠运行。

14. 具备反接保护功能，有效防止电源正负极接反导致的模块损坏，提升使用安全性。

15. 广泛应用于工业自动化生产线、智能测控系统、远程数据采集等领域，实现设备间高效信号互联。

109-0852-3A09- 06接口板模块 英文资料：

109-0852-3A09-06 Interface Board Module Product Features

1. Integrate multiple types of interfaces, including RS232, RS485, and digital I/O interfaces, to meet the diverse signal interaction needs of industrial sites.

2. Adopting high-performance signal isolation technology, the isolation voltage can reach up to 3000Vdc, effectively blocking ground loop interference and ensuring pure signal transmission.

3. Supports 4-20mA standard analog signal transmission, with high signal conversion accuracy and error control within a small range, suitable for various industrial transmitters.

4. Compatible with Modbus RTU communication protocol, remote data exchange and parameter configuration with the upper computer are achieved through RS485 interface.

5. Equipped with signal distribution function, it can isolate and convert one input signal into multiple outputs, meeting the dual requirements of local display and remote control.

6. Support fully transparent communication mode, no need for complex debugging, plug and play, greatly reducing the difficulty of on-site deployment.

7. Wide voltage power supply design, suitable for 10V-30V DC power supply environment, strong resistance to voltage fluctuations, and flexible application scenarios.

8. Built in surge protection, overvoltage protection, and overcurrent protection mechanisms provide comprehensive protection for module and backend equipment safety.

9. Industrial grade wide temperature adaptability, supporting working temperatures from -40 ℃ to+85 ℃, and withstanding harsh industrial conditions such as humidity and vibration.

10. Equipped with multi-color LED indicator lights for power supply, operation, and communication, providing intuitive feedback on the working status of the module, facilitating quick troubleshooting on site.

11. Adopting standard 35mm DIN rail installation method, modular structure design, easy installation and disassembly, saving control cabinet space.

12. Plug in terminal wiring design, firm wiring and easy maintenance, reducing later maintenance labor costs.

13. ｓｅｌｅｃｔ industrial grade high-quality components with strong mechanical stability and long service life to ensure long-term reliable operation of the system.

14. Equipped with reverse polarity protection function, effectively preventing module damage caused by reverse polarity of the power supply, and improving usage safety.

Widely used in industrial automation production lines, intelligent measurement and control systems, remote data acquisition, and other fields to achieve efficient signal interconnection between devices.

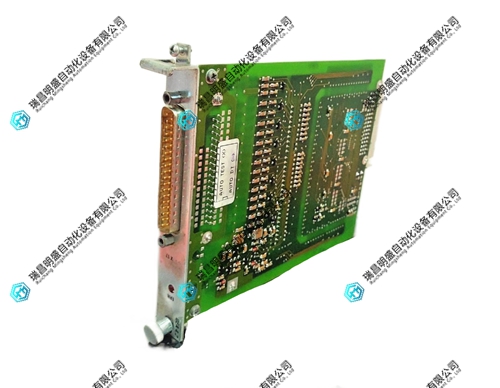

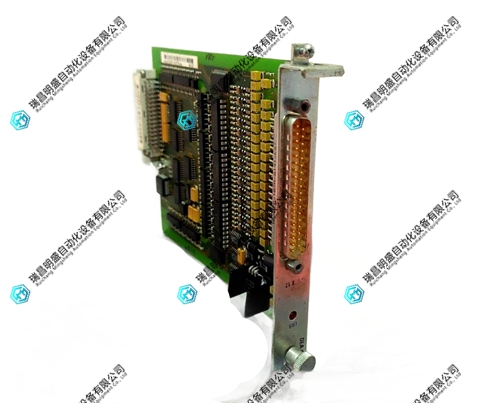

109-0852-3A09- 06接口板模块 产品展示

产品视频
