AMAT Applied Materials 03-81830-00印刷电路板
1.产 品 资 料 介 绍：
- 高精度信号处理：接收等离子弧电流板（如 0100-90642）、检测器（如 0190-09445）的微弱信号，经滤波、放大后传输至控制器，保障工艺数据精准度。
- 执行器精准驱动：输出控制信号，驱动气缸（3020-00121）、射频匹配组件（0041-78374）等执行元件，实现微米级动作控制或射频功率调节。
- 多子系统联动：连接射频互锁模块（0100-35565）与安全控制系统，传递联锁信号，确保危险场景下快速切断电源，保障设备与人员安全。
- 安装：适配 0100-02839 机架组件的标准卡槽，金手指需用无尘布蘸异丙醇清洁（避免氧化），接线端子紧固扭矩 1.2-1.8N・m（防止接触不良）。
- 维护：每 6 个月检查焊点无虚焊、基板无变形开裂；每年用示波器校准信号传输精度；故障优先排查接口接触状态或板载滤波电容（易老化部件）。
- 采购：优先选原厂供应商（如长欣自动化、赛米卡尔电子），到货需验证基板材质报告、阻抗测试报告及尺寸公差（确保适配机架安装）。
AMAT Applied Materials 03-81830-00印刷电路板 英文资料：
1、 Core positioning
AMAT 03-81830-00 is the "signal processing and driving carrier" of semiconductor equipment electronic control systems, responsible for sensor signal acquisition, actuator command output, and subsystem collaborative control functions. It adopts high-precision wiring and anti-interference design, adapts to Class 100 clean environment and high-frequency signal transmission requirements, and ensures stable equipment process parameters.
2、 Key parameters
Category
Specifications
Substrate material
Glass fiber reinforced epoxy resin (FR-4), Tg ≥ 160 ℃ (better high temperature resistance)
Number of wiring layers
8 layers (high-density wiring), line width/spacing ≥ 2.5mil/2.5mil, impedance control ± 8% (higher accuracy)
Interface characteristics
Integrated with 3 RS-485 channels, 6 digital I/O channels, 3 analog I/O channels, and 1 Ethernet channel (supporting data exchange)
Environmental adaptation
-15-65 ℃ (wider temperature range), humidity<80%, anti EMI interference (EN 61000-6-3 standard)
Compatibility
Compatible with AMAT 0100-02839 rack components, 0225-01622 controller, 0100-00985 intelligent interface board
3、 Core applications
High precision signal processing: Receive weak signals from plasma arc current plates (such as 0100-90642) and detectors (such as 0190-09445), filter and amplify them, and transmit them to the controller to ensure the accuracy of process data.
Precise actuator drive: Output control signals to drive actuators such as cylinders (3020-00121) and RF matching components (0041-78374), achieving micrometer level action control or RF power regulation.
Multi subsystem linkage: Connect the RF interlock module (0100-35565) with the safety control system, transmit interlock signals, ensure rapid power cut-off in hazardous scenarios, and safeguard equipment and personnel safety.
4、 Key points of operation and maintenance
Installation: Suitable for the standard card slot of the 0100-02839 rack component. The gold fingers should be cleaned with a dust-free cloth dipped in isopropanol (to avoid oxidation), and the tightening torque of the wiring terminals should be 1.2-1.8N · m (to prevent poor contact).
Maintenance: Check the solder joints for virtual soldering and the substrate for deformation and cracking every 6 months; Calibrate the signal transmission accuracy with an oscilloscope every year; Prioritize troubleshooting interface contact status or onboard filtering capacitors (components prone to aging).
Procurement: Prioritize the selection of original suppliers (such as Changxin Automation, Semicar Electronics), and upon arrival, verify the substrate material report, impedance test report, and dimensional tolerances (to ensure compatibility with rack installation).

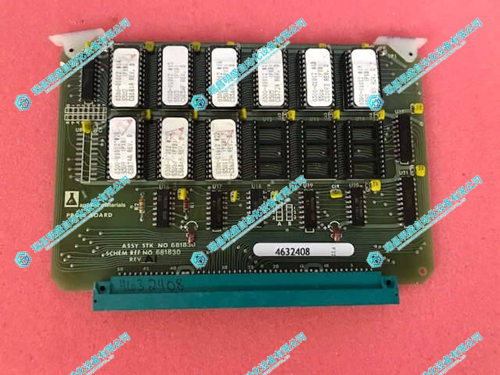

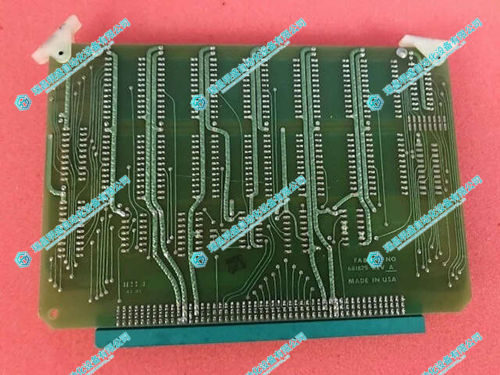

AMAT Applied Materials 03-81830-00印刷电路板 产品展示
产品视频
