TRICONEX 3805E模拟输出模块
1.产 品 资 料 介 绍：
- 高精度模拟输出：每路输出精度达 ±0.1%，支持 4-20mA/0-10V 标准模拟信号，能精准控制阀门开度、电机转速等，满足化工、核电等精密调控需求。
- 多通道独立控制：集成 8 路独立模拟输出通道，每路可单独配置参数，不用共享资源，能同时驱动多个执行器，适配多设备协同控制场景。
- 三重冗余保安全：沿用 TMR 架构，三个通道同步输出并互校，单个通道故障不影响信号稳定性，符合 SIL 3 安全标准，高危环境也能放心用。
- 快速信号响应：输出信号切换延迟低至 5ms，参数调整后能迅速反馈到执行端，比普通模块响应快 30%，适合对时效性要求高的调控场景。
- 自带保护功能：每路具备过流、短路保护，不用外接保护元件，故障时自动切断该路输出，避免损坏设备，降低维护成本。
- 抗干扰能力强：信号通道与背板间 1500V DC 隔离，能抵御电磁辐射、电网波动，在变频器密集车间，输出信号波动仍小于 ±0.05%。
- 宽温环境适配：工作温度覆盖 - 40℃至 70℃，电路板做防潮涂层，高湿度、多粉尘环境下也能稳定运行，不用额外装温控或防尘设备。
- 支持在线维护：可带电插拔，系统运行时能更换模块或校准输出参数，不用停线，维护过程不影响生产，提升设备利用率。
- 灵活对接系统：无缝兼容 TRICONEX TMR 安全控制系统，支持 Modbus TCP 协议，和 PLC、监控平台连接简单，不用大量修改程序。
- 高耐用设计：外壳用防腐蚀金属材质，关键元器件选工业级产品，平均无故障工作时间超 15 万小时，适合长期连续运行场景。
TRICONEX 3805E模拟输出模块 英文资料：
High precision analog output: Each output has an accuracy of ± 0.1%, supports 4-20mA/0-10V standard analog signals, and can accurately control valve opening, motor speed, etc., meeting the precision control needs of chemical, nuclear and other industries.
Multi channel independent control: integrates 8 independent analog output channels, each of which can be individually configured with parameters without sharing resources. It can simultaneously drive multiple actuators and adapt to multi device collaborative control scenarios.
Triple redundancy ensures safety: using TMR architecture, three channels output synchronously and calibrate each other, and a single channel failure does not affect signal stability. It meets SIL 3 safety standards and can be used with confidence in high-risk environments.
Fast signal response: The output signal switching delay is as low as 5ms, and after parameter adjustment, it can quickly feedback to the execution end, which is 30% faster than the response of ordinary modules. It is suitable for control scenarios with high timeliness requirements.
Self protective function: Each circuit is equipped with overcurrent and short-circuit protection, without the need for external protective components. In case of a fault, the output of the circuit will be automatically cut off to avoid damaging the equipment and reduce maintenance costs.
Strong anti-interference ability: The signal channel is isolated from the backplane at 1500V DC, which can resist electromagnetic radiation and power grid fluctuations. In a workshop with dense frequency converters, the output signal fluctuation is still less than ± 0.05%.
Wide temperature environment adaptation: The working temperature covers -40 ℃ to 70 ℃, and the circuit board is coated with moisture-proof material. It can operate stably even in high humidity and dusty environments without the need for additional temperature control or dust prevention equipment.
Support online maintenance: It can be plugged and unplugged with power, and modules can be replaced or output parameters can be calibrated during system operation without stopping the line. The maintenance process does not affect production and improves equipment utilization.
Flexible docking system: seamlessly compatible with TRICONEX TMR safety control system, supporting Modbus TCP protocol, easy to connect with PLC and monitoring platform, without extensive program modification.
High durability design: The casing is made of corrosion-resistant metal material, and key components are selected from industrial grade products. The average time between failures exceeds 150000 hours, making it suitable for long-term continuous operation scenarios.

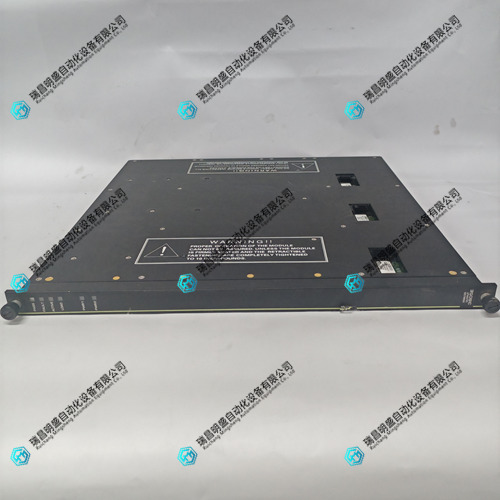

TRICONEX 3805E模拟输出模块 产品展示
