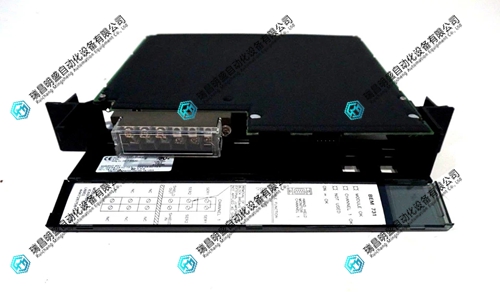

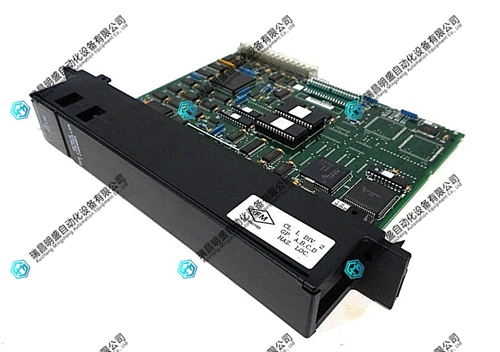

IC697BEM761总线控制器卡

1.产 品 资 料 介 绍：

IC697BEM761 I/O 总线接口控制器（15 条要点）

1. 专为 GE Fanuc 90-70 系列 PLC 设计，是IC600 与 IC697 I/O 系统的智能桥接模块。
2. 核心功能：实现IC600 CPU 总线与IC697 I/O 机架的高速数据交互，兼容混合 I/O 架构。
3. 单模块占用 90-70 背板1 个标准插槽，适配标准与 VME Integrator 背板。
4. 采用双 37 针连接器，直接对接 IC600 I/O 总线，无需额外转接部件。
5. 单机架最大支持256 点 I/O（9 槽机架），5 槽机架为128 点，灵活适配不同规模。
6. 系统级扩展：最多可挂接8 个 IC697 机架，总 I/O 点达2000 点；互补寻址可扩至4000 点。
7. 智能数据管理：自动读写机架内所有 I/O 模块数据，周期同步上传至 IC600 CPU。
8. 运行需 CPU 分配最小 8K 寄存器空间，保障数据缓存与实时交换。
9. 支持混合 I/O 共存：同一 I/O 链可同时接入 IC600、IC697、IC660 三类 I/O 模块。
10. 背板 + 5V 供电，电流需求 1.3A，无需额外现场电源，部署简洁。
11. 内置硬件级电气隔离，总线与 I/O 侧隔离，抗工业电磁干扰能力强。
12. 全软件组态，通过 Logicmaster 90-70 完成机架地址与 I/O 映射配置。
13. 自带 LED 状态指示，实时显示运行、通信、故障状态，诊断直观。
14. 支持热插拔，在线维护更换不中断系统运行，提升可用性。
15. 工业级宽温（-40℃~+85℃）、抗振设计，适配冶金、电力、化工等严苛场景。

IC697BEM761总线控制器卡 英文资料：

IC697BEM761 I/O bus interface controller (15 key points)

Specially designed for GE Fanuc 90-70 series PLC, it is an intelligent bridging module for IC600 and IC697 I/O systems.

Core function: Implement high-speed data exchange between IC600 CPU bus and IC697 I/O rack, compatible with hybrid I/O architecture.

A single module occupies one standard slot on the 90-70 backplane, compatible with both standard and VME integrator backplanes.

Using dual 37 pin connectors, it can directly connect to the IC600 I/O bus without the need for additional adapter components.

A single rack can support up to 256 I/O points (9-slot rack), while a 5-slot rack can support 128 points, allowing for flexible adaptation to different scales.

System level expansion: Up to 8 IC697 racks can be mounted, with a total of 2000 I/O points; Complementary addressing can be extended to 4000 points.

Intelligent data management: Automatically read and write data from all I/O modules in the rack, and periodically synchronize and upload it to the IC600 CPU.

Running requires CPU to allocate a minimum of 8K register space to ensure data caching and real-time exchange.

Support mixed I/O coexistence: The same I/O chain can simultaneously access three types of I/O modules: IC600, IC697, and IC660.

Backboard+5V power supply, current requirement of 1.3A, no need for additional on-site power supply, simple deployment.

Built in hardware level electrical isolation, bus and I/O side isolation, strong resistance to industrial electromagnetic interference.

Full software configuration, complete rack address and I/O mapping configuration through Logicmaster 90-70.

Equipped with LED status indicator, it displays real-time operation, communication, and fault status, providing intuitive diagnosis.

Support hot plugging, online maintenance and replacement without interrupting system operation, improving availability.

Industrial grade wide temperature range (-40 ℃~+85 ℃), anti vibration design, suitable for harsh scenarios such as metallurgy, power, and chemical industry.

IC697BEM761 is a key interface for the integration of 90-70 and IC600 systems, with high-density, high reliability, and easy scalability as its core advantages. It is an ideal choice for upgrading old systems and deploying hybrid architectures.
