WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-0000 3522-1004伺服驱动器
1.产 品 资 料 介 绍：
- 高精度动力控制性能：WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-0000 3522-1004 伺服驱动器采用矢量控制技术，位置控制精度达 ±0.001mm，转速控制误差小于 0.1%，可精准驱动伺服电机完成高精密加工、自动化装配等场景的动力输出需求。
- 宽电压适配范围：支持 12V DC-24V DC 宽输入电压区间，适配不同工业设备的电源规格，同时具备电压波动补偿功能，当输入电压在 ±10% 范围内波动时，仍能保持稳定的输出功率，避免电压不稳导致的驱动故障。
- 高功率密度设计：在紧凑的机身结构内实现高功率输出，单台驱动器最大输出功率可满足中小型伺服电机的动力需求，无需额外配置功率扩展模块，节省设备安装空间，适配控制柜布局紧凑的场景。
- 多重安全保护机制：内置过流、过载、过温、短路四重保护功能，当检测到电机堵转、线路短路或驱动器温度过高（超 85℃）时，可快速切断输出回路并触发报警；同时符合 EN 61800-5-1 安全标准，保障设备与人员安全。
- 灵活的控制模式切换：支持位置控制、速度控制、转矩控制三种模式，通过专用软件或外部信号可实现模式一键切换，适配不同工业场景（如精密定位、恒速运行、恒转矩负载控制）的动力需求，提升设备通用性。
- 快速动态响应能力：伺服响应时间低至 1ms，可快速捕捉外部控制信号的变化，实时调整输出参数，适配高速生产线、机器人关节驱动等对动态响应要求严苛的场景，减少信号延迟导致的动作偏差。
WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-0000 3522-1004伺服驱动器 英文资料：
High precision power control performance: WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-0000 3522-1004 servo drive adopts vector control technology, with a position control accuracy of ± 0.001mm and a speed control error of less than 0.1%. It can accurately drive servo motors to meet the power output requirements of high-precision machining, automated assembly and other scenarios.
Wide voltage adaptation range: Supports a wide input voltage range of 12V DC-24V DC, adapts to different power specifications of industrial equipment, and has voltage fluctuation compensation function. When the input voltage fluctuates within ± 10% range, it can still maintain stable output power and avoid driving faults caused by unstable voltage.
High power density design: Achieving high power output within a compact body structure, the maximum output power of a single driver can meet the power requirements of small and medium-sized servo motors, without the need for additional power expansion modules, saving equipment installation space and adapting to compact control cabinet layouts.
Multiple safety protection mechanisms: Built in four protection functions including overcurrent, overload, overtemperature, and short circuit. When motor stalling, line short circuit, or driver temperature exceeding 85 ℃ is detected, the output circuit can be quickly cut off and an alarm can be triggered; Simultaneously comply with the EN 61800-5-1 safety standard to ensure the safety of equipment and personnel.
Flexible control mode switching: Supports three modes: position control, speed control, and torque control. One click mode switching can be achieved through dedicated software or external signals, adapting to the power requirements of different industrial scenarios (such as precision positioning, constant speed operation, and constant torque load control) and improving equipment versatility.
Fast dynamic response capability: The servo response time is as low as 1ms, which can quickly capture changes in external control signals, adjust output parameters in real time, adapt to high-speed production lines, robot joint drives and other scenarios that require strict dynamic response, and reduce action deviation caused by signal delay.

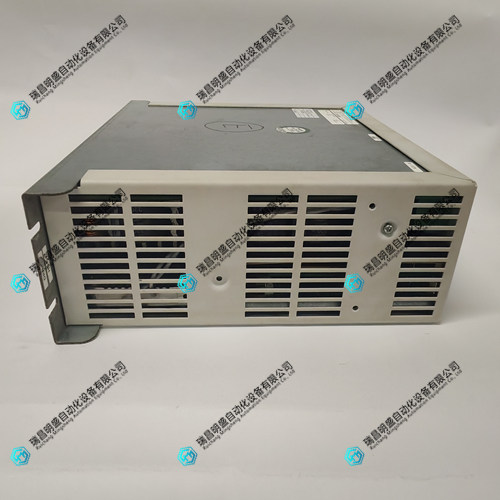

WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-0000 3522-1004伺服驱动器 产品展示
产品视频
