AMAT Applied Materials 0130-20458互锁模块

AMAT Applied Materials  0130-20458互锁模块

1.产 品 资 料 介 绍：

核心规格

工作原理

1. 信号采集：实时监测各输入通道状态。
2. 逻辑处理：依据预设互锁逻辑进行运算。
3. 输出控制：通过继电器切断或接通受控回路。
4. 通信传输：通过 RS‑485 接口将状态信息上传至 PLC 或上位机。
5. 状态指示：LED 显示运行、报警及通道状态，便于维护。

AMAT Applied Materials   0130-20458互锁模块  英文资料：

AMAT Applied Materials 0130-20458 is a compact multifunctional interlocking module used for safety logic control of semiconductor manufacturing equipment. By monitoring signals such as emergency stop, safety door, and sensors, it quickly cuts off critical power or RF power in case of abnormalities, preventing personnel injury and equipment damage.

Core specifications

Project Specification Description

Number of channels: 8 digital inputs/4 relay outputs expandable to 16 inputs/8 outputs (some versions)

Input type 24V DC dry contact/wet contact compatible supports signals such as safety doors, light curtains, emergency stop buttons, etc

Output Type Relay Isolation Output (SPDT) Maximum Switching Current 5A@240V  AC/30V DC

Interlocking logic and/or/non/delay, multi-level cascading support for complex security control scenarios

Communication interface RS-485 (Modbus RTU) optional for remote monitoring and diagnosis

Working voltage 24V DC ± 10%, power consumption about 10W

Suitable for industrial environments with working temperatures ranging from 0 ℃ to 50 ℃

Protection level IP20 dustproof, suitable for installation inside the electrical control box

Size approximately 120 × 80 × 40mm, rail or screw installation

working principle

This module adopts a microprocessor+hardware relay structure:

Signal acquisition: Real time monitoring of the status of each input channel.

Logical processing: Perform operations based on preset interlock logic.

Output control: Cut off or connect the controlled circuit through a relay.

Communication transmission: Upload status information to PLC or upper computer through RS-485 interface.

Status indication: LED displays operation, alarm, and channel status for easy maintenance.

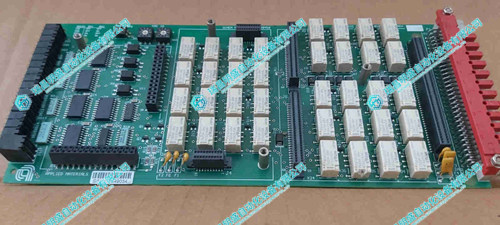

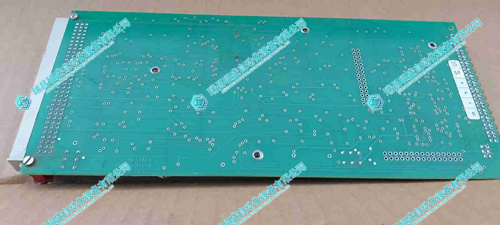

 AMAT Applied Materials   0130-20458互锁模块  产品展示
