1.产 品 资 料 介 绍：

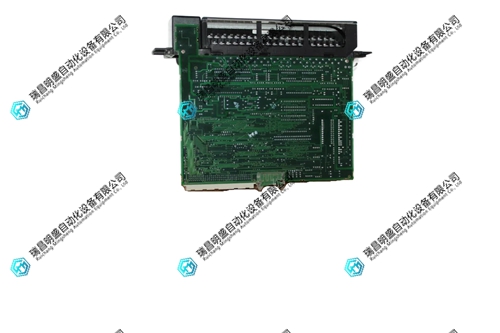

IC697ALG320 模拟输出模块 产品特点
- 4 通道独立配置：4 路独立输出通道，每通道可软件单独设为电压 / 电流模式，无需硬件跳线。
- 宽范围信号输出：电压支持0–10V/±10V；电流支持4–20mA/0–22.5mA，适配各类执行器。
- 16 位高精度 DAC：16 位分辨率（电压 312.5μV / 步、电流 0.5μA / 步），14 位单调性，转换精度高。
- 快速更新速率：全通道顺序转换最大2.0ms，满足闭环控制实时性要求。
- 通道 - 背板电气隔离：输出与背板电气隔离，带过压 / 短路保护，提升系统抗干扰与安全性。
- 软件灵活组态：全参数软件配置，支持单 / 双极性、量程缩放，调试便捷。
- 工厂校准 + EEPROM 存储：出厂校准，数据存于非易失 EEPROM，长期稳定免频繁校准。
- LED 状态诊断：模块与通道状态 LED，快速定位运行 / 故障信息。
- 工业级可靠设计：单槽安装、宽温运行、抗振动冲击，适配严苛工业环境。
- Series 90-70 原生兼容：无缝接入 GE Fanuc 90-70 PLC 系统，背板通信稳定。
IC697ALG320 Analog Output Module Product Features
4-channel independent configuration: 4-channel independent output channels, each channel can be individually set to voltage/current mode by software, without the need for hardware jumpers.
Wide range signal output: voltage support 0-10V/± 10V; current support 4-20mA/0-22.5mA, suitable for various actuators.
16 bit high-precision DAC: 16 bit resolution (voltage 312.5 μ V/step, current 0.5 μ A/step), 14 bit monotonicity, high conversion accuracy.
Fast ｕｐｄａｔｅ rate: The maximum time for full channel sequential conversion is 2.0ms, meeting the real-time requirements of closed-loop control.
Channel Backplane Electrical Isolation: The output is electrically isolated from the backplane, with overvoltage/short circuit protection to enhance system anti-interference and safety.
Flexible software configuration: Full parameter software configuration, supporting single/double polarity, range scaling, and easy debugging.
Factory calibration+EEPROM storage: Factory calibration, data stored in non-volatile EEPROM, long-term stability without frequent calibration.
LED status diagnosis: Module and channel status LED, quickly locate operation/fault information.
Industrial grade reliable design: single slot installation, wide temperature operation, anti vibration and shock resistance, suitable for harsh industrial environments.
Series 90-70 native compatibility: seamless integration with GE Fanuc 90-70 PLC system, stable backplane communication.
IC697ALG320 is the preferred module for analog output and actuator control in the GE 90-70 system, with high precision, flexible configuration, strong isolation, and high reliability as its core.
