IC697ALG440扩展器模块

1.产 品 资 料 介 绍：

IC697ALG440 电流扩展器模块 产品特点

1. 16 通道独立配置：16 路差分输入通道，每通道可独立配置为4–20mA 电流或 **±10V 电压 ** 信号，无需硬件跳线。
2. 高精度 12 位 ADC：12 位模数转换，4096 级分辨率，满足工业过程监测与控制的精度要求。
3. 灵活扩展架构：与 ALG230 基础模块组合，单系统最多可扩展至120 个模拟输入通道，适配大规模 I/O 场景。
4. 全软件组态：通过 Windows/DOS 软件完成通道类型、量程、缩放等参数配置，调试便捷。
5. 过压 / 瞬态保护：输入通道内置过压与瞬态保护，提升系统抗干扰与稳定性。
6. LED 状态诊断：模块与通道状态 LED，快速定位运行 / 故障信息，便于维护。
7. 热插拔兼容：支持在线热插拔，更换模块无需系统停机，降低生产影响。
8. 工业级可靠设计：单槽安装、宽温运行、抗振动冲击，适配化工、电力、冶金等严苛工况。
9. 原生系统兼容：无缝接入 GE Fanuc 90-70/90-30 PLC 系统，背板通信稳定可靠。
10. 非易失存储校准：出厂校准数据存储于 EEPROM，长期稳定免频繁校准。

IC697ALG440扩展器模块 英文资料：

IC697ALG440 Current Expander Module Product Features

IC697ALG440 is a 16 channel current input expansion module specifically designed for GE Fanuc 90-70/90-30 series PLCs. It must be used in conjunction with the IC697ALG230 basic converter module to form a complete analog input subsystem.

16 channel independent configuration: 16 differential input channels, each channel can be independently configured for 4-20mA current or * * ± 10V voltage * * signal, without the need for hardware jumpers.

High precision 12 bit ADC: 12 bit analog-to-digital conversion, 4096 level resolution, meeting the accuracy requirements of industrial process monitoring and control.

Flexible Expansion Architecture: Combined with ALG230 basic modules, a single system can expand up to 120 analog input channels, suitable for large-scale I/O scenarios.

Full software configuration: Channel type, range, scaling and other parameter configurations are completed through Windows/DOS software, making debugging convenient.

Overvoltage/Transient Protection: The input channel is equipped with built-in overvoltage and transient protection to enhance the system's anti-interference and stability.

LED status diagnosis: Module and channel status LEDs quickly locate operational/fault information for easy maintenance.

Hot swappable compatibility: supports online hot swappable, module replacement does not require system shutdown, reducing production impact.

Industrial grade reliable design: single slot installation, wide temperature operation, anti vibration and impact, suitable for harsh working conditions such as chemical, power, metallurgy, etc.

Native system compatibility: Seamless integration with GE Fanuc 90-70/90-30 PLC system, stable and reliable backplane communication.

Non volatile storage calibration: Factory calibration data is stored in EEPROM, ensuring long-term stability without frequent calibration.

IC697ALG440, with high-density expansion, flexible configuration, and high reliability as its core, is a key expansion module for building large-scale analog input systems for GE 90 series PLCs.

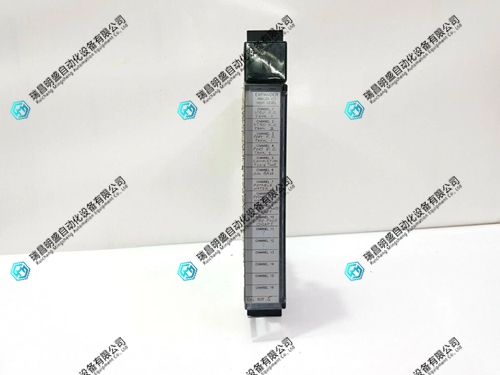

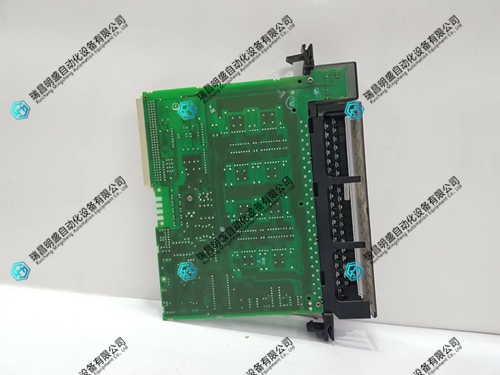

IC697ALG440扩展器模块 产品展示

产品视频
