SANYO DENKI QS1A15AA03G01T伺服放大器
1.产 品 资 料 介 绍：
- SANYO DENKI QS1A15AA03G01T 是小型伺服放大器，额定输出电流 1.5A，适配 0.1kW-0.2kW 的小功率伺服电机，主打轻量化与精准控制，适合微型机械臂、电子元件分拣设备、实验室自动化仪器等对驱动体积与精度有要求的轻载场景。
- 10-15 台该放大器可通过 RS485 通讯总线实现协同控制，驱动多轴微型执行部件，比如电子芯片测试线的探针定位机构，能同步各探针的移动轨迹与接触力度，确保探针与芯片引脚精准对接，测试合格率提升至 99.5% 以上。
- 适配单相 100V-120V 工业标准电源，输入电压波动允许范围 ±10%（90V-132V），可兼容小型车间、实验室等低压供电环境，无需额外配置升压设备，降低轻载场景下的电路部署成本。
- 采用超紧凑型设计，机身尺寸仅约 80mm×40mm×120mm，支持导轨式密集安装，1 米长的标准导轨可同时安装 18 台以上，大幅节省电气控制柜空间，适配微型自动化设备的密集布局需求。
- 能与同品牌 QS 系列小功率伺服电机（如 QS1M01AA）无缝兼容，支持 “参数自动匹配” 功能，通电后可快速识别电机型号并加载预设控制参数，避免人工调试误差，调试时间缩短至 15 分钟以内。
- 支持位置、速度两种核心控制模式，位置控制时脉冲输入频率达 200kHz，配合电子齿轮细分功能，可实现微米级定位精度，满足微型元件装配时的高精度位移需求（定位误差≤±0.005mm）。
- 内置过流、过压、过载、欠压、过热五种基础保护功能，故障发生时会点亮面板红色报警灯，并通过通讯接口上传故障代码，工作人员可通过配套简易诊断软件快速查询故障原因，停机排查时间缩短至 5 分钟以内。
SANYO DENKI QS1A15AA03G01T伺服放大器 英文资料：
SANYO DENKI QS1A15AA03G01T is a small servo amplifier with a rated output current of 1.5A, suitable for low-power servo motors ranging from 0.1kW-0.2kW. It focuses on lightweight and precise control, and is suitable for light load scenarios such as micro robotic arms, electronic component sorting equipment, laboratory automation instruments, etc. that require drive volume and accuracy.
10-15 units of this amplifier can achieve collaborative control through RS485 communication bus, driving multi axis micro execution components, such as the probe positioning mechanism of electronic chip testing lines, which can synchronize the movement trajectory and contact force of each probe, ensuring precise docking between the probe and chip pins, and increasing the test pass rate to over 99.5%.
Suitable for single-phase 100V-120V industrial standard power supply, with an allowable range of input voltage fluctuation of ± 10% (90V-132V), compatible with low-voltage power supply environments such as small workshops and laboratories, without the need for additional boost equipment, reducing circuit deployment costs in light load scenarios.
Adopting an ultra compact design, the body size is only about 80mm × 40mm × 120mm, supporting rail type dense installation. A 1-meter-long standard rail can install more than 18 units at the same time, greatly saving electrical control cabinet space and adapting to the dense layout requirements of micro automation equipment.
It is seamlessly compatible with QS series low-power servo motors of the same brand (such as QS1M01AA), supports the "automatic parameter matching" function, and can quickly identify the motor model and load preset control parameters after power on, avoiding manual debugging errors and reducing debugging time to less than 15 minutes.
Supports two core control modes: position and speed. During position control, the pulse input frequency reaches 200kHz. With the electronic gear subdivision function, it can achieve micrometer level positioning accuracy and meet the high-precision displacement requirements during micro component assembly (positioning error ≤ ± 0.005mm).
Built in five basic protection functions: overcurrent, overvoltage, overload, undervoltage, and overheating. When a fault occurs, the red alarm light on the panel will light up and the fault code will be uploaded through the communication interface. The staff can quickly query the cause of the fault through the supporting simple diagnostic software, and the downtime for troubleshooting can be shortened to less than 5 minutes.

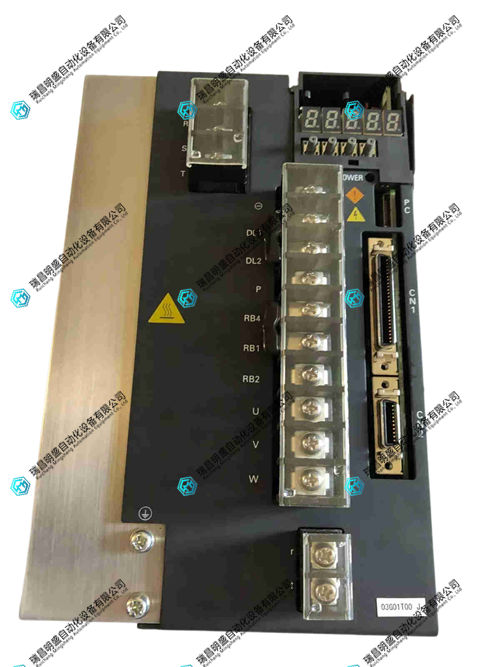

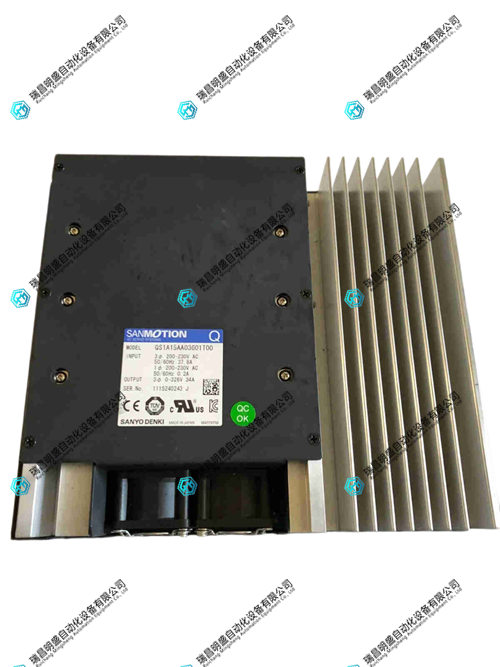

SANYO DENKI QS1A15AA03G01T伺服放大器 产品展示
产品视频
